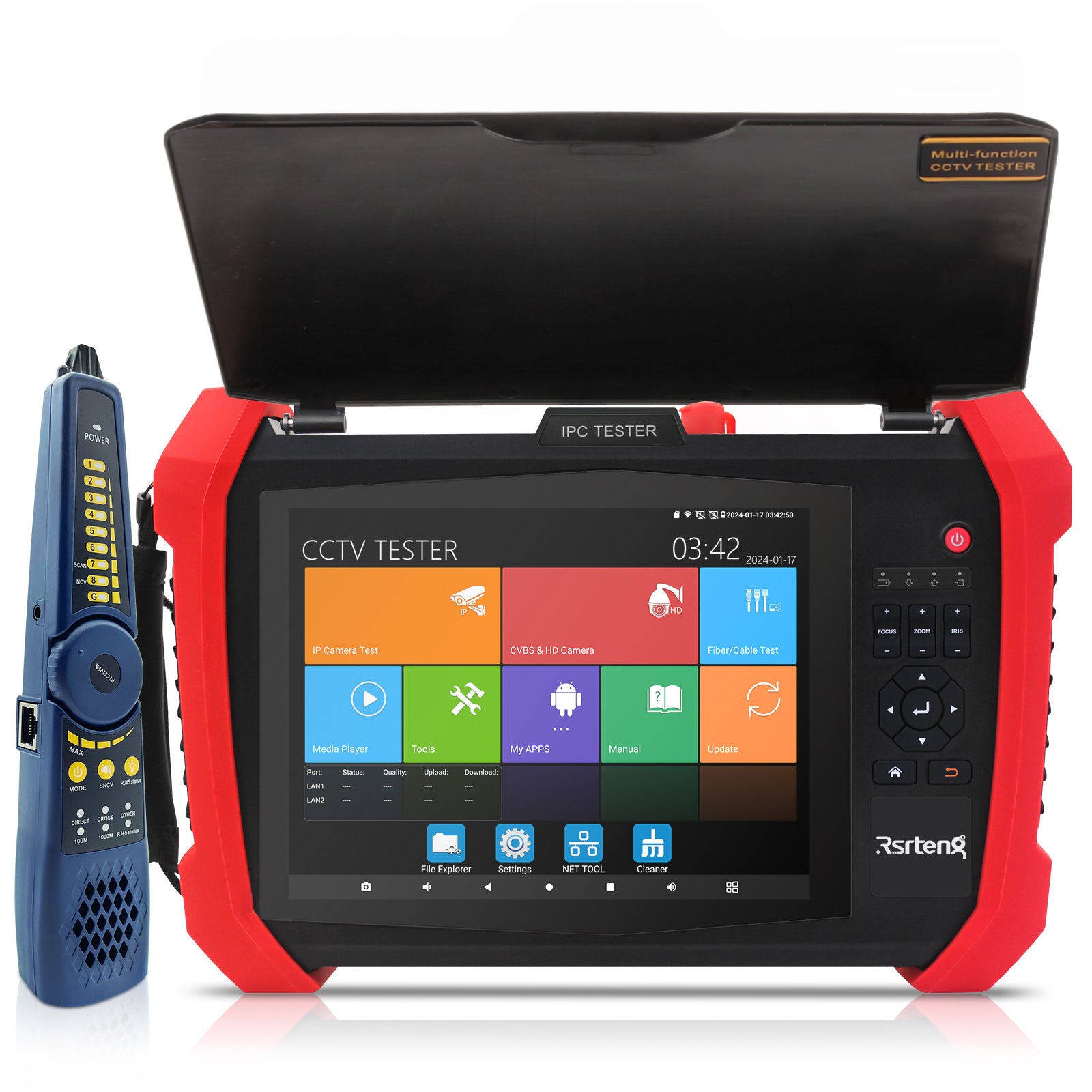

Rsrteng H20 CCTV tester Support max 8K 32MP 24FPS IP camera test, Support ONVIF protocol.
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.
Support standard POE,POE+,Hi-POE(POE++, max power 90W. Supports standard POE cameras and high-power PTZ speed dome camera with POE function).
Dual Gigabit Ethernet ports, RJ45, 10/100/1000M adaptive interface.
View real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch.
Android 11.0 supports most app downloads.
| Brand | Rsrteng |
| Model | IPC-H20 |
| Operating system | Android 11.0 |

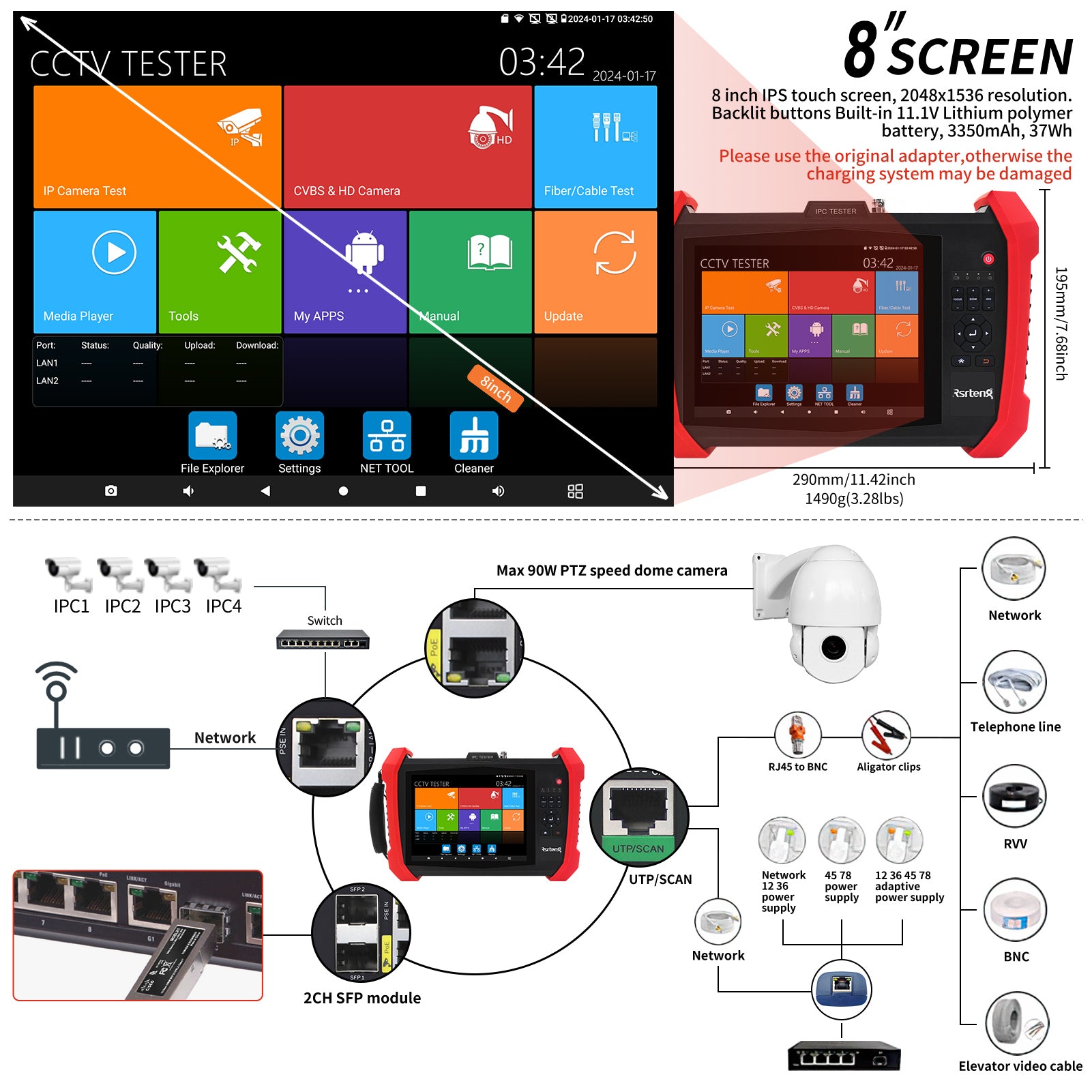

| Display | 8 inch IPS touch screen, 2048x1536 resolution, Backlit buttons |
| Operation method | Touch screen + keys |
| CPU | 2.0GHz, 4 cores |
| RAM(DDR) | 2GB |
| FLASH(EMMC) | 16GB |

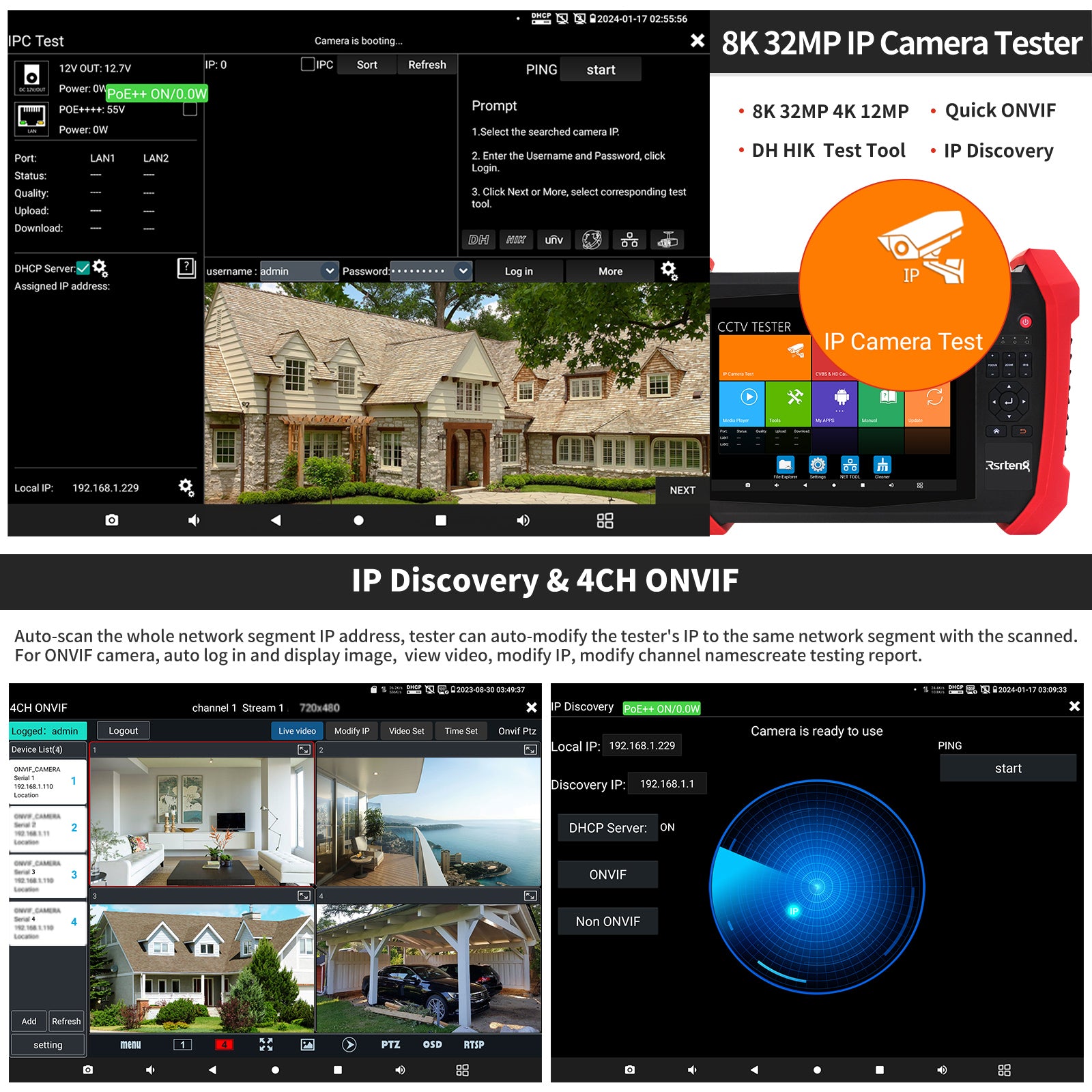

| IP camera test | Support max 8K 32MP 24FPS IP camera test, Support ONVIF protocol |
| IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | |
| 4CH Onvif camera testing | |
| Rapid Video: Auto view the video, create testing report | |
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video, open wide dynamic mode. Factory restore, etc. | |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. | |
| Coaxial HD camera test | TVI camera test: N/A |
| CVI camera test:N/A | |
| AHD camera test: N/A | |
| SDI camera test: N/A | |
| Coaxial test | 1 channel BNC input & 1 channel BNC CVBS looped output, NTSC/PAL (Auto adapt) |
| Analog video level meter: N/A | |
| CVBS color bar test, PAL/NTSC | |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |

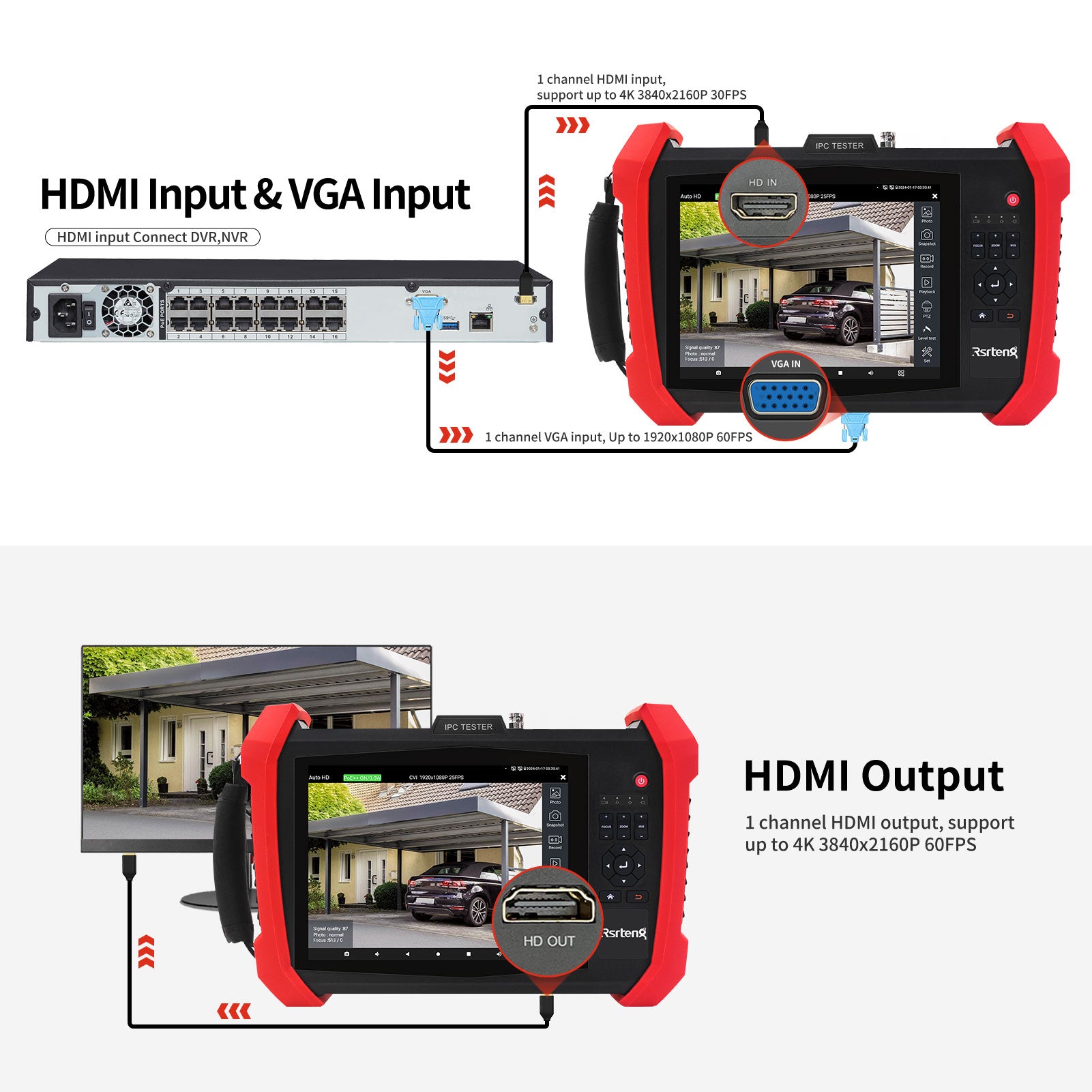

| HDMI & VGA | 1 channel HDMI input, support up to 4K 3840x2160P 30FPS |
| 1 channel HDMI output, support up to 4K 3840x2160P 60FPS | |
| 1 channel VGA input, Up to 1920x1080P 60FPS | |
| Zoom Image | 4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |

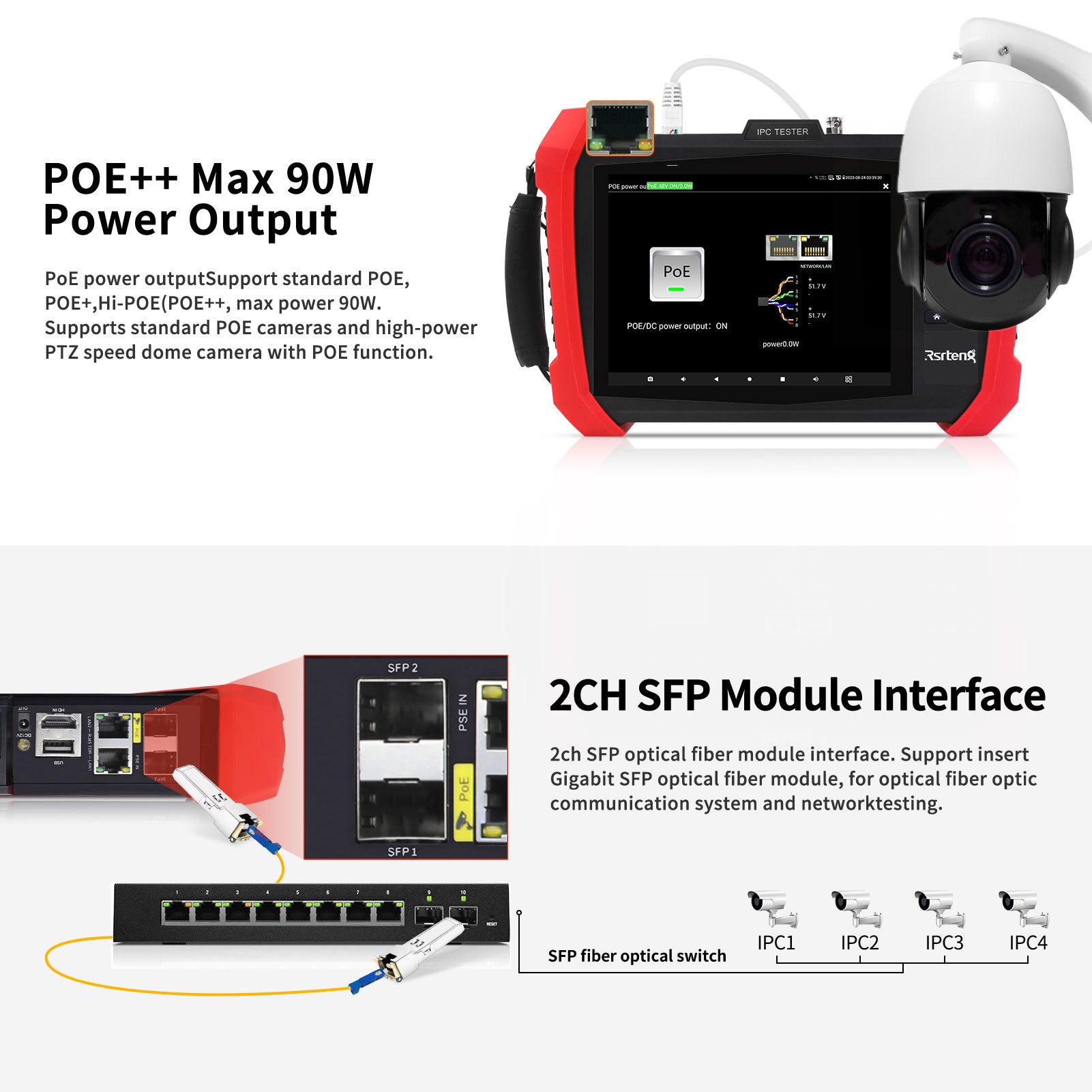

| Power output | PoE power output: Support standard POE,POE+,Hi-POE(POE++, max power 90W. Supports standard POE cameras and high-power PTZ speed dome camera with POE function) |
| DC24V/2A power output | |
| DC12V/3A power output | |
| DC5V/2A power output, powered USB canera and as power bank, and connect USB and Mouse, | |
| Cable test | TDR cable test: N/A |

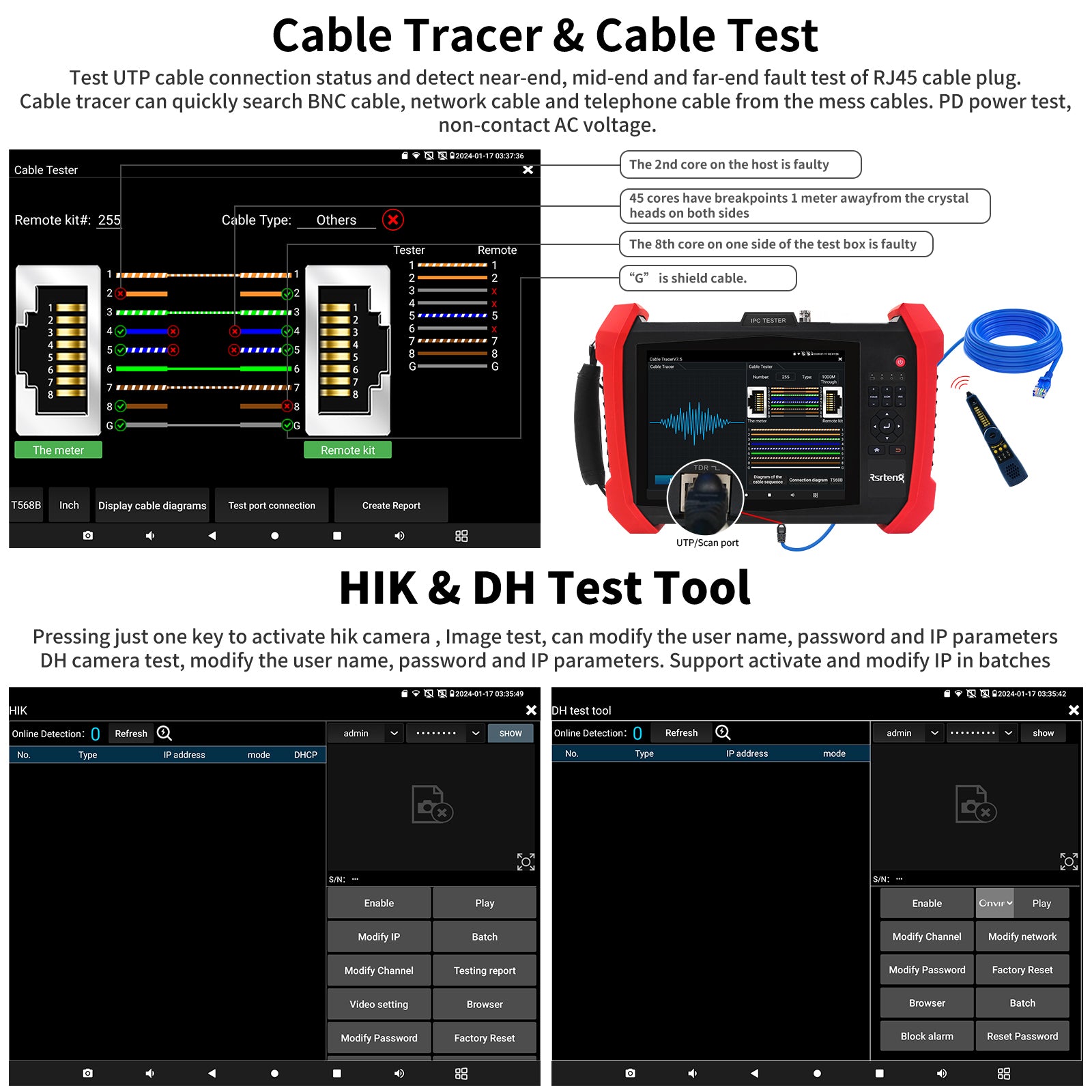

| Cable tracer: Contains a digital cable tracer. Search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector: voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V;CE |
|
| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug | |
| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). | |
| Cable length test: Measure the disconnection (open circuit status) position of BNC cables, network cables, telephone lines and other cables. The maximum test distance is 3KM(9842fts). Short circuit length detection is not supported. | |
| Digital Multimeter (DMM) |
N/A |
| Optical power meter (OPM) |
N/A |
| Visual fault locator (VFL) |
N/A |
| Network interface | Dual Gigabit Ethernet ports, RJ45, 10/100/1000M adaptive interface |
| Gigabit SFP interface | Dual Gigabit SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (iOS devices not supported) |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| WiFi | Built in WIFI, speeds 433Mbps, support 2.4GHz and 5GHz |
| WiFi analyzer | Built-in WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. |
| Built-in camera | N/A |
| Laser Distance meter | N/A |
| TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (iOS devices not supported) |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |

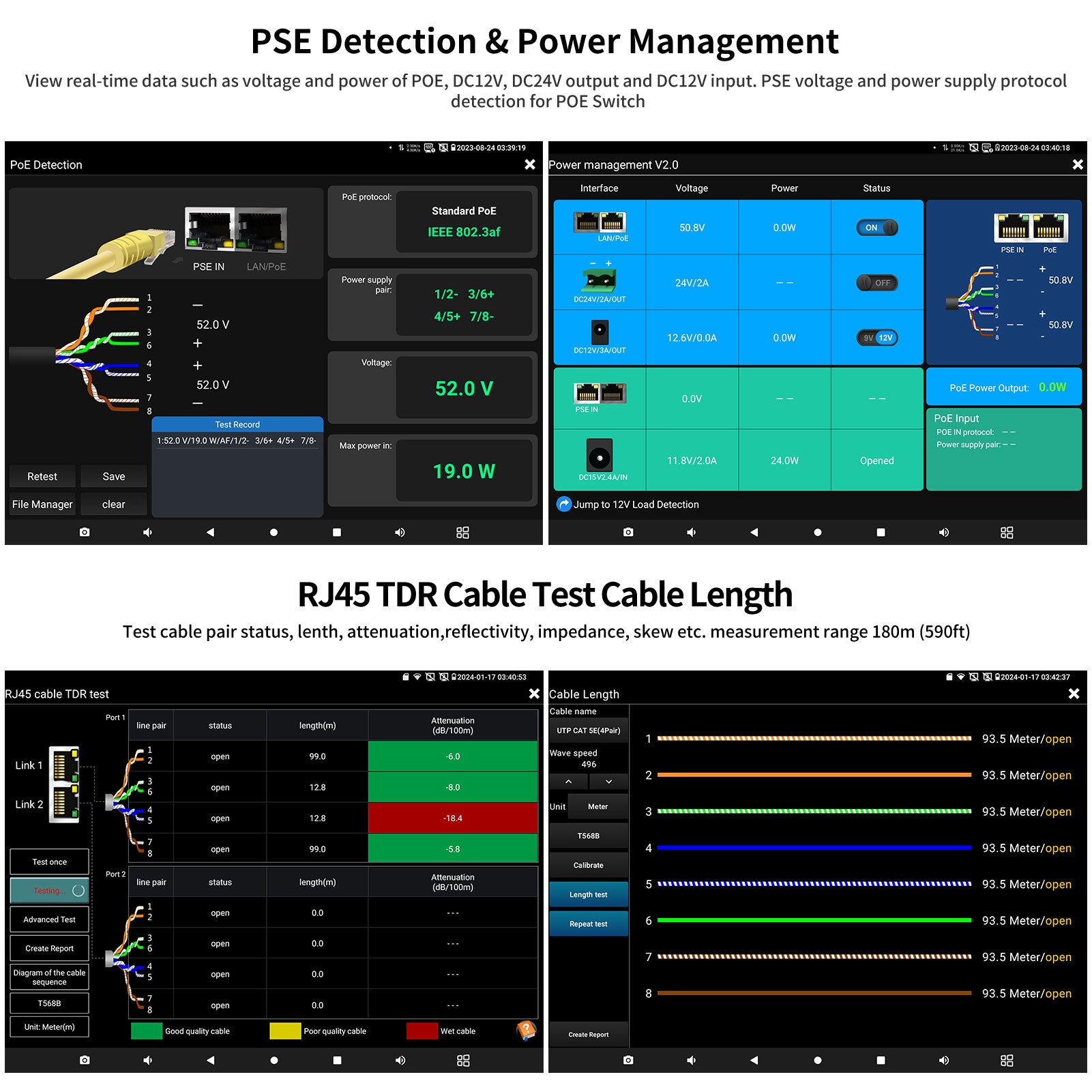

| Power management V2.0 | View real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface |
| External power supply | DC15V/2.4A |
| Battery | Built-in 11.1V Lithium polymer battery, 3350mAh, 37Wh |
| Rechargeable | After fast charging 3.5 hours, normal working time 7 hours(Without supplying power to other devices) |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Auto off | 5 to 30 (mins) |
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity | 30% to 90% |
| Dimension/Weight |
Tester: 290x195x50mm(11.42x7.68x1.97inch) / 1490g(3.28lbs) Package: 340x300x95mm(13.39x11.81x3.74inch) / 2850g(6.28lbs) |
