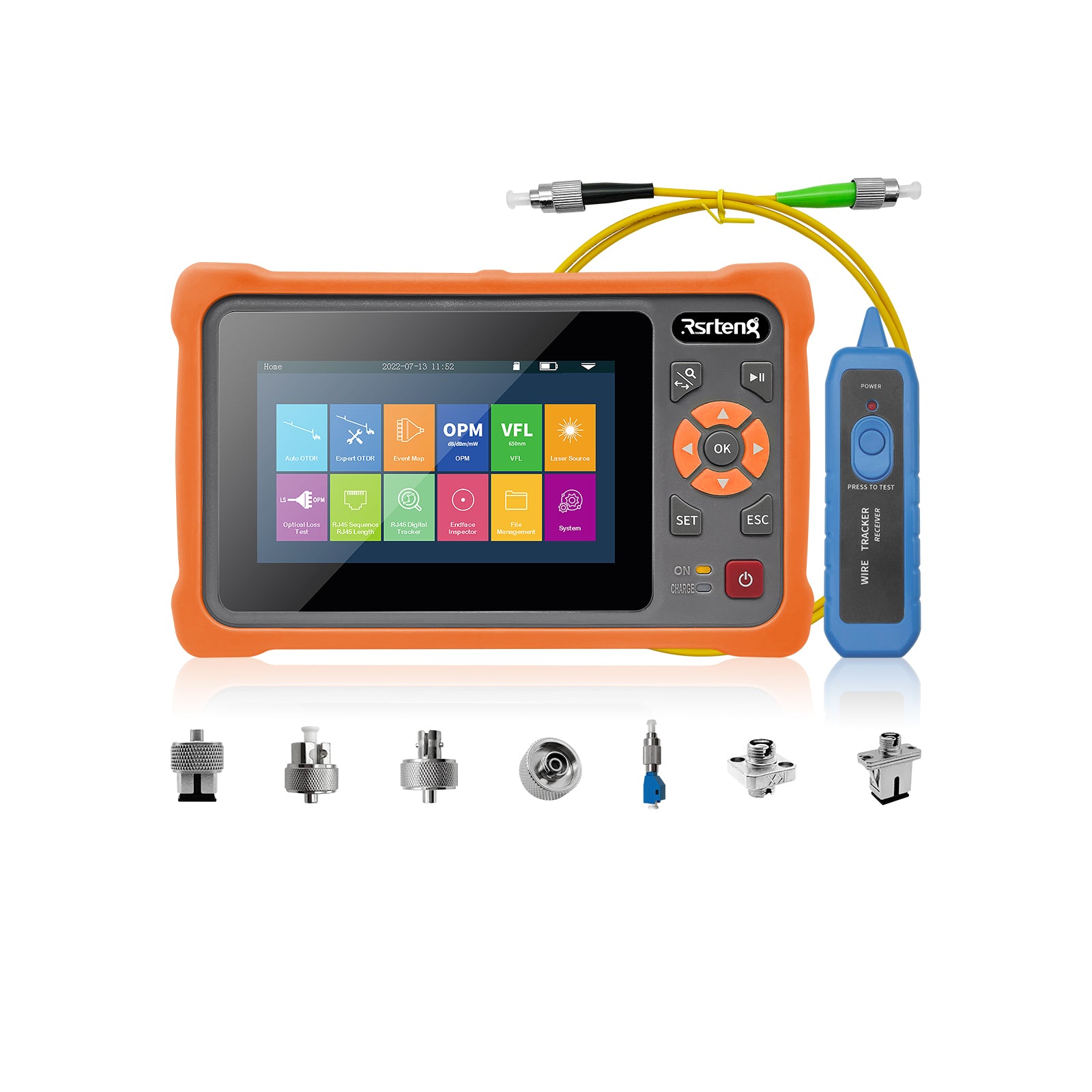

Rsrteng RSO-4000D Single Mode Mini OTDR.It is an essential tool for technicians in the field of measuring fiber parameters. Widely used in FTTX, optical network engineering construction, maintenance and repair testing, optical fiber cable production measurement,etc.

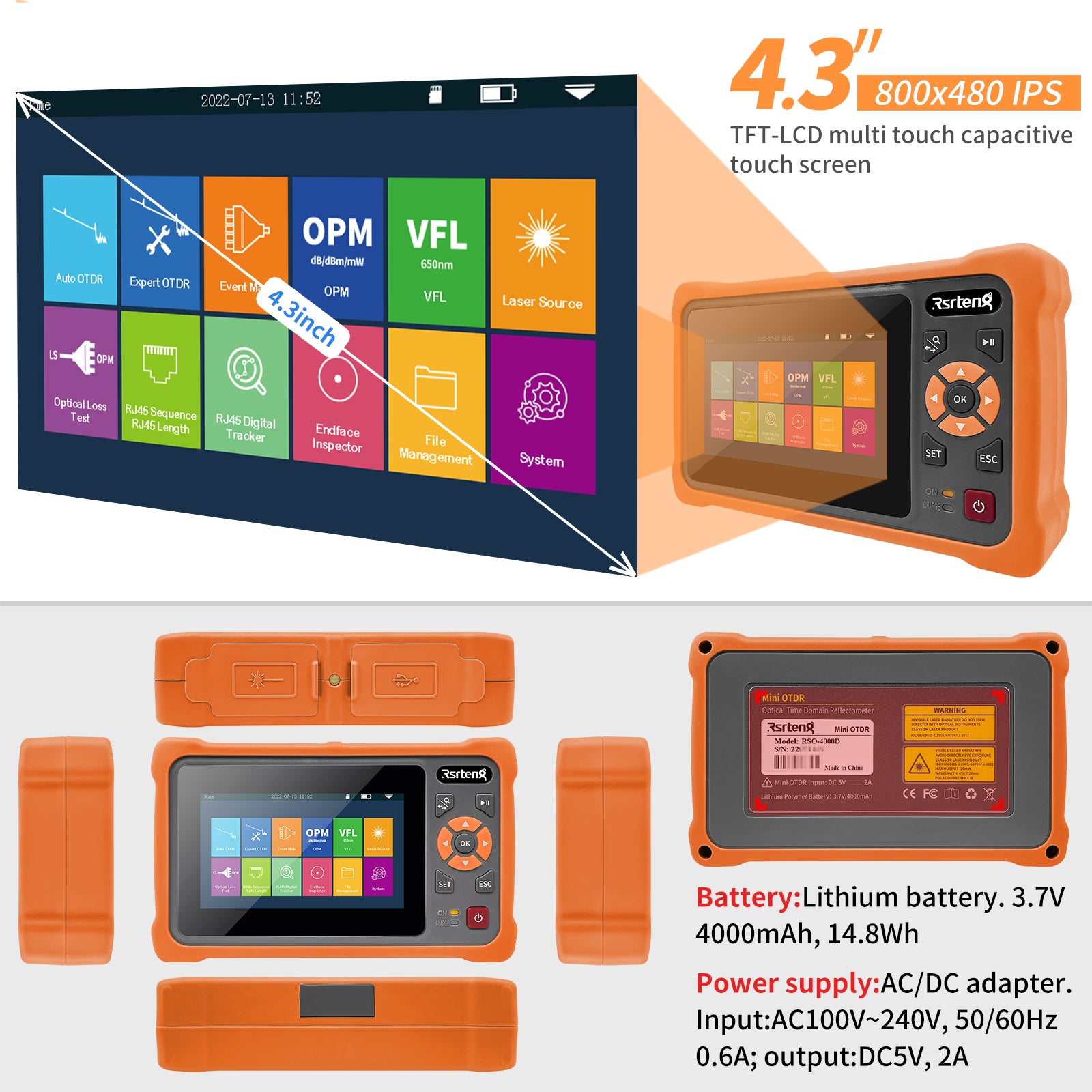

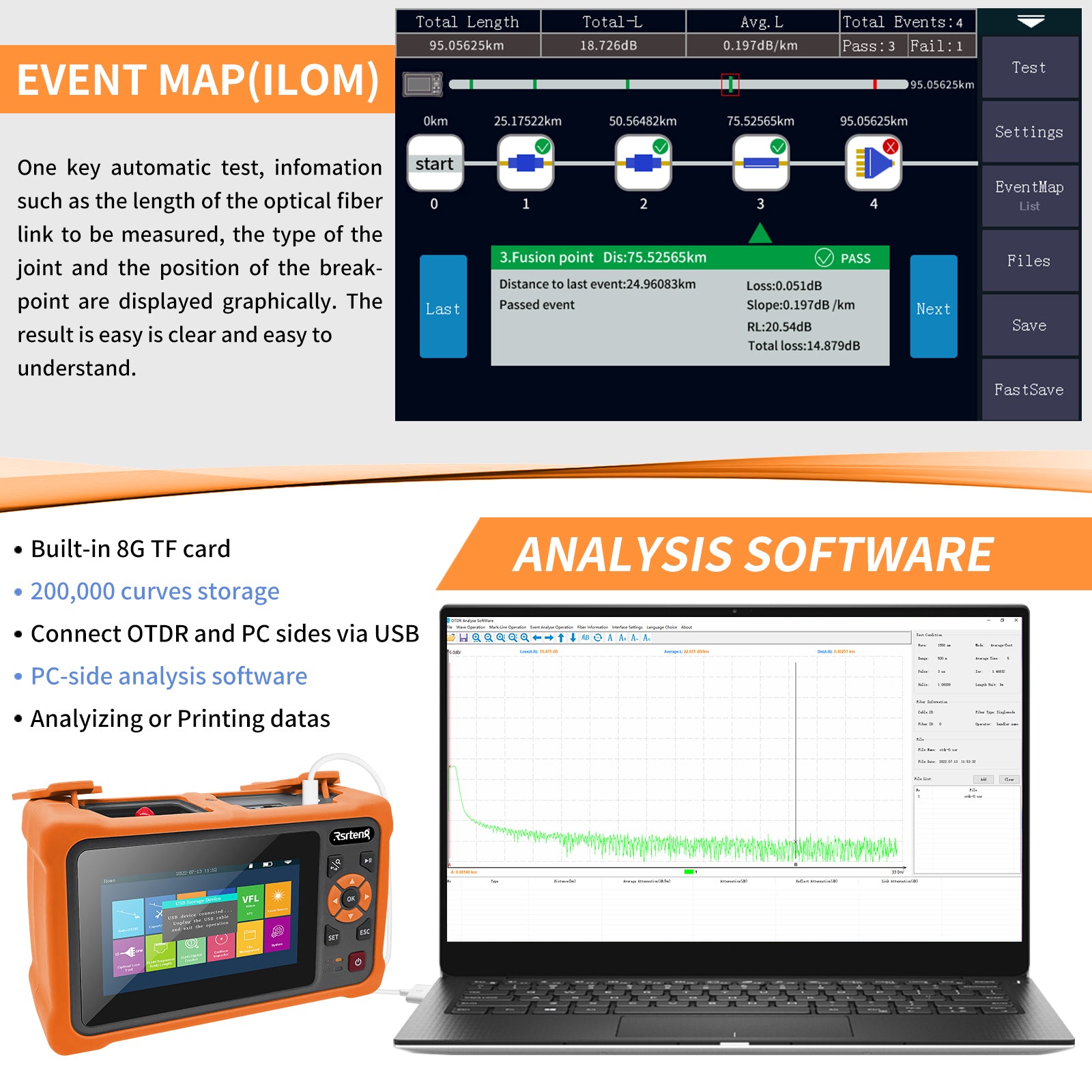

RSO-4000D OTDR adopts 4.3 inch 800x480 IPS TFT-LCD multi touch capacitive touch screen, so the operation of measuring various parameters of the optical fiber becomes simple and fast. Support wavelength 1310nm/1550nm, maximum dynamic range 26dB/24dB. Integrates 12 functions, such as auto OTDR, expert OTDR, event map(iLOM), OPM, VFL, OLS, RJ45 cable tracker and "computer level" file management to meet various test requirements indifferent occasions. RJ45 cable tracker of digital radar, stronger anti-jamming ability. Support RJ45 cable sequence/ cable length test, up to 300m (984fts). Moreover,include 8G TF card memory, and can store more than 200,000 curves; it is equipped with 3.7V/4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
|
Overview |
|
|
Brand |
Rsrteng |
|
Model |
RSO-4000D |
|
operating system |
Embedded OS |
|
Display |
4.3 inch 800x480 IPS TFT-LCD multi touch capacitive touch screen |
|
OTDR |
|
|
Type |
Single Mode G.652 SM |
|
Wavelength |
1310/1550nm |
|
Dynamic Range |
26dB/24dB |
|
Live Test |
N/A |
|
Event Blind Zone |
2.5m |
|
ATT Blind Zone |
8m |
|
Test Range |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
|
Test Unit |
km, kft, mi |
|
Pulse Width |
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs |
|
Ranging Accuracy |
±（1m+Sample interval+0.005％×Test distance） |
|
Linearity |
≤0.05dB/dB |
|
Sample Points |
16k~128k |
|
Sample Resolution |
0.05m~8m |
|
Loss Resolution |
0.001dB |
|
Loss Threshold |
0.20dB |
|
Range Resolution |
0.001m |
|
Refractive Index |
1.00000~2.00000 |
|
Reflection Accuracy |
±3dB |
|
File Format |
SOR Standard File Format |
|
Loss Analysis |
4-point method /5-point method |
|
Laser Safety Level |
Class Ⅱ |
|

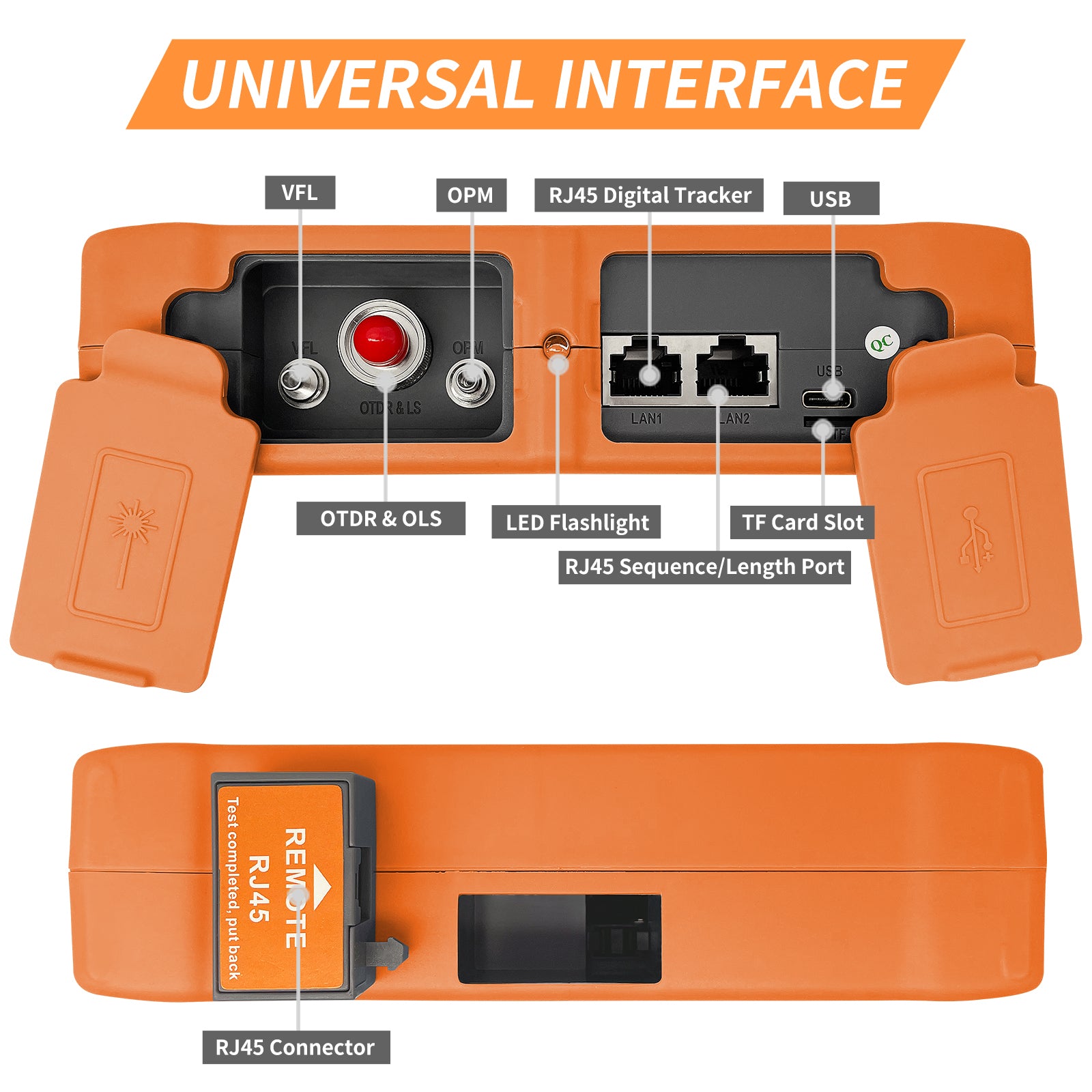

Connector |

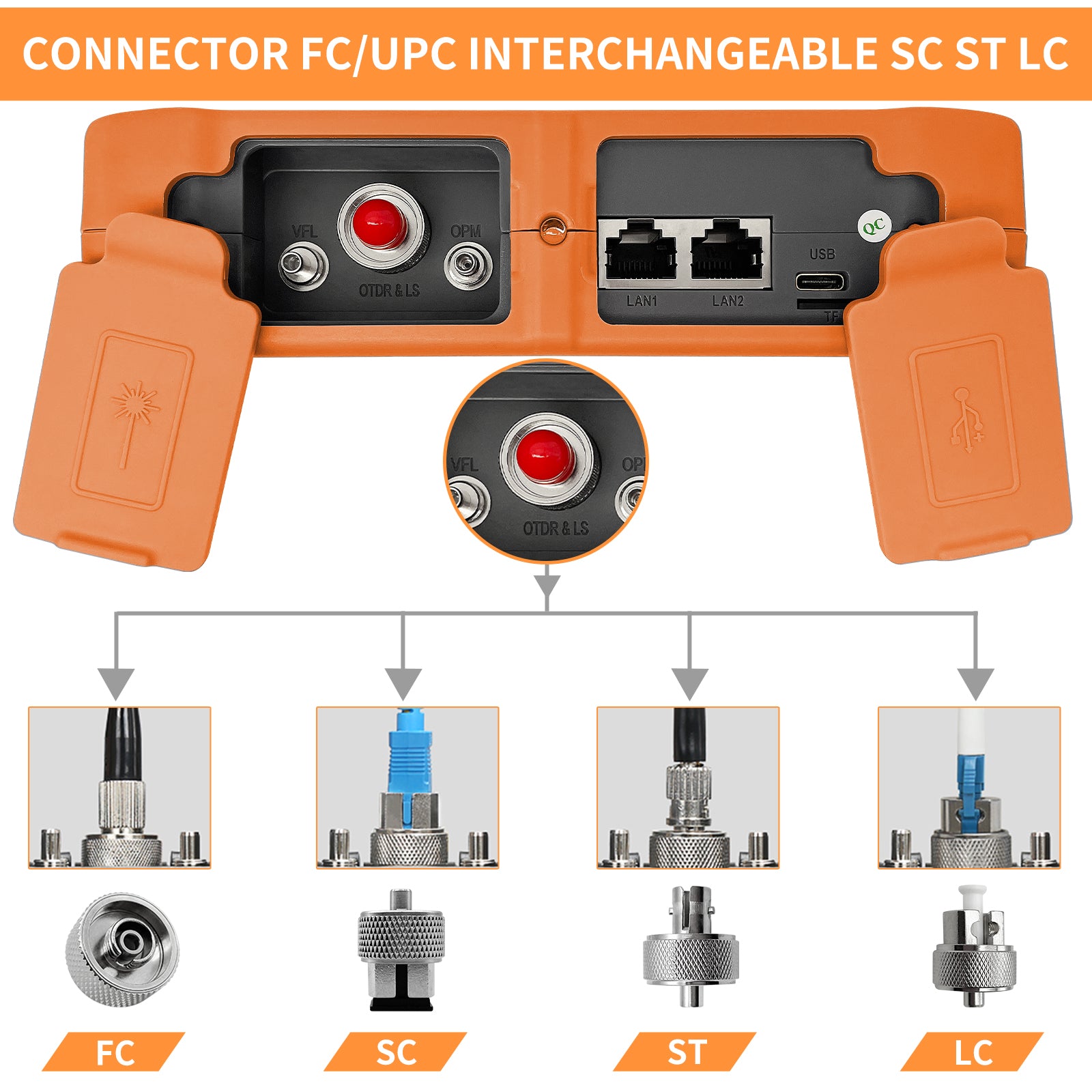

FC/UPC(Interchangeable SC/ST) |
|
Refresh Rate |
3Hz(Typ.) |
|
Multitasking |
Support |
|

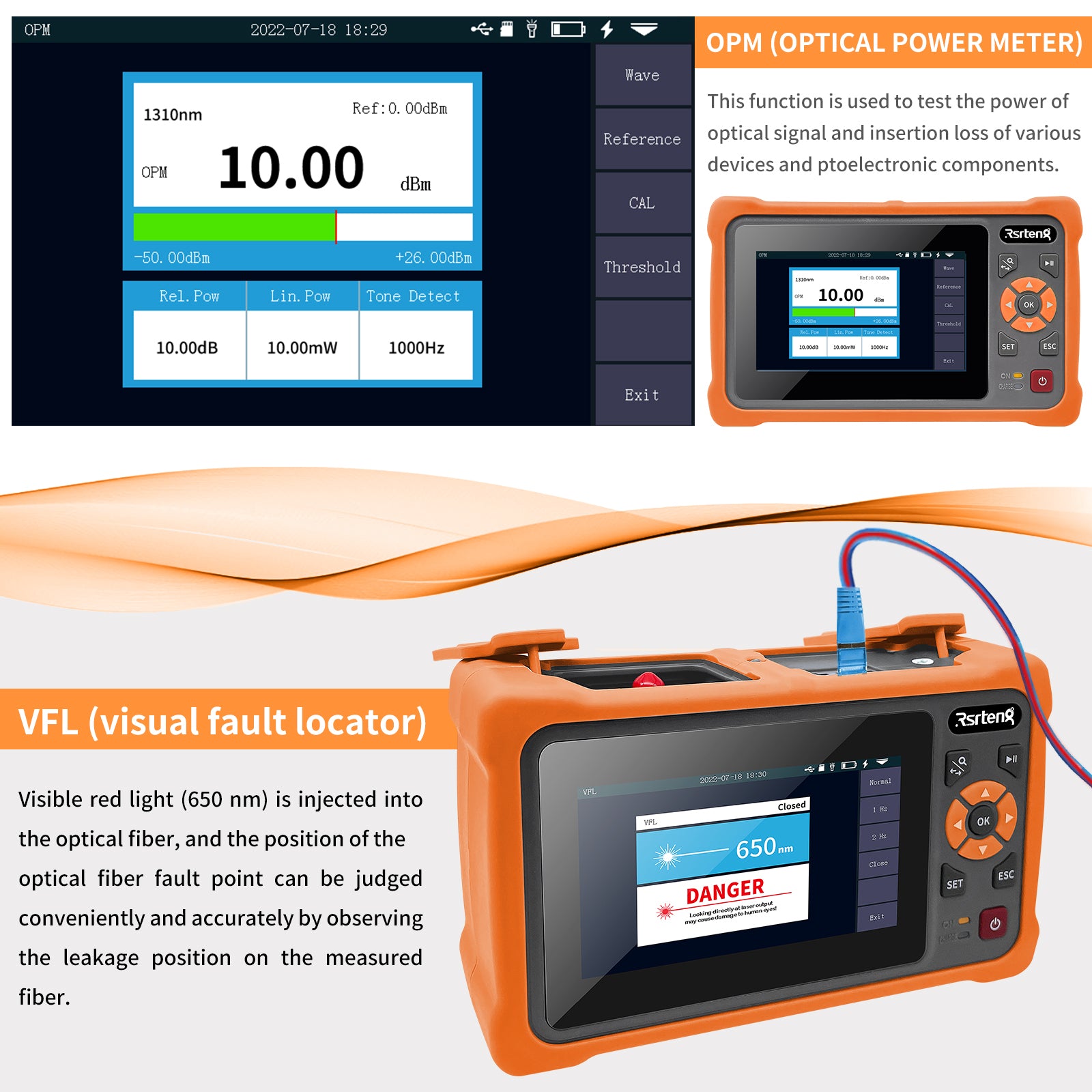

OPM |
|
|
Wave Range |
800~1700nm |
|
Calibration Wave |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Test Range |
-70~+10dBm(optional)/-50~+26dBm(standard) |
|
Resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Frequency Identification |
CW/270/330/1kHz/2kHz |
|
Connector |
Universal FC/SC/ST |
|
Wave Recognition |
Support(use inner LS) |
|
VFL |
|
|
Wavelength |
650nm±20nm |
|
Output Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
FC/UPC(Interchangeable SC/ST) |
|
Laser Safety Level |
Class Ⅲ |
|
LS |
|
|
Wavelength |
Consistent with OTDR |
|
Laser Type |
FP-LD |
|
Power |
≥-5dBm(adjustable) |
|
Stability |
CW, ±0.5dB/15min(after 15min of preheating) |
|
Connector |
FC/UPC(Interchangeable SC/ST) |
|
Mode |
CW/270/330/1k/2kHz |
|
Wave Recognition |
Support |
|

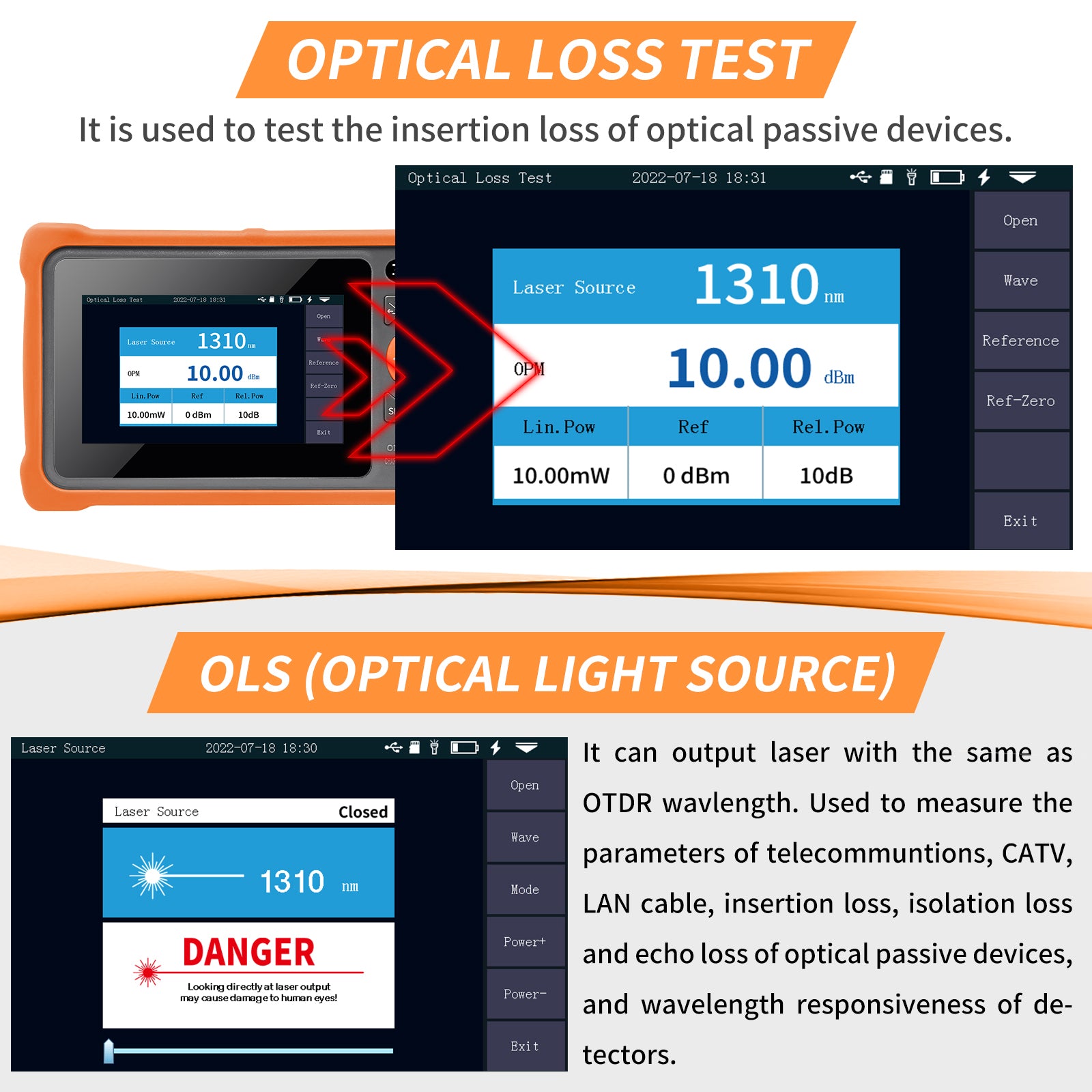

Optical Loss Test |
|
|
Wavelength |
Consistent with LS |
|
IL Test |
Support |
|
RJ45 Cable Tracking |
|
|
Mode |
Digital Tracking |
|
Distance |
≤300m(984fts) |
|
Online/Line Pair Tracking |
Support |
|
Others |
|
|
Power supply |
AC/DC adapter. Input:AC100V~240V, 50/60Hz,0.6A; output:DC5V, 2A |
|
Battery |
Lithium battery. 3.7V, 4000mAh, 14.8Wh |
|
Battery Working |
Continuous test >12h |
|
Data Storage |
8GB TF card |
|
Data Interface |
USB type C |
|
Operation language |
English, Russian, Spanish, French, Portuguese, Vietnamese, Hindi, Arabic optional |
|
Working/Storage Temperature |
-10 to +50℃(14 to 122℉)/-40 to +70℃(-40 to 158℉) |
|
Working Humidity |
0 to 95% Non condensing |
|

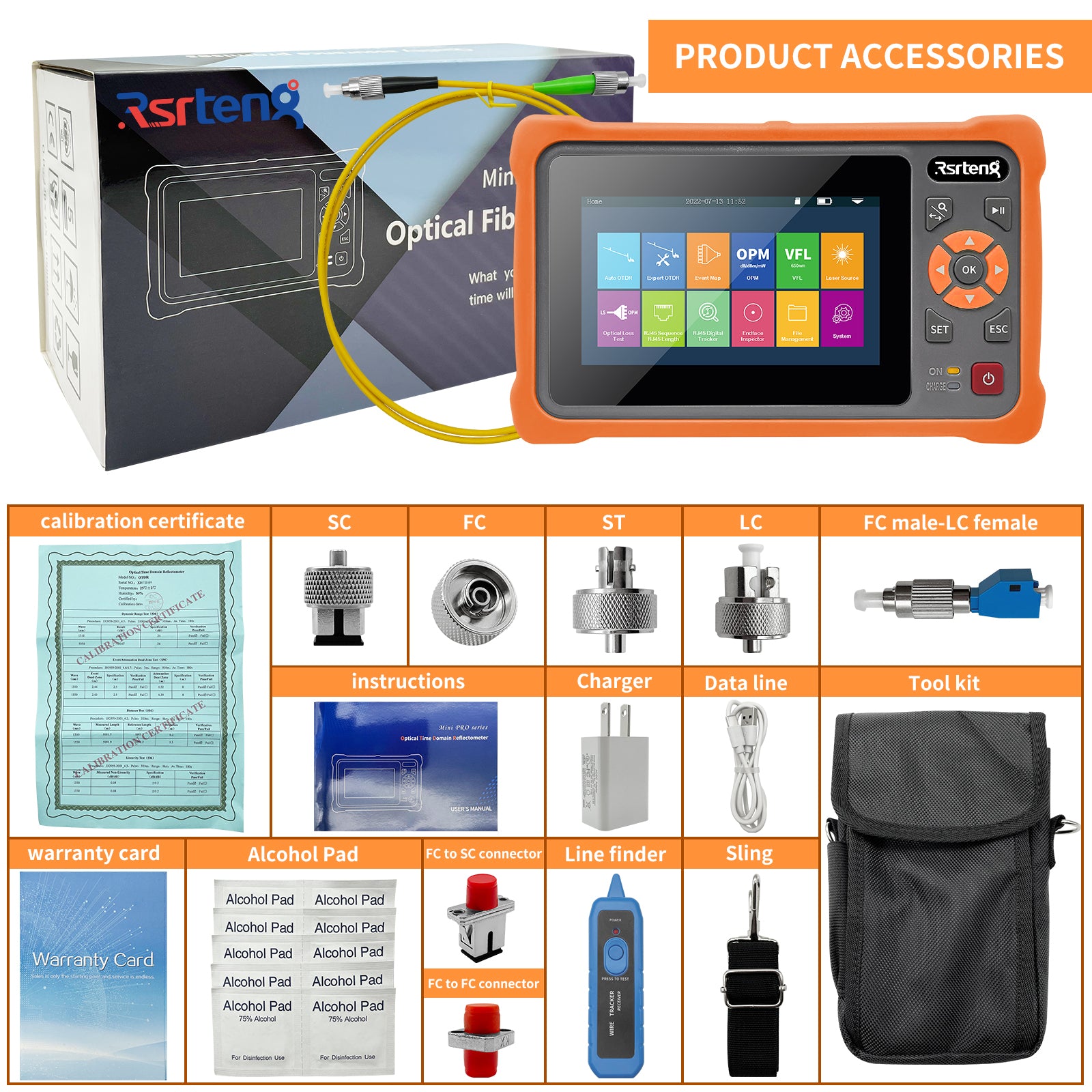

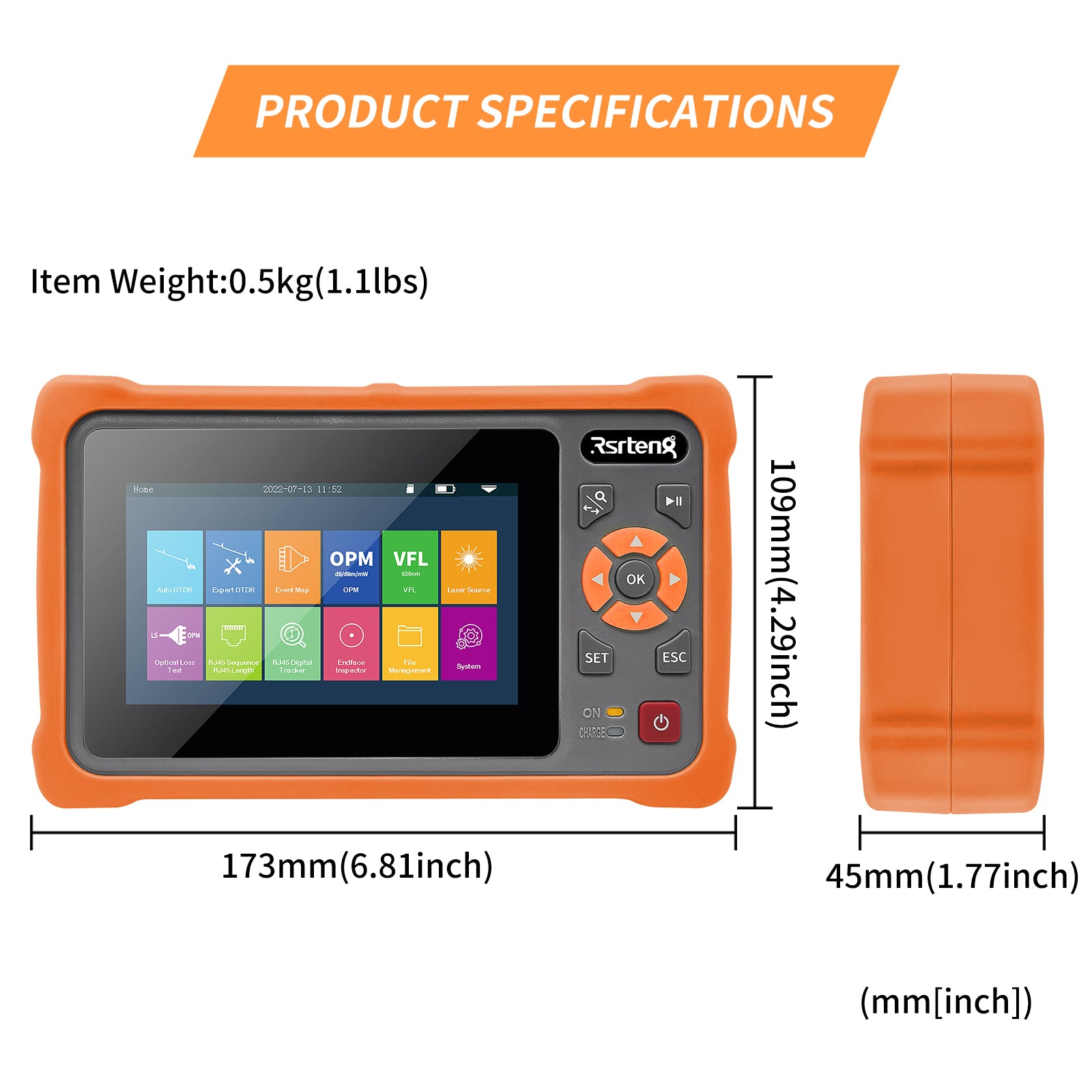

Item Weight/Dimension |
0.5kg(1.1lbs)/173x109x45mm(6.81x4.29x1.77inch) |
|
Package Weight/Dimension |
0.95kg(2.09lbs)/220x125x100mm(8.66x4.92x3.94inch) |
