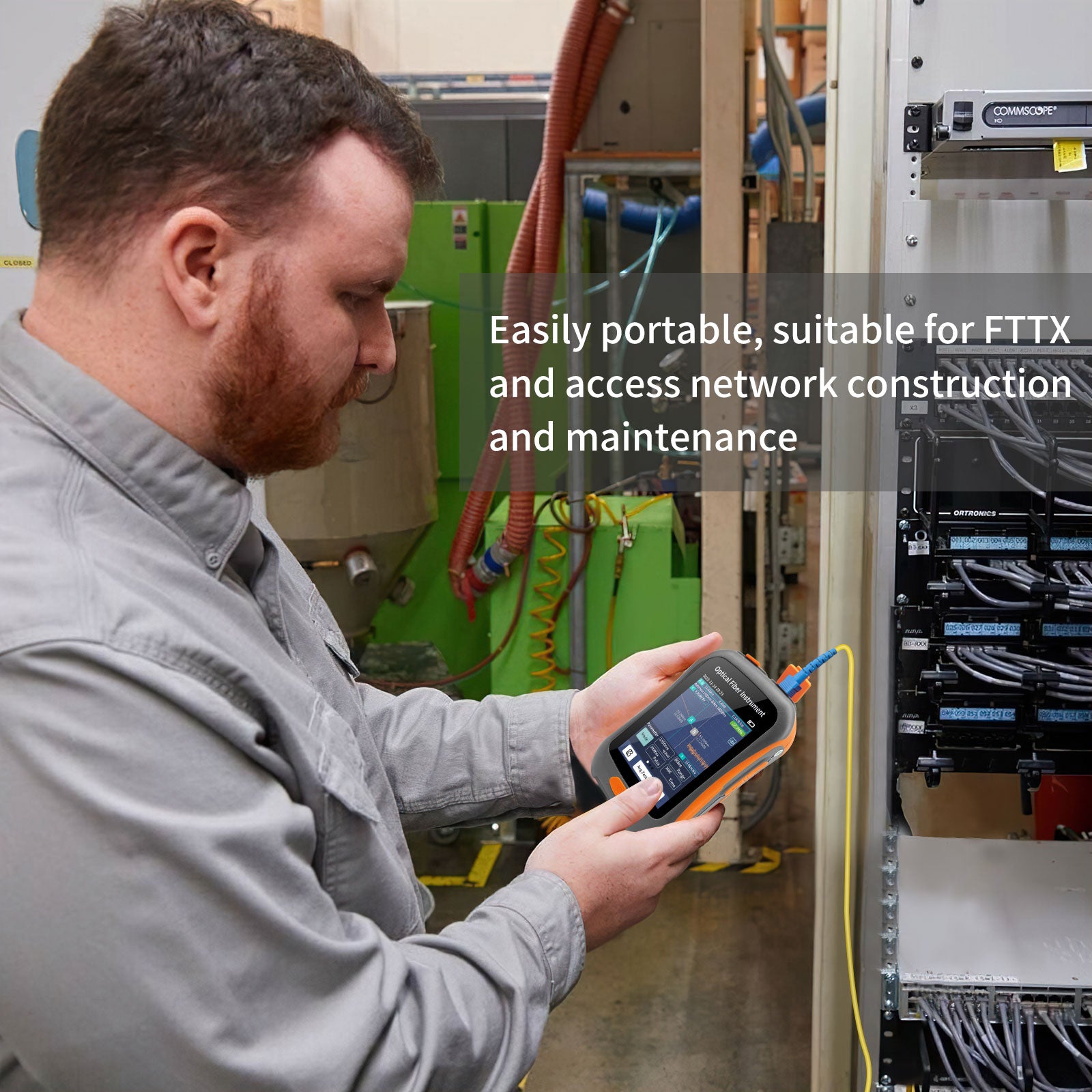

Rsrteng New in 2022 mini OTDR Cable Tester ——RSO-2800. It is an essential tool for technicians in the field of measuring fiber parameters. Widely used in FTTX, optical network engineering construction, maintenance and repair testing, optical fiber cable production measurement, etc.

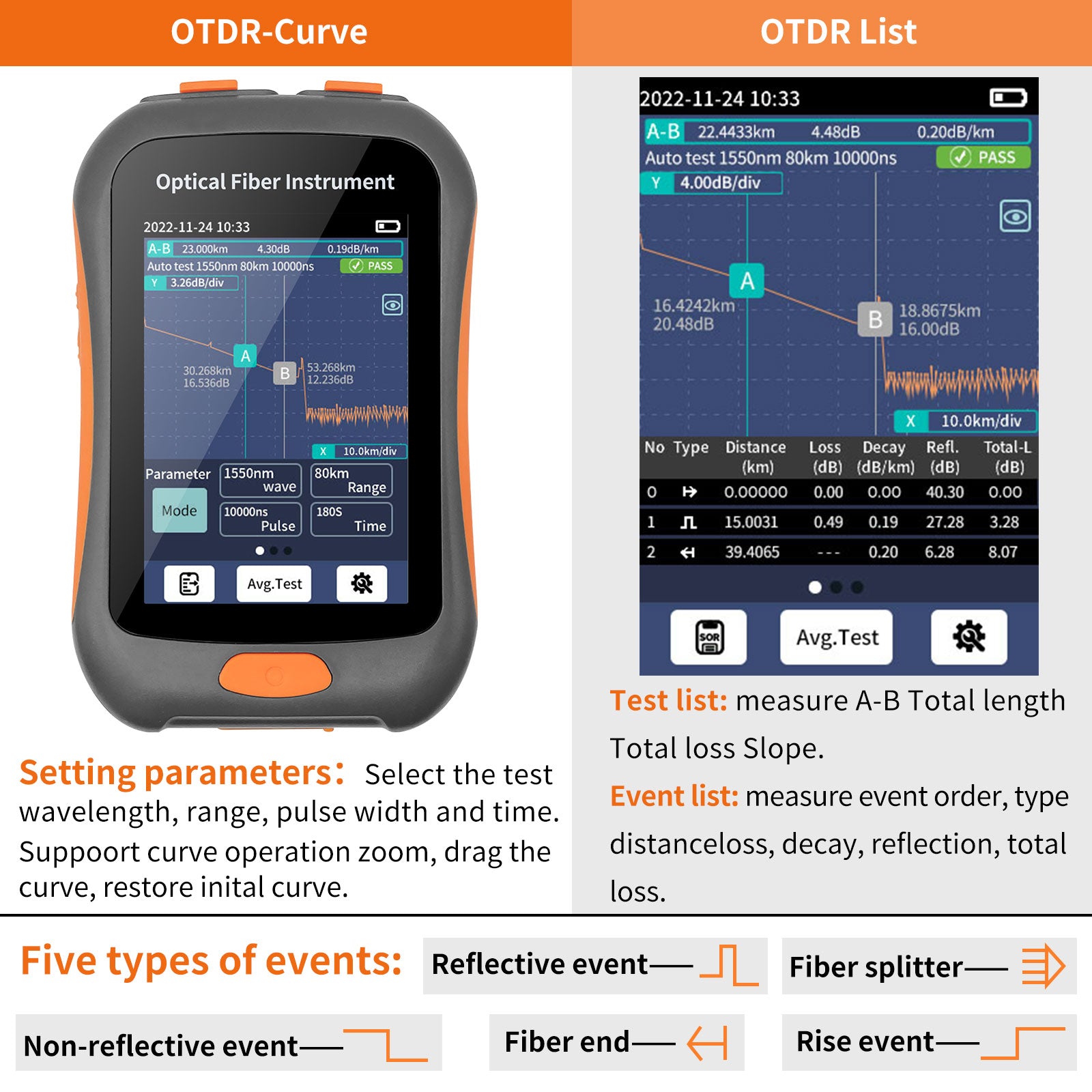

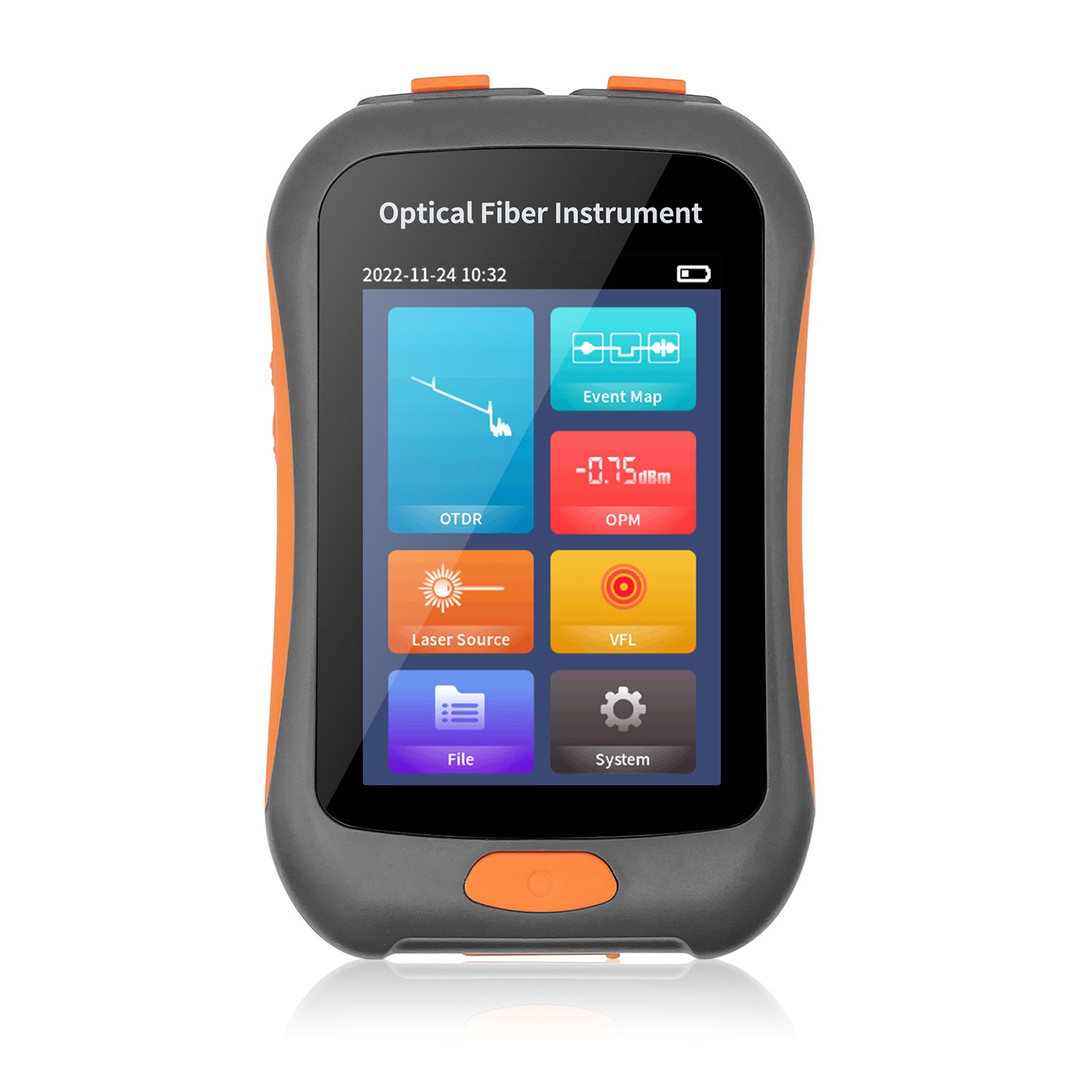

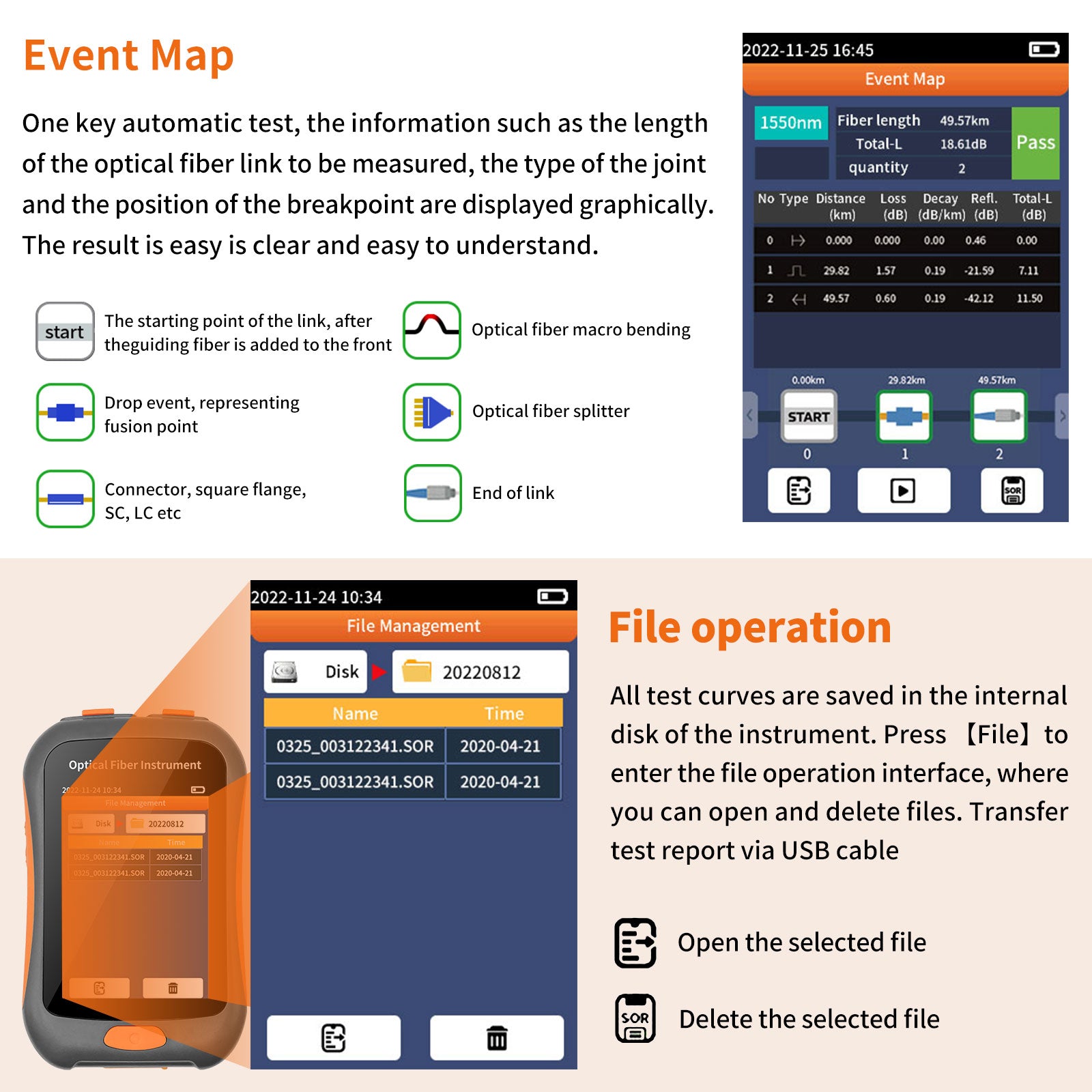

RSO-2800 OTDR adopts 3.5-inch 320x480 multi-touch touch screen, so the operation of measuring various parameters of the optical fiber becomes simple and fast. Support up to about +10dBm with optical test capability, and the maximum measurement range is 80km. Internal integration of OTDR, event map, optical power, red light, flashlight and other functions in one, to meet various test needs in different occasions. Among them, the OTDR function adopts 1550nm wavelength and built-in high-efficiency wavelength isolator. It can perform optical test on 1490nm and 1577nm links. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
| Model | RSO-2800 |
| operating system | Embedded OS |
| Display | 3.5 inch 320x480 touch screen |
| OTDR | |
| Type | Single Mode G.652 SM |

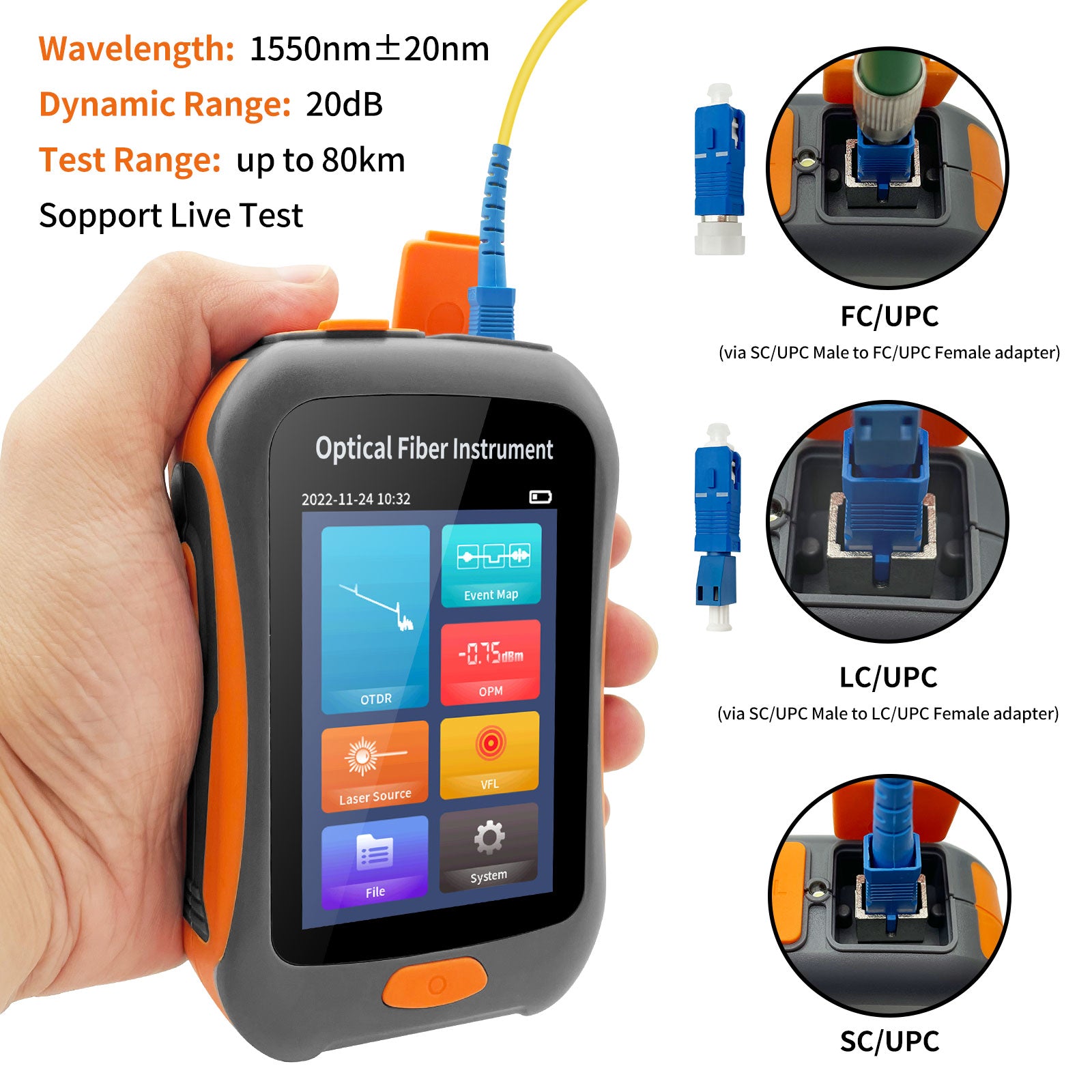

| Wavelength | 1550nm±20nm |
| Dynamic Range | 20dB |
| Live Test | Yes |
| Event Blind Zone | 2.5m |
| Attenuation Zone | 10m |
| Test Range | 100m/300m/500m/1.25km/2.5km/5km/10km/20km/40km/80km |
| Test Unit | km, kft, mi |
| Pulse Width | 5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs/20μs |
| Ranging Accuracy | ±(1m+Sample interval+0.005%×Test distance) |
| Linearity | ±0.05dB/dB |
| Max sampling points | ≥20000 |
| Max sample resolution | ≤0.03m |
| Loss Resolution | 0.01dB |
| Loss Threshold | 0.20dB |
| Range Resolution | 0.01m |
| Refractive Index | 1.00000~2.00000 |
| Reflection Accuracy | ±3dB |
| File Format | SOR Standard File Format |
| Loss Measurement Mode | 4-point method/5-point method |
| Laser Safety Level | Class Ⅱ |

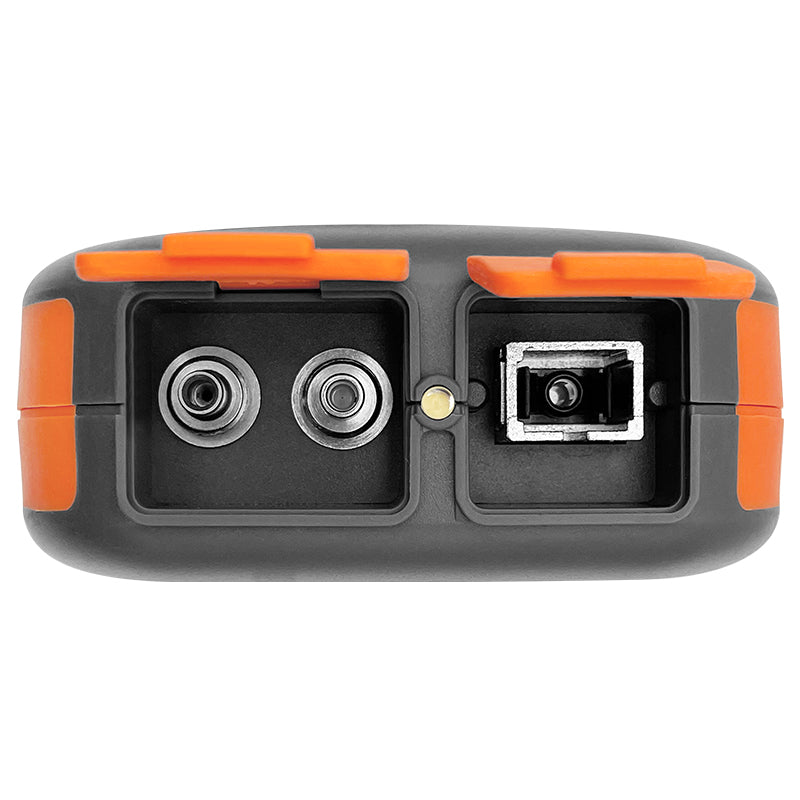

| Connector | SC/UPC |

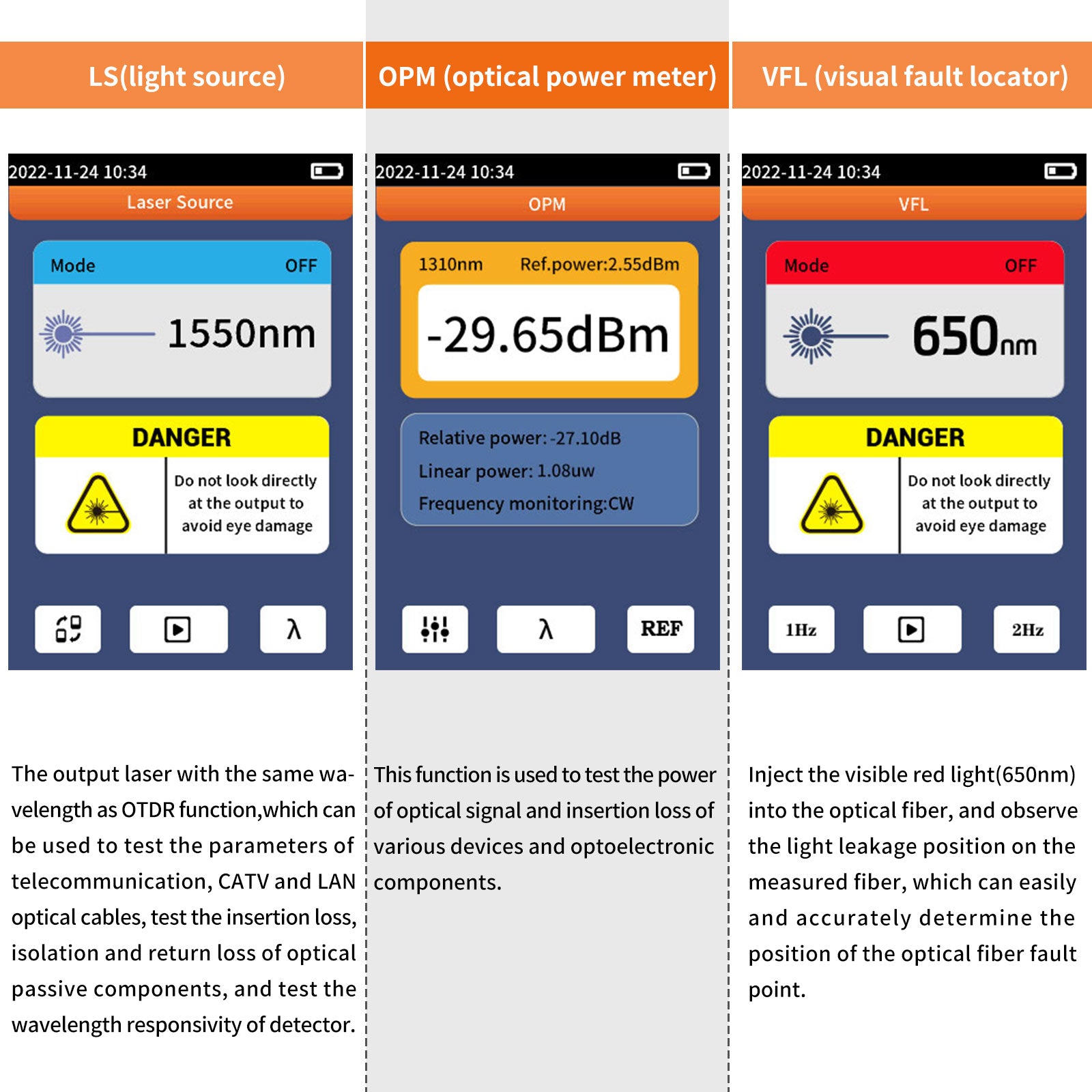

| OPM | |
| Wave Range | 800~1700nm |
| Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm |
| Test Range | -70~+6dBm(optional)/-50~+26dBm(standard) |
| Resolution | 0.01dB |
| Uncertainty | ±5% |
| Frequency Identification | CW/270Hz/330Hz/1kHz/2kHz |
| Connector | Universal FC/SC/ST |
| VFL | |
| Wavelength | 650nm±20nm |
| Output Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | Universal FC/SC/ST |
| LS | |
| Wavelength | Consistent with OTDR |
| Laser Type | FP-LD |
| Power | ≥-5dBm |
| Stability | CW, ±0.5dB/15min(tested after 15min warm-up after startup) |
| Connector | SC/UPC |
| Mode | CW/270Hz/330Hz/1kHz/2kHz |
| Others | |
| Power supply | AC/DC adapter. Input:AC100V~240V, 50/60Hz,0.6A; output:DC5V,2A |
| Battery | Lithium battery, 3.7V, 2200mAh, 8.14Wh |
| Battery Working | Standby >6h, Continuous test >4h |
| Data Storage | Internal, ≥2000 pieces |

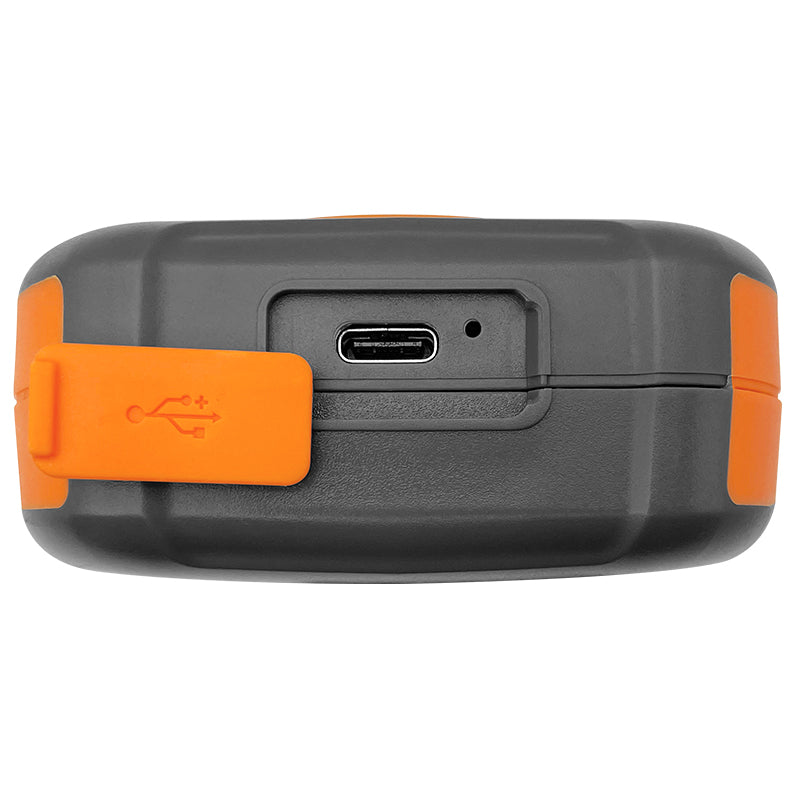

| Data Interface | USB type C |
| Operation language | English |
| Working/Storage Temperature | -10 to +50℃(14 to 122℉)/-40 to +70℃(-40 to 158℉) |
| Working Humidity | 0 to 95% Non condensing |
| Item Weight/Dimension | 0.23kg(0.51lbs)/126x80x37mm(4.96x3.15x1.46inch) |
| Package Weight/Dimension | 0.5kg(1.1lbs)/195x160x55mm(7.68x6.3x2.17inch) |
