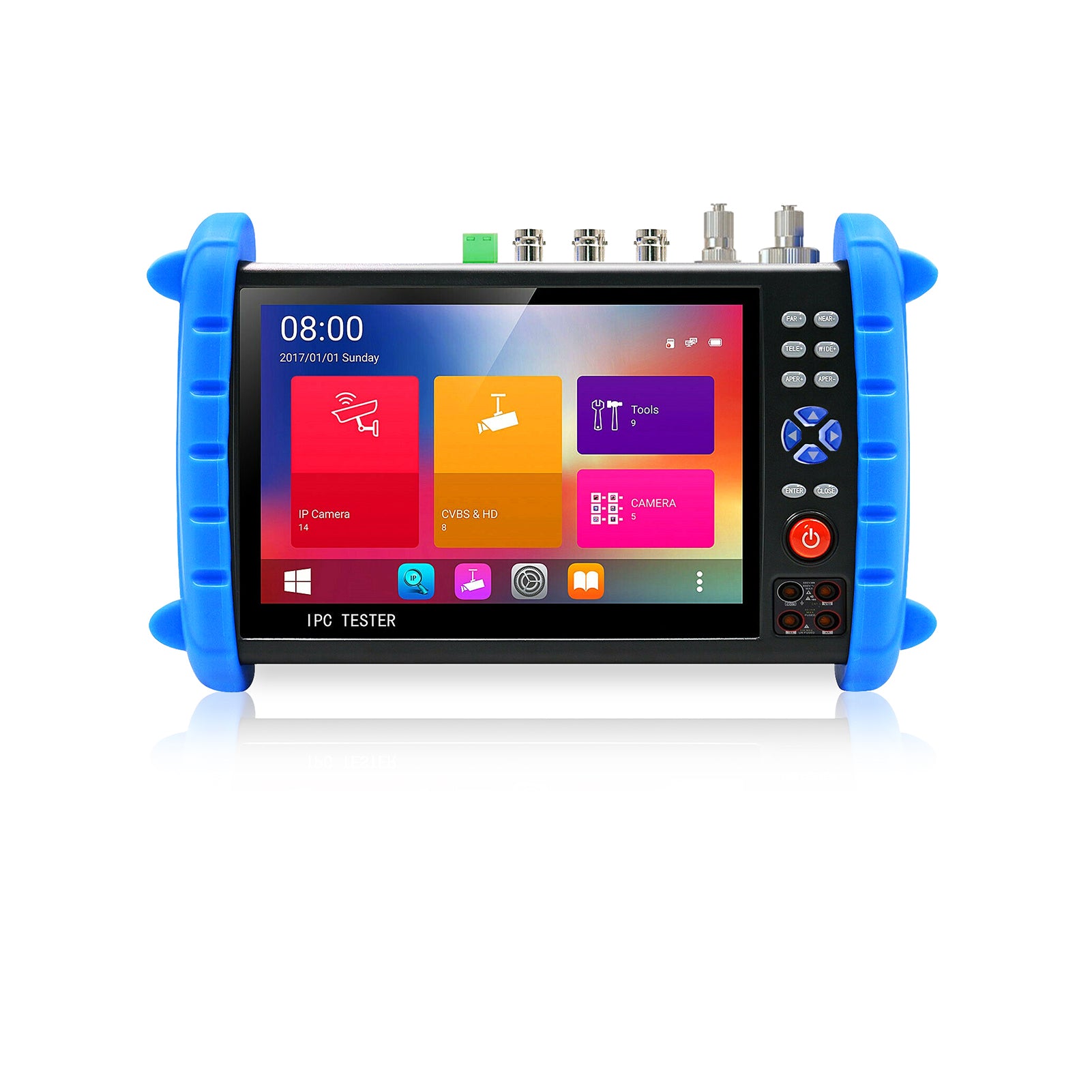

This is Rsrteng IPCXS-ACHIMNORTUV security camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and security system.
IPCXS-ACHIMNORTUV uses 7 inch 1920x1200P high-definition touch screen, so the operation becomes simple and fast. Support max 12MP IP camera and max 4K 8MP coaxial HD camera test; Support TDR Cable Test, Digital-Multimeters, Optic Power Meters, Visible laser light source, POE, WIFI; DC 5V.2A/12V.3A/24V.1A power output; Multiple professional tests are built-in APP, use it to make your installation process simple and efficient.You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
SUPPORT CAMERA TYPE
IP camera test:
Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.
Coaxial HD camera test:
Support Max 4K 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.
CVBS camera test:
Support Analog CVBS camera test, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc.

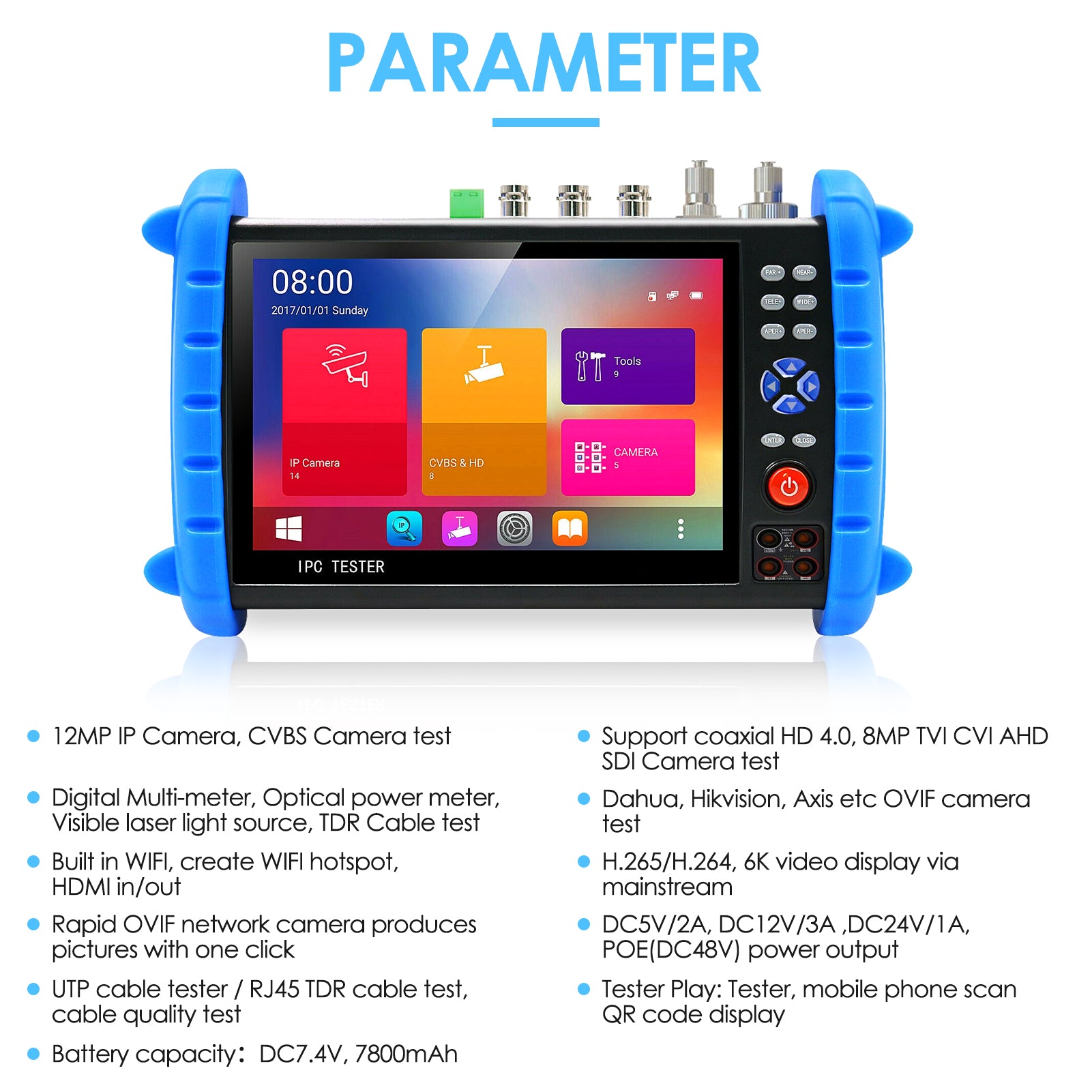

Parameters
|
Brand |
Rsrteng |
|
Model |
IPCXS-ACHIMNORTUV |
|
operating system |
Android 6.0 |
|
Display |
7 inch IPS touch screen, 1920*1200 resolution |
|
CVBS |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc |
|
|
Video output & Color bar test |
CVBS loop test, The tester send and receive CVBS PAL/NTSC color bar generator signal, check BNC cable |
|

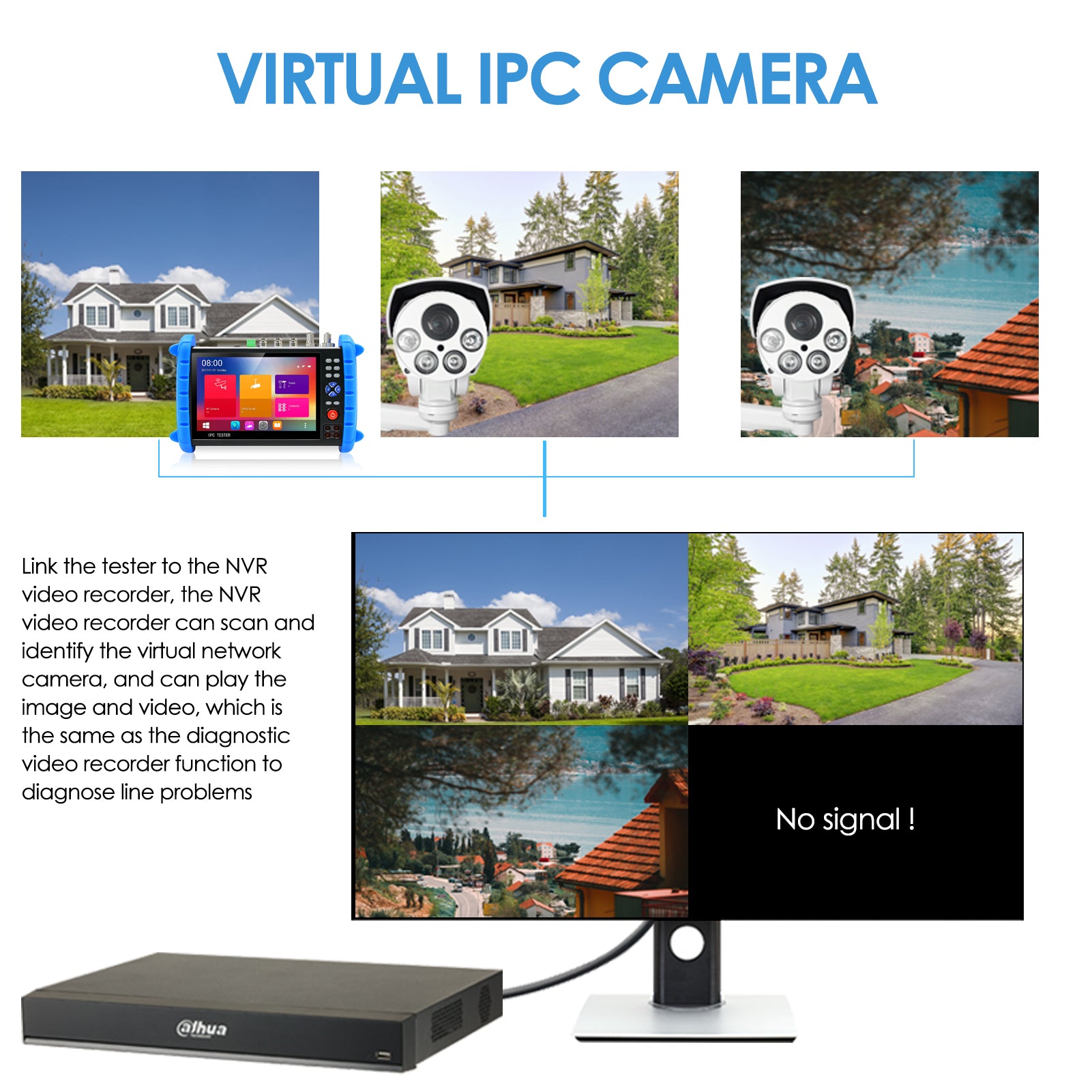

IP camera test |
Smart IPC/IP Discovery/Rapid ONVIF/One-click video/RTSP play /Client APK |
|
Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
|
|
Dahua test tool, Dahua camera test, modify the user name, password and IP parameters |
|
|
Built-in multiple test APPs for other brands of cameras, such as for AXIS, Samsung, TP-LINK, EZVIZ etc. |
|
|
Coaxial HD test |
max 8MP TVI camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu |
|
max 8MP CVI camera test, 3840x2160p 12.5/15fps,coaxial PTZ & call OSD menu |
|
|
max 8MP AHD camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu |
|
|
max 8MP SDI camera test,3840x2160p 25/30fps, coaxial PTZ & call OSD menu |
|
|

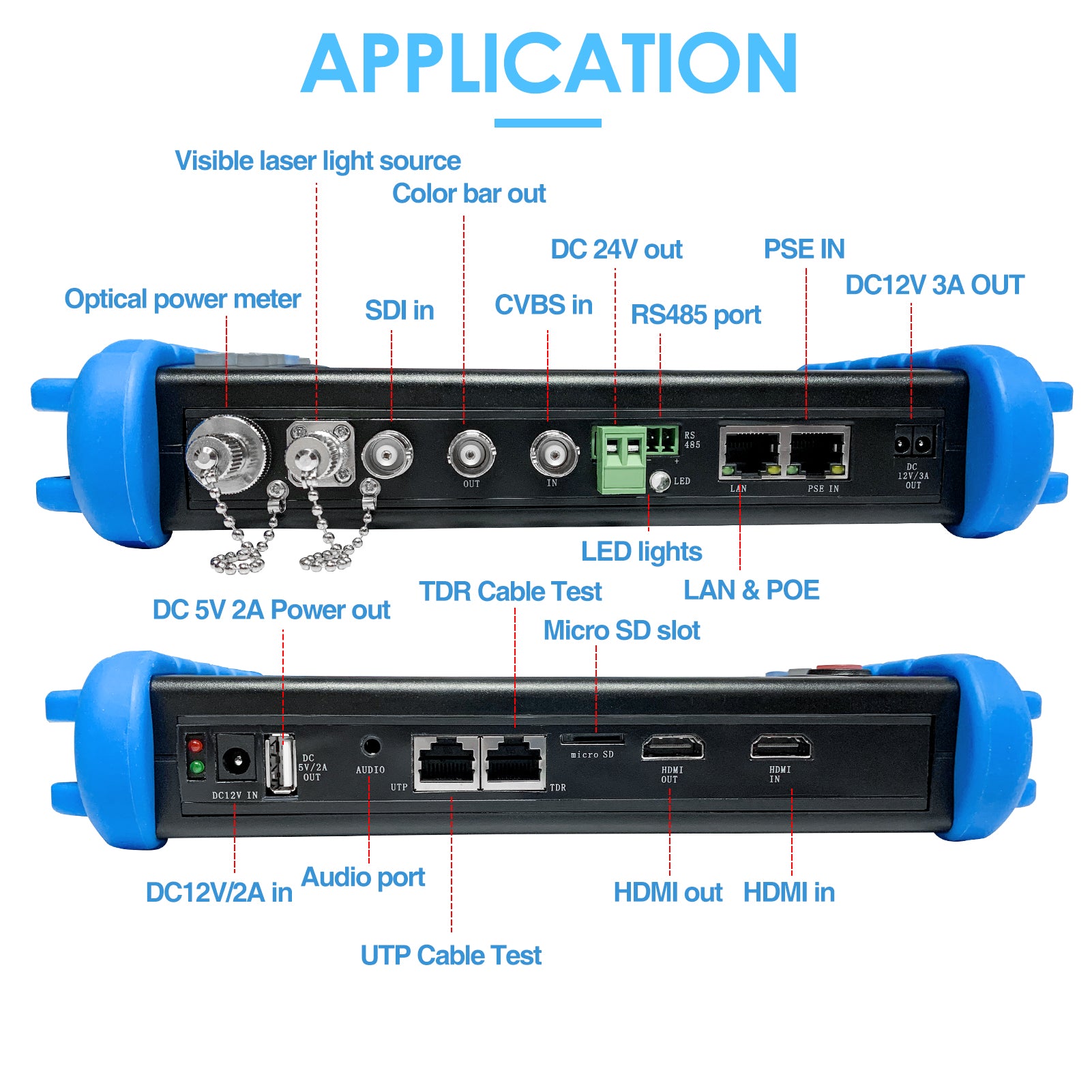

HDMI |
1 channel HDMI input |
|
1 channel HDMI output |
|
|
Power output |
DC5V/2A: USB DC5V/2A power output, as a power bank |
|
DC12V/3A: DC12V/3A power output ,supply temporarily power for the camera |
|
|
DC24V/1A: DC24V/1A power output ,supply temporarily power for the speed dome camera |
|
|
PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W |
|
|
Cable test |
Cable tracer: Include (don't support PD testing) |
|

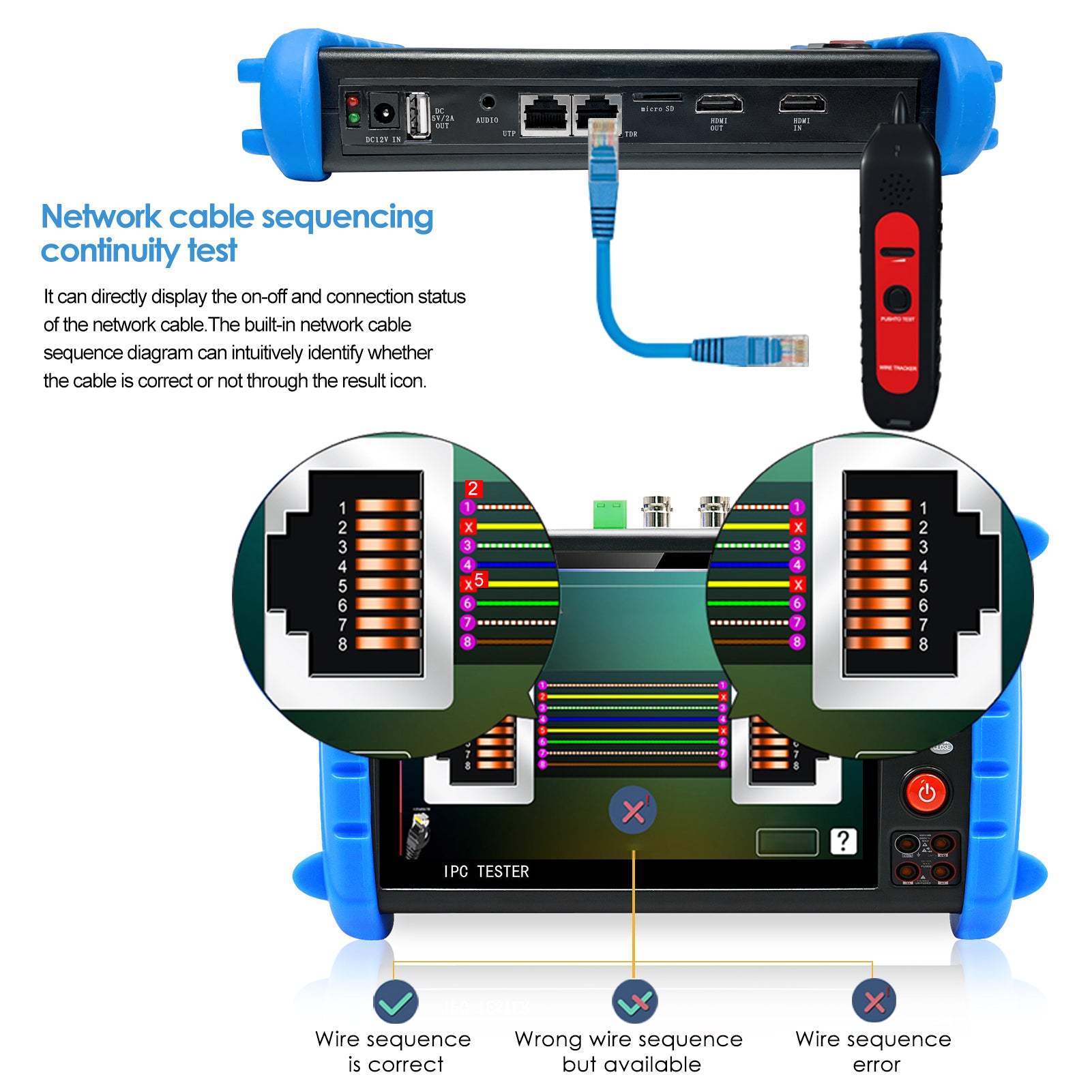

UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen |
|
|
RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. |
|
|

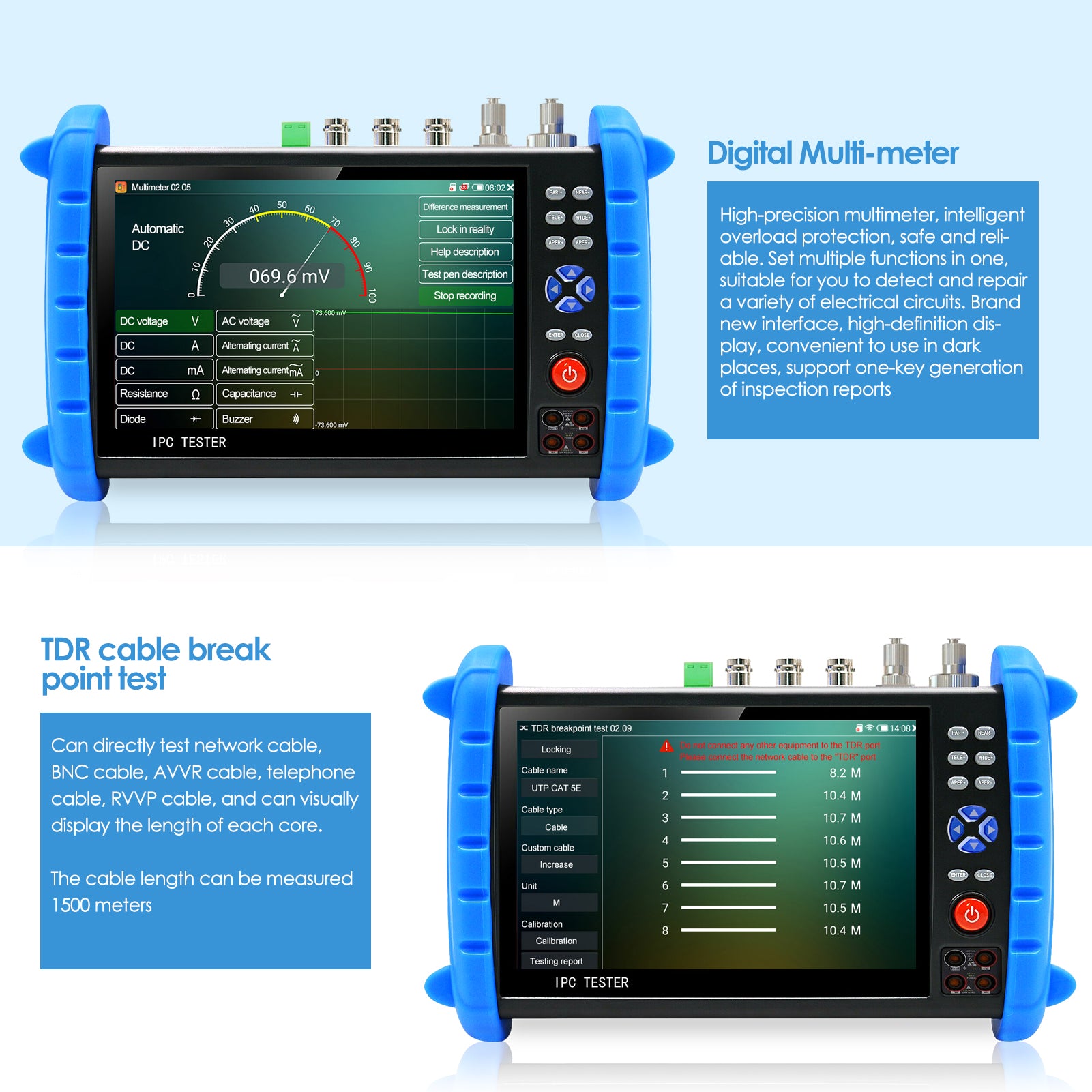

Digital Multimeter |
DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement |
|
Optical power meter |
Optical power meter, wavelength: 1625, 1550, 1490, 1310, 1300, 850nm; Power measurement range (dBm): -70 to +10dBm,for Optical power testing and Fiber link loss relative measurement |
|
Visual fault locator |
10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8km |
|
TDR cable test (hardware support) |
BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM |
|
Network interface |
RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive |
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test, Scan, IP tools, Network loop, Bandwidth test, Search vendor, WiFi analysis |
|
IP tools |
Graphical display of used and unused IP addresses within the LAN |
|
Wi-Fi |
Built in WIFI, 2.4GHz, speeds150Mbps |
|
Audio test |
1 ch audio signal input, test whether sound normal |
|
RS485 serial tool |
Can accept, send and analyzes the RS485 command data from controlling device, also can send hex data |
|
PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|
Drop-down menu |
You can select User manual, CVBS floating window, APP store, File Explorer, Screenshot, LED light switch, Memory card, Brightness adjustment, Volume adjustment, quick access to custom APP etc in any interface |
|
Dual test window |
IP& CVBS test at the same time, converter test from analog to digital with dual test window |
|
Projection |
Tester, mobile phone and PC display at the same time (only for android mobile phone) |
|
Power supply |
DC12V/2A |
|
Battery |
Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh |
|
Rechargeable |
After charging 4 to 6 hours, normal working time 6 to 10 hours |
|
Operation setting |
OSD menu 13 language optional: Chinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc. |
|
Auto off |
1 to 30(mins) |
|
Working Temperature |
-10℃ to +50℃ (14℉ to 122℉) |
|
Working Humidity |
30% to 90% |
|

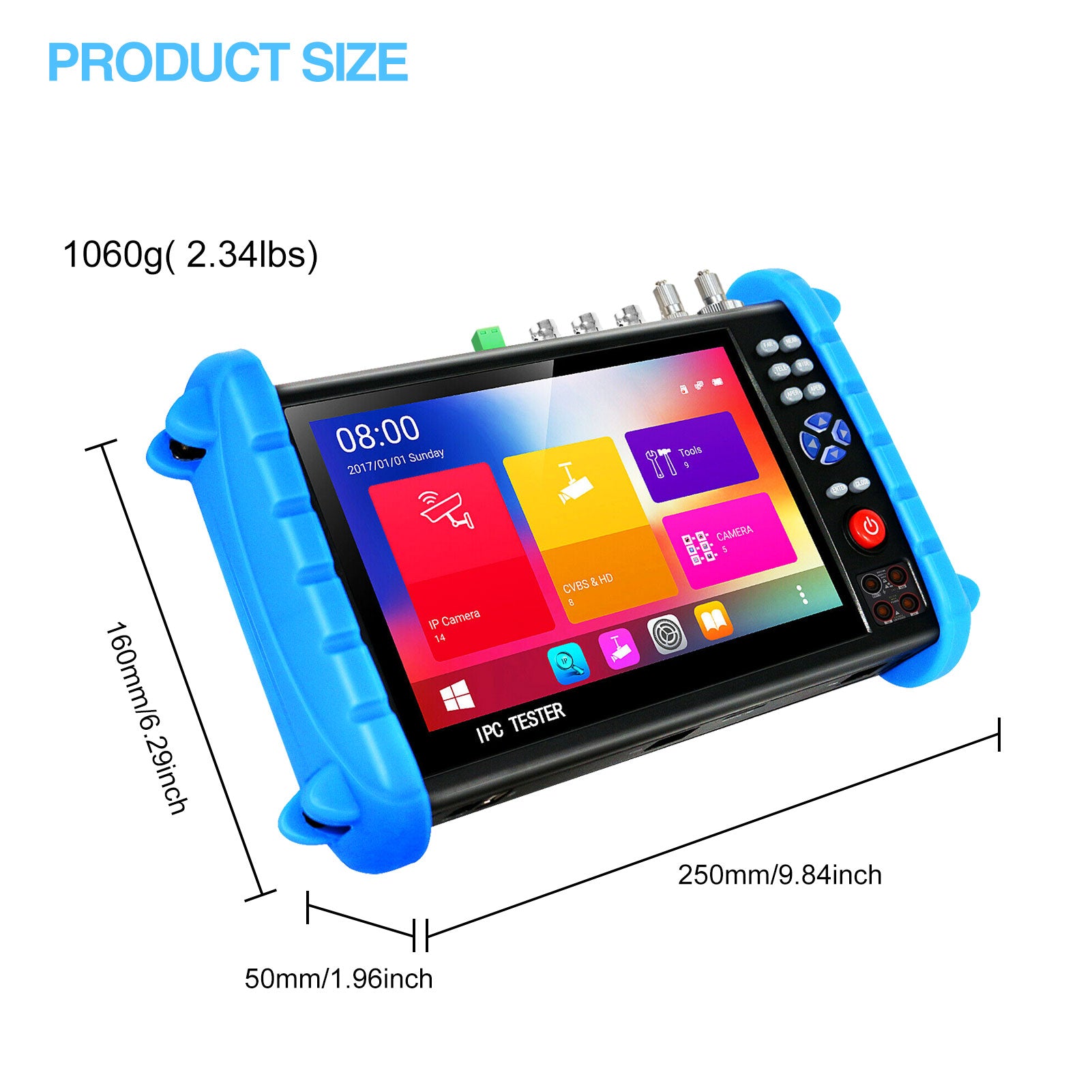

Dimension/ Weight |
250x160x50mm / 1060g (9.84x6.3x1.97inch / 2.34lbs) |
