Rsrteng New in 2022, 8K security surveillance camera tester ——IPC-7600COVTADHS Plus. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.
IPC-7600COVTADHS Plus support testing of max 8K Video main stream test, also support up to 4K 8MP HD CVI TVI AHD SDI camera and CVBS camera testing. At the same time, this model integrates Visual fault locator(VFL), Optical power meter(OPM) and TDR cable test, equipped with a cable tracer. The tester uses Android 9.1 operating system, built-in multiple professional testing APPs, support automatically update APP after connecting to the Internet and self-install APP. POE, cable test, WiFi, power output, HDMI I/O, VGA input, RS485 are all available. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
| Brand & Model | Rsrteng IPC-7600COVTADHS Plus | ||
| operating system | Android 9.0 | ||

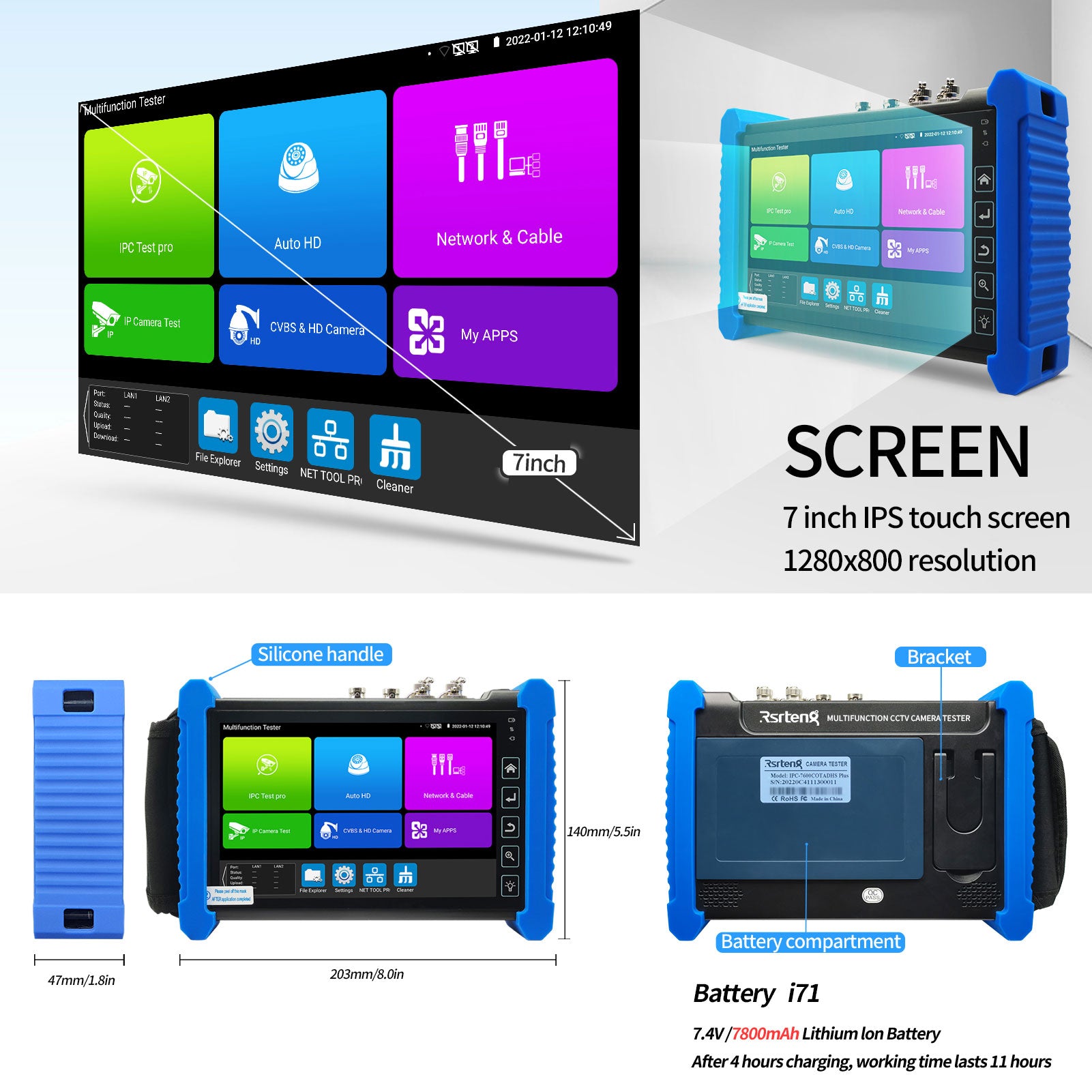

| Display | New 7 inch IPS touch screen, 1280*800 resolution | ||
| CVBS camera test | 1 channel BNC input, NTSC/PAL (Auto adapt) | ||
| main stream test (hardware decoding) |
IP camera test main stream supports up to 8K 32MP 8160x3616 24fps resolution | ||
| Network & IP camera test |
DC12V/POE 48V power supply and power detection, network information, IP address search, image display etc. | ||
| Rapid ONVIF:For Onvif camera, auto log in to view video, modify IP, modify channel names, support face recognition and create test reports. | |||
| Non-ONVIF camera test:Support more than 80 brands proprietary Protocol Camera such as AXIS, ACTi, Dahua, Hikvision, Samsung, Tiandi Albert, Keda, Honeywell, Aipu Wharton, Funiteda, Funitech, Forvision, WEISKY, etc. | |||
| Hik test tool:For hikvision camera pressing just one key to activate, Image test, can modify the user name, password, encoding format, IP address, and channel name. Support batch activation, modify video settings, IP address, restore factory settings, reset password, etc. | |||
| DH test tool:For Dahua camera batch activation and image testing, user name, password, IP and channel name can be modified. | |||
| IP discovery:Find the camera's IP address in the all network segment. | |||
| Network test tool:IP scan, Trace route, Link monitor, Link statistics, DHCP server, Port flashing, Ping test, LLDP etc. | |||
| Coaxial HD test | TVI 5.0 camera test, max 4K 8MP 3840x2160p 12.5/15fps, UTC control/call OSD menu | ||
| CVI 4.0 camera test, max 4K 8MP 3840x2160p 12.5/15fps,UTC control/call OSD menu | |||
| AHD 4.0 camera test, max 4K 8MP 3840x2160p 15fps, UTC control/call OSD menu | |||
| EX-SDI, HD-SDI, 3G-SDI camera test, max 4K 8MP 3840x2160p 25/30fps, UTC control & call OSD menu | |||

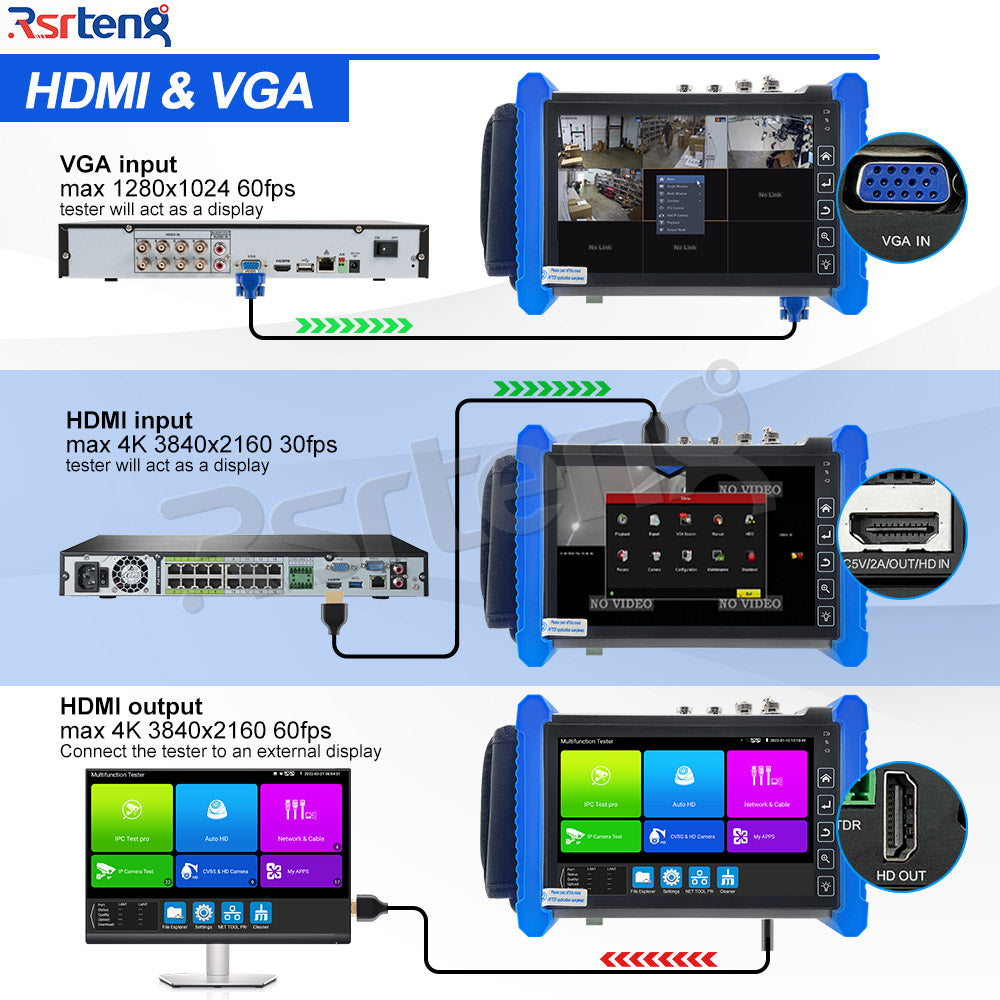

| HDMI input |
1 channel HDMI input, support max 4K 3840x2160P 30fps 4K 3840×2160P 24/25/30fps, 2K 2560×1440P 60fps, 1920×1080P 24/25/30/50/59/60fps, 1920×1080i 50/58/60fps, 1280×720P 25/30/50/59/60fps, 720×480P 60fps, 720×576P 60fps, 1024×768P 60fps, 1280×1024P 60fps, 1600×1200P 60fps, 1440×900P 60fps, 800×600P 60fps |
||
| HDMI output |
1 channel HDMI output, support max 4K 3840x2160P 60fps 4K 3840×2160P 60/50/30/25/24fps, 4096×2160P 24fps, 1920×1080P 60/50/24fps, 1920×1080i 60/50fps, 1280×720P 60/50fps, 720×576P 50fps, 640x480P 60fps |
||
| VGA input |
1 channel VGA input, support max 1280x1024P 60fps 1280×1024P/1280×960P/1280×800P/1280×768P/1280×720P/1152x870P /1024x768P/800x600P/640x480P, 60fps |
||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||

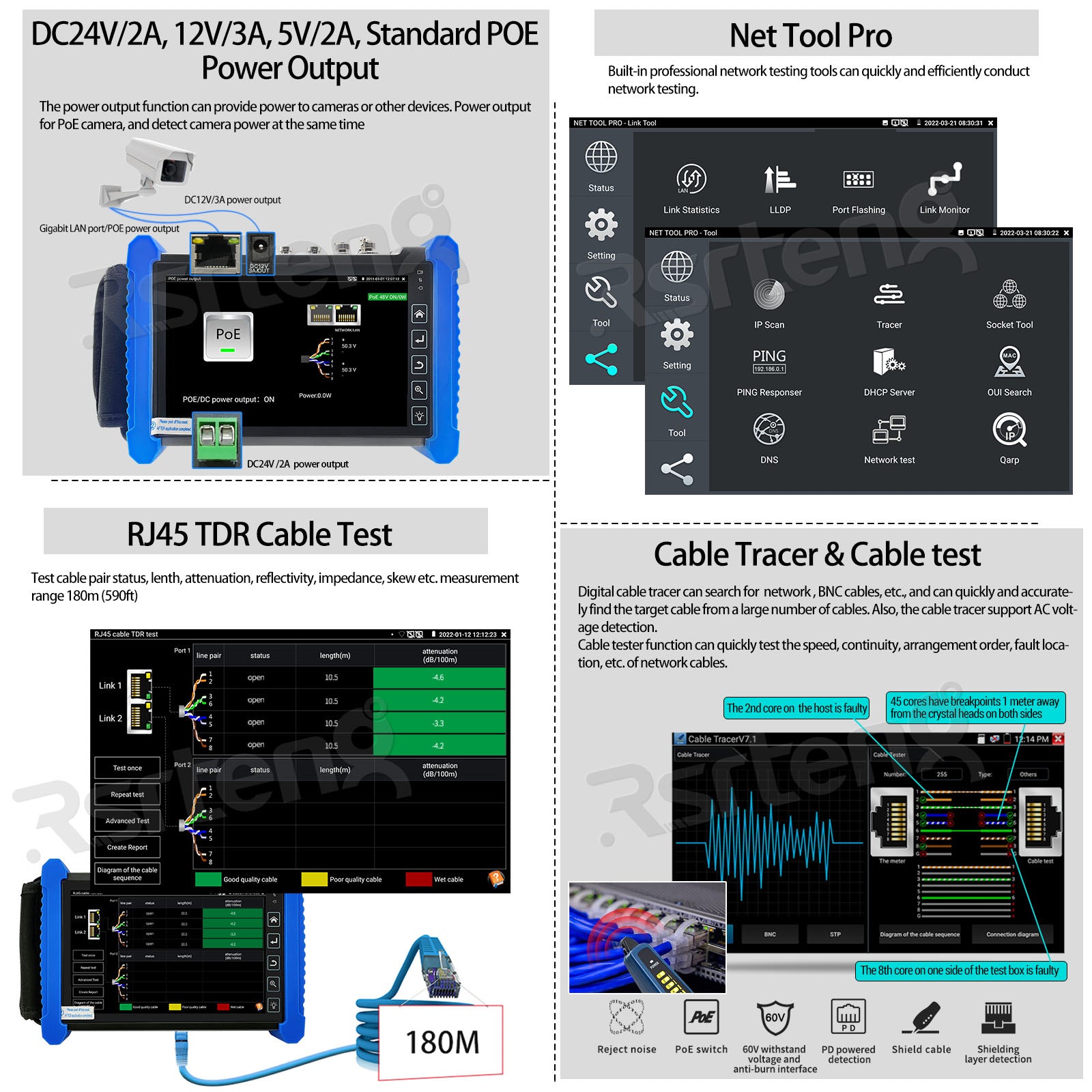

| Power output | DC5V/2A:USB 5V/2A power output, as a power bank | ||
| DC12V/3A:DC12V/3A power out ,supply temporarily power for the camera | |||
| DC24V/2A:DC24V/2A power out ,supply temporarily power for the speed dome camera | |||
| PoE:IEEE802.3af/at 48V PoE power output, max power 30W | |||

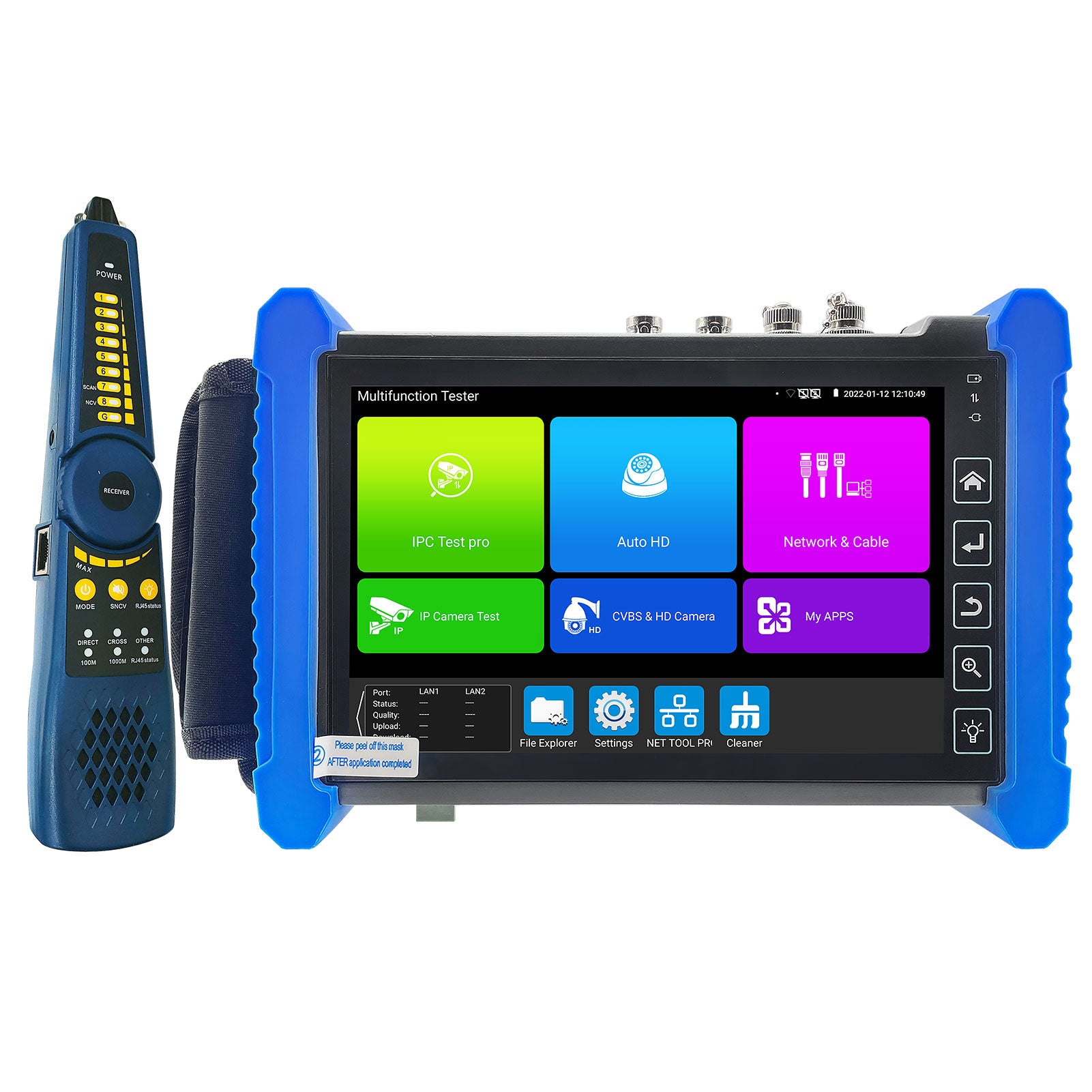

| Cable test | Cable tracer:Search BNC cable, network cable and telephone cable from the mess cables | ||
| AC Voltage Detector, Voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE | |||
| UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen | |||
| RJ45 cable TDR test:test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. | |||
| TDR cable test | BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM(3937fts) | ||

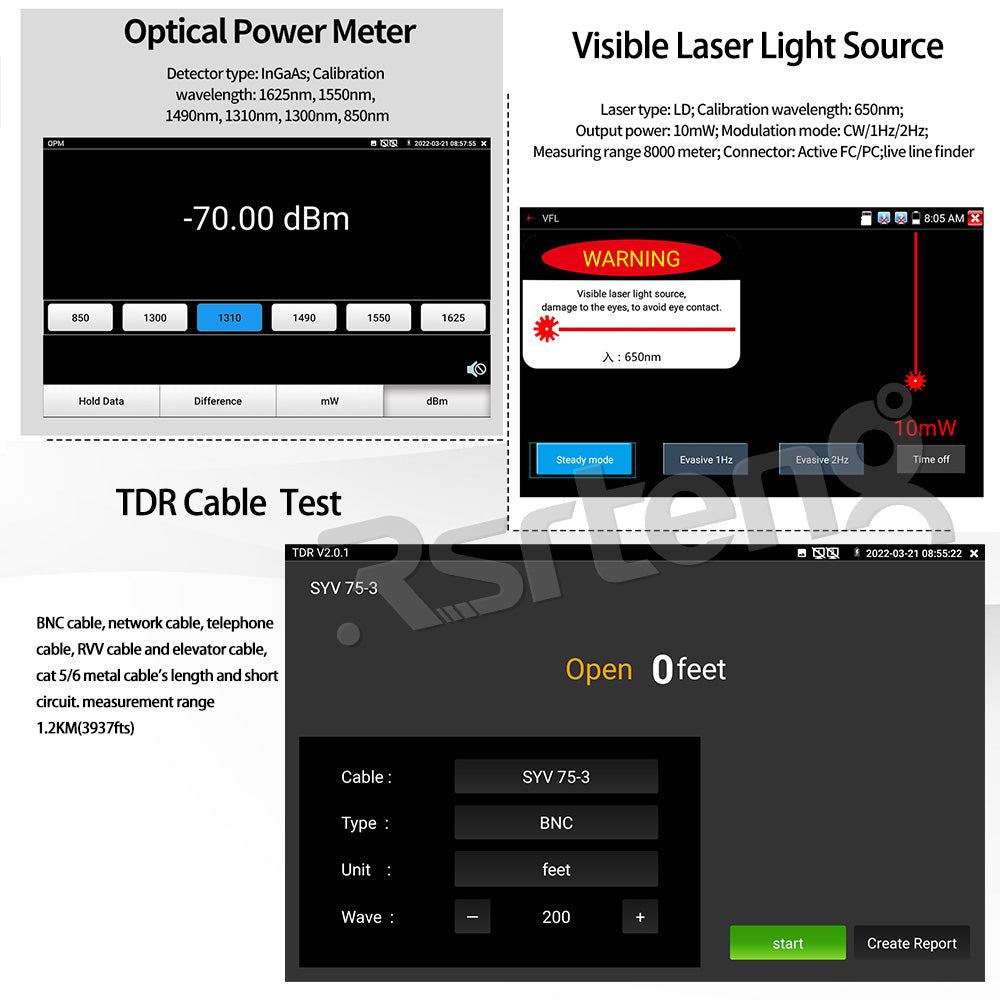

| Optical power meter (OPM) |
Detector type: InGaAs; Calibration wavelength: 1625, 1550, 1490, 1310, 1300, 850nm; Power measurement range (dBm): -70 to +10; Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃); Display resolution: Linear display 0.1%, logarithmic display 0.01dBm; Connector: Active FC/PC | ||
| Visual fault locator (VFL) |
Laser type: LD; Calibration wavelength: 650nm; Output power: 10mW; Modulation mode: CW/1Hz/2Hz; Measuring range 8000 meter; Connector: Active FC/PC; Working temperature: -10℃ to +50℃(14℉ to 122℉); Storage temperature: -20℃ to +70℃(-4℉ to 158℉) | ||
| Analog level test | Analog video level meter, peak video signal level, SYNC signal level | ||
| RS485 | RS485 pan/tilt control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan etc | ||
| Date monitor. Captures and display the command data from RS485 controlling device, also possible to send hex codes | |||
| Wi-Fi | Built-in WIFI, 2.4GHz, speed 150Mbps, display wireless camera image | ||
| Wi-Fi analyzer | Support view wifi information, test wifi strength, analyze channel occupancy and channel level, etc. | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
| Image operate | Support screenshots and video recordings on the test screen, support photo browsing and video playback operations. | ||
| Dropdowns | The dropdowns menu can quickly turn on the PoE power, IP settings, flashlight, HDMI input, Network info etc. | ||
| TesterPlay | screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) | ||
| TF card slot | Built-in TF card slot, include a 8GB TF card | ||
| Power adapter | DC 12V/2A | ||
| Battery | Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh | ||
| Rechargeable | After charging 4 hours, normal working time 11 hours | ||
| Language | OSD menu support language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Serbian, Czech, Vietnamese, etc. | ||
| Auto off | 1-30mins | ||
| Working Temperature | -10℃--- +50℃ (14℉---122℉) | ||
| Working Humidity | 30%-90% | ||
| Dimension/Weight | 203x140x47mm(8x5.5x1.85inch) / 940g(2.07lbs) |
