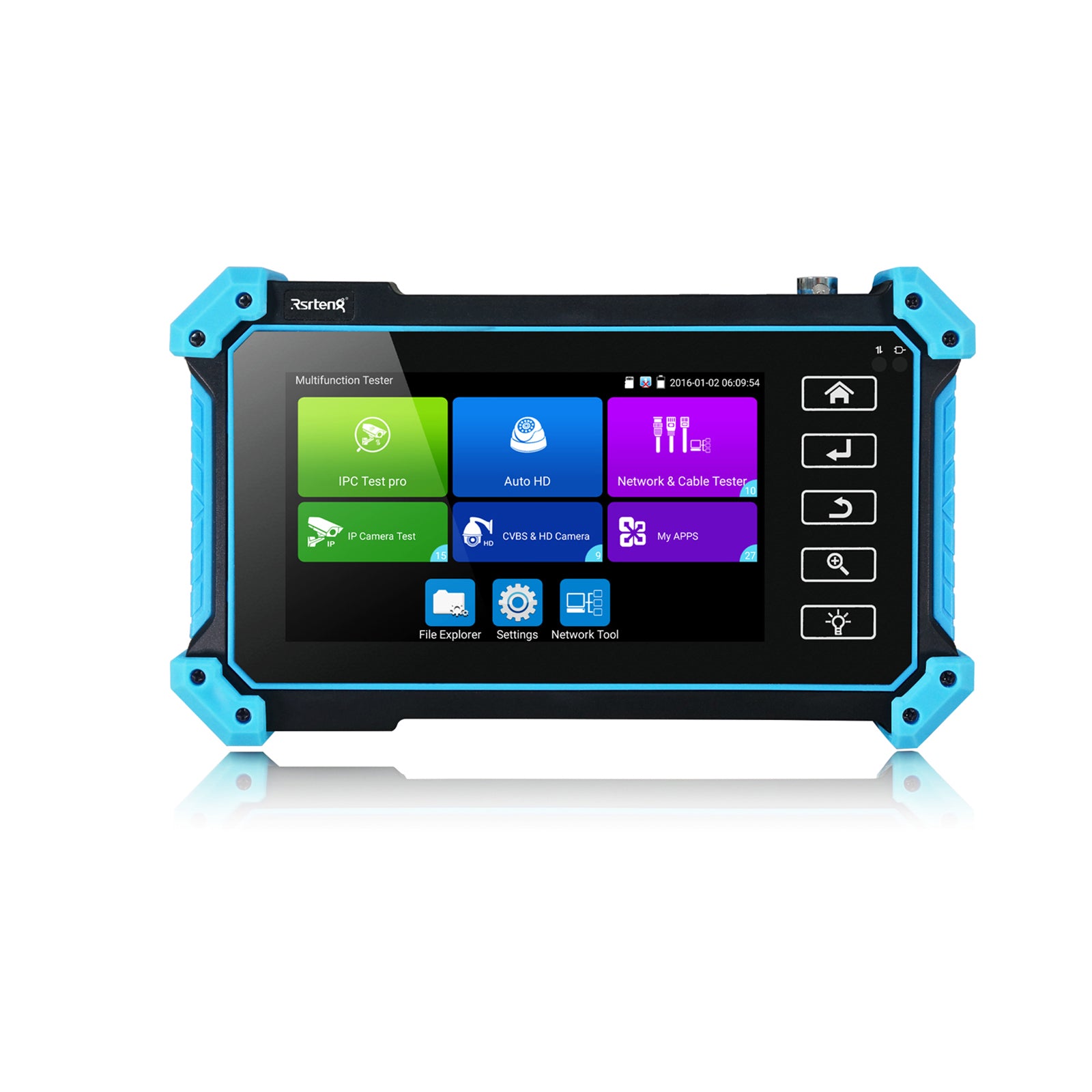

This is Rsrteng IPC-5100 Plus portable 4K security surveillance camera tester, it is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and coaxial HD surveillance camera.
IPC-5100 Plus support up to 12MP IP camera testing, support up to 8MP AHD CVI TVI camera and CVBS camera testing, but SDI camera can't be supported. HDMI and VGA input function can use the tester as a display for NVR and DVR testing. Professional test app, POE, cable test, WiFi, power output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
SUPPORT CAMERA TYPE
IP camera test:
Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.
Coaxial HD camera test:
Max 8MP TVI/AHD/CVI/camera test, 3840 x 2160P, support UTC control and call OSD menu. SDI camera can't be supported
CVBS camera test:
1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc. Does not support color bar test.
Parameters
|
Brand |
Rsrteng |
|
Model |
IPC-5100 Plus |
|
Display |
5 inch IPS touch screen, 1920x1080 resolution |
|
12MP 4K IP camera test |
IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK |
|
Rapid Video: Auto view the video, create testing report |
|
|
For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, open wide dynamic mode. Factory restore, etc. |
|
|
For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. |
|
|
For Axis test tool amd others brand camera test: After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool. |
|
|
HD Coaxial test |
8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu |
|
8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu |
|
|
8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu |
|
|
SDI camera can't be supported |
|
|
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu |
|
|
CVBS camera test |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
|
HDMI |

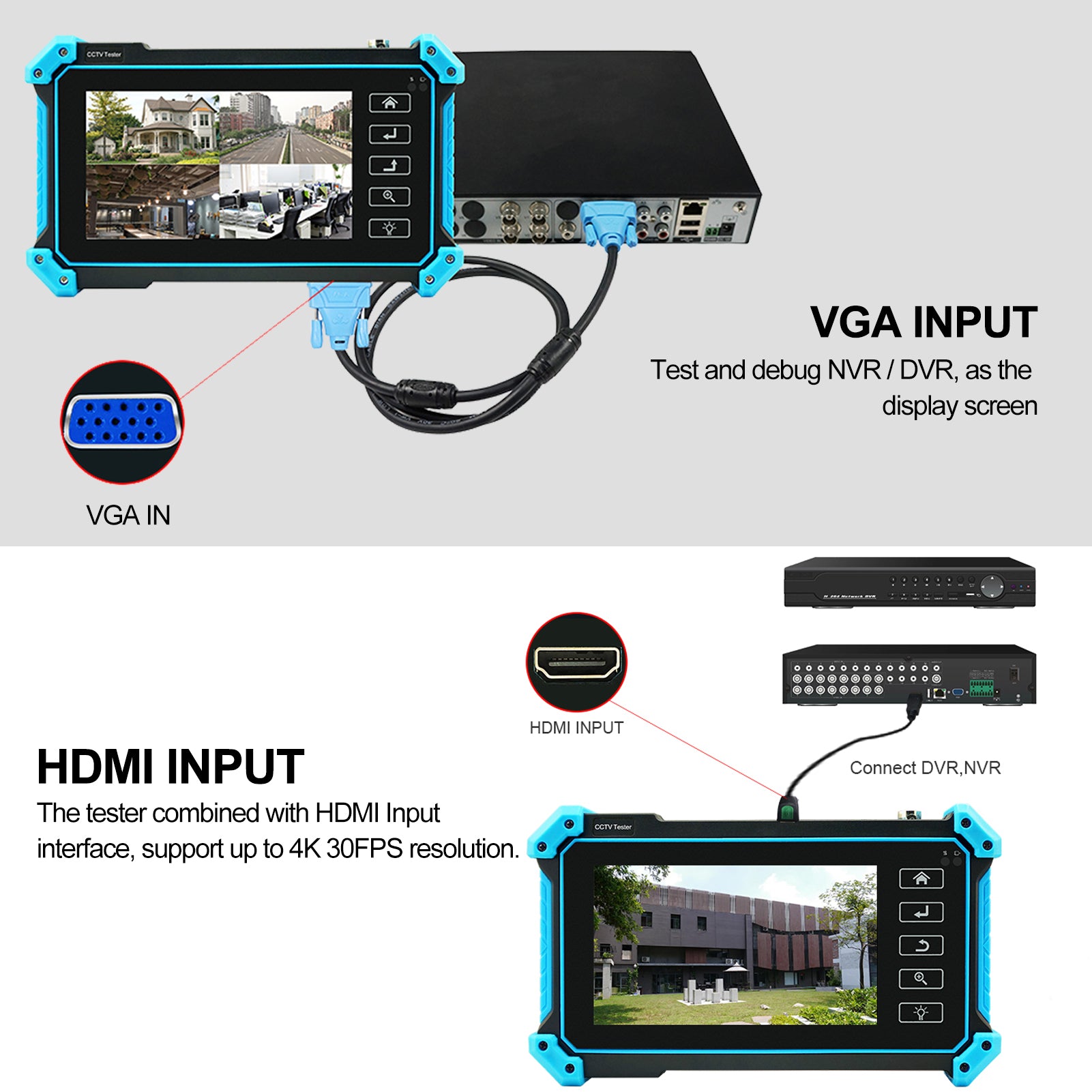

HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
|
HDMI output: N/A |
|
|
VGA |
1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS. |
|
Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |
|
Cable test |
Digital Cable tracer: N/A |
|
UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. |
|
|
RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M. |
|
|
Tester Play |
screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone) |
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
|
Wi-Fi |
Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot. |
|
Audio test |
1 channel audio signal input, test whether sound normal. |
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal. |
|
Power |
Input: DC 12V/1A input |
|

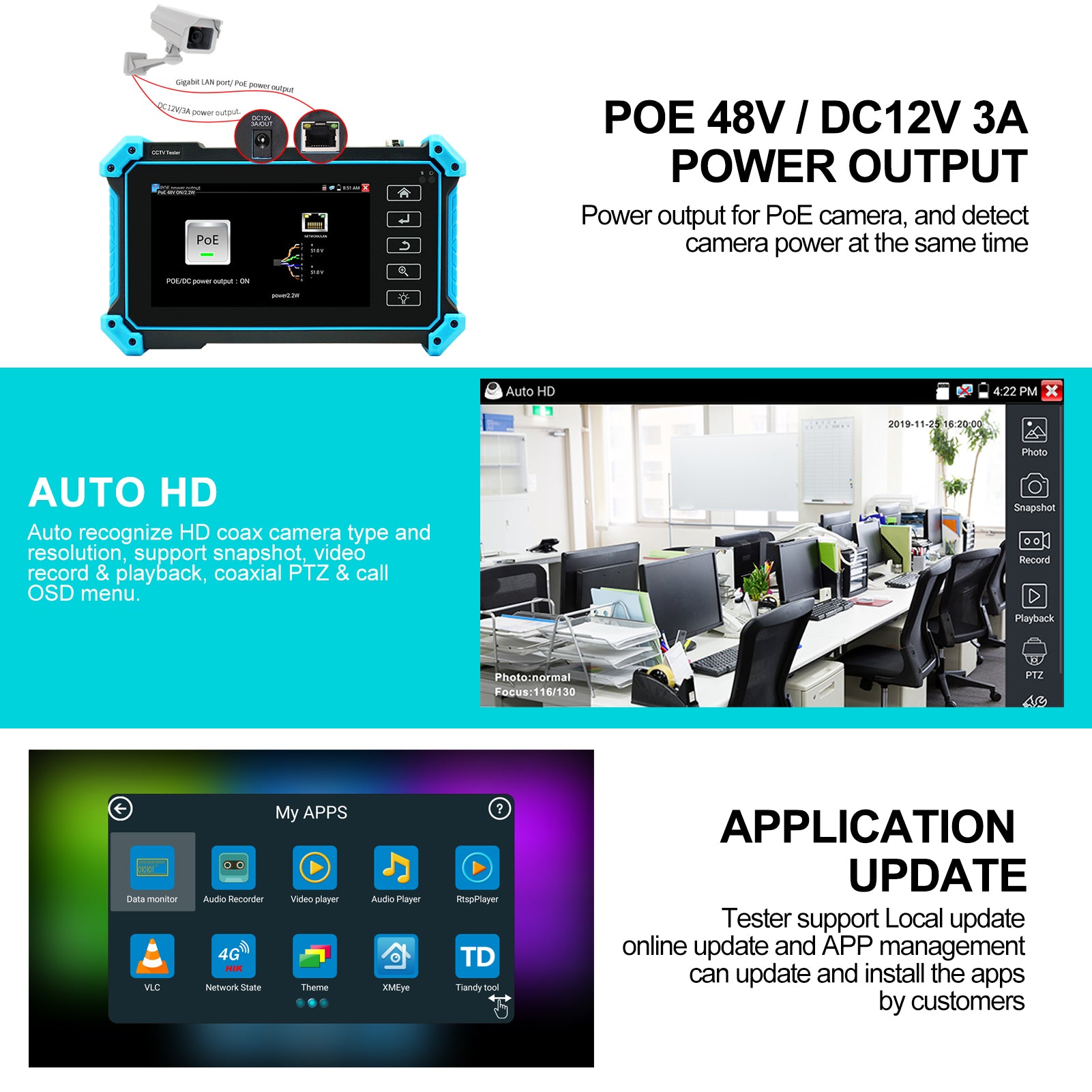

DC output: DC12V/3A power output, supply temporarily power for the camera POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W |
|
|
Battery |

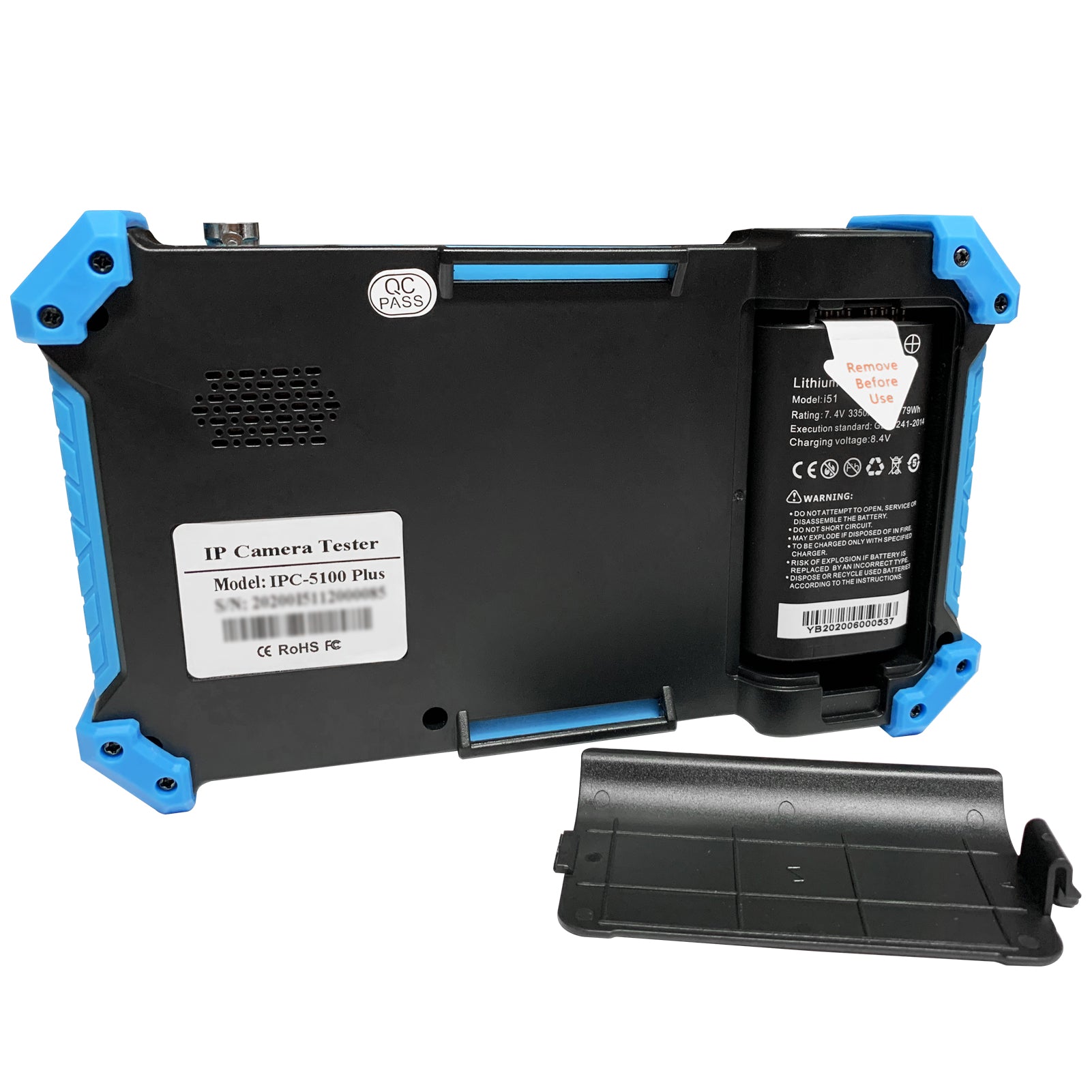

Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h |
|
Rechargeable |
After charging 3-4 hours, normal working time 5-8 hours |
|
OS |
Android, Free to add APP (requires version support) |
|
CPU |
4core, 1.2GHz |
|
RAM(DDR) |
1GB |
|
Flash(eMMC) |
8GB |
|
TF card slot |
Suport up to 32GB, item not include TF card |
|
Menu language |
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc |
|
Auto off |
1 to 30 (mins) |
|
Work Temperature |
-10℃ to +50℃ (+14℉ to +122℉) |
|
Work Humidity |
30% to 90% |
|
Package includes |
1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband |
|
Dimension |
Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) Tester:183x110x36.5mm(7.2x4.33x1.44inch) |
|
Weight |
Package weight:1.05kg(2.31lbs) Tester net weight: 0.4kg(0.88lb) |
