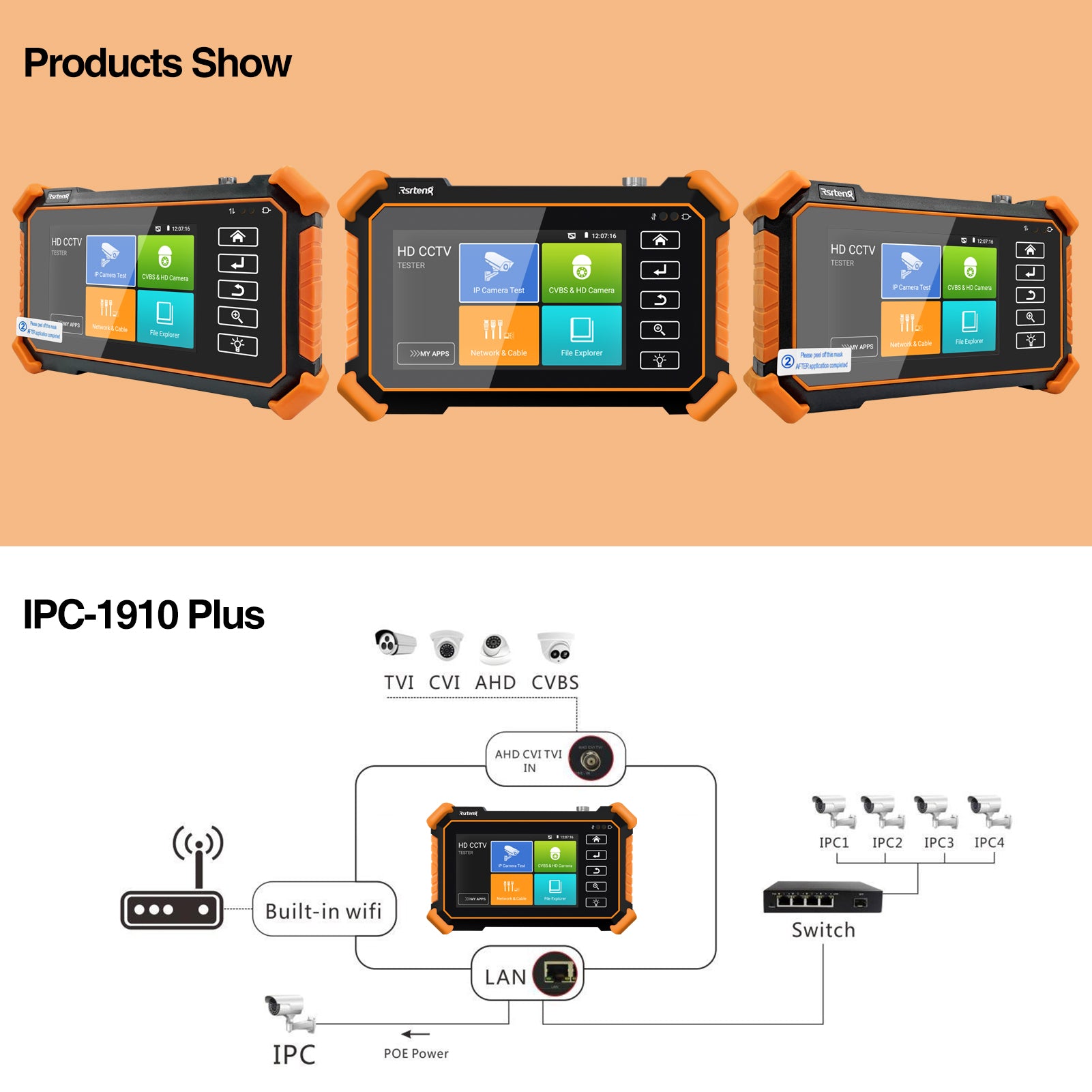

This is Rsrteng IPC-1910 Plus portable security camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP camera and TVI CVI AHD camera and CVBS camera testing.

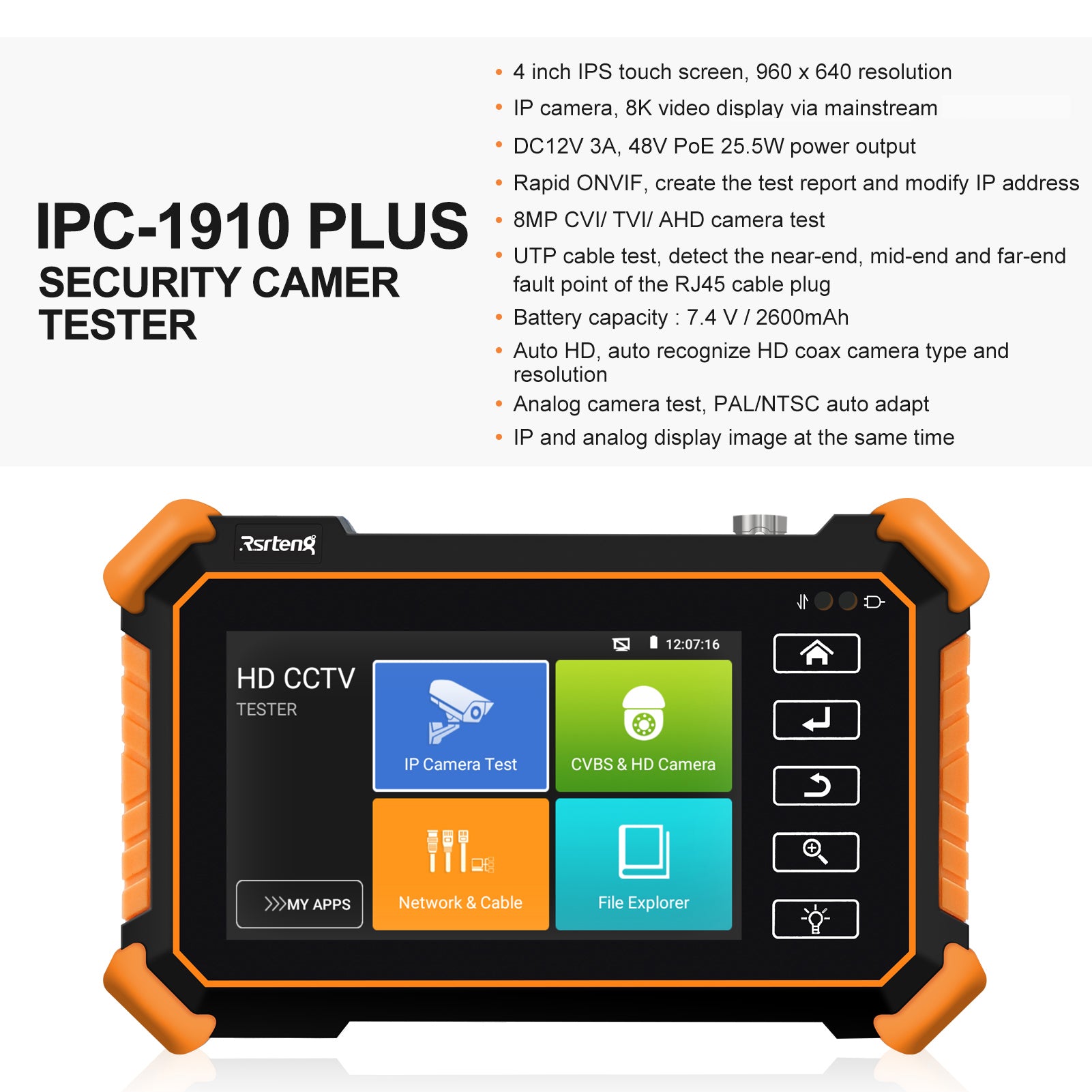

IPC-1910 Plus use 4 inch 960 x 640 HD IPS touch screen,can support the testing of up to 4K 8MP HD TVI CVI AHD camera and CVBS camera testing.Rapid ONVIF, create the test report and modify IP address.Professional test app,UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug.You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
SUPPORT CAMERA TYPE
IP camera test:
Max 8K 32MP IP Camera test. IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK. Rapid Video:Auto view the video, create testing report. Support Hik and DH camera test tool, ovif test tool etc.
Coaxial HD camera test:
Max 4K 8MP TVI CVI AHD camera and CVBS camera test, 3840 x 2160P, support UTC control and call OSD menu. SDI camera can't be supported.
CVBS camera test:
1 channel BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc.
Parameters
|
Brand |
Rsrteng |
|
Model |
IPC-1910 Plus |
|

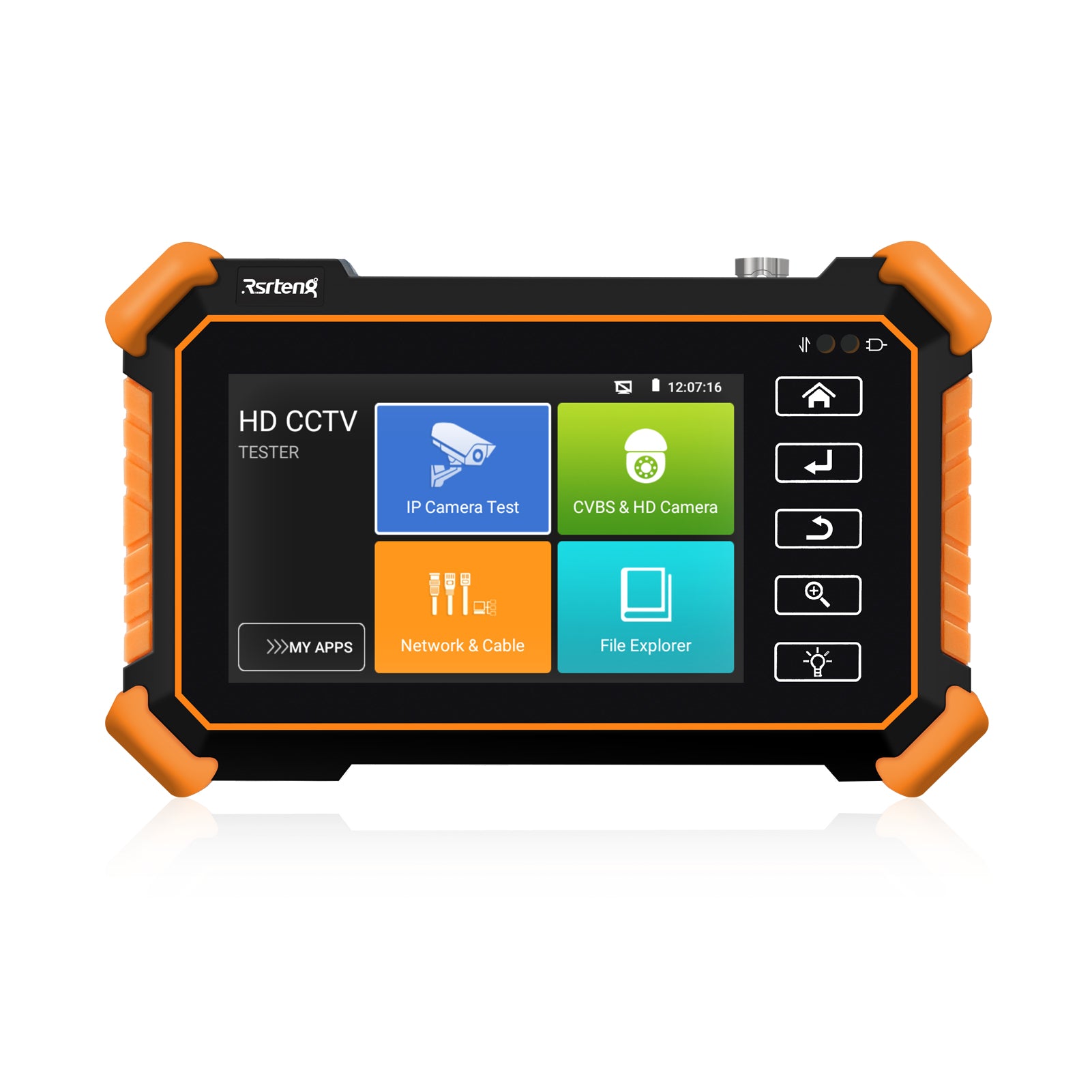

Display |
New 4 inch IPS touch screen, 960*640 resolution |
|
Operating system |
Android 9.1 |
|
CVBS camera test |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
|
IP camera test 8K 32MP |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
|
Rapid Video: Auto view the video, create testing report |
|
|
For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras. |
|
|
For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. |
|
|
For Onvif camera test: supports testing of other cameras using ONVIF protocol, display images, and other non-ONVIF protocol cameras. Built-in multiple test APP tool. |
|
|
HD 4K Coaxial camera test |
8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu |
|
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu |
|
|
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu |
|
|
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu |
|
|
Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |
|
12V/3A power |
Output DC12V/3A power out, supply temporarily power for the camera |
|

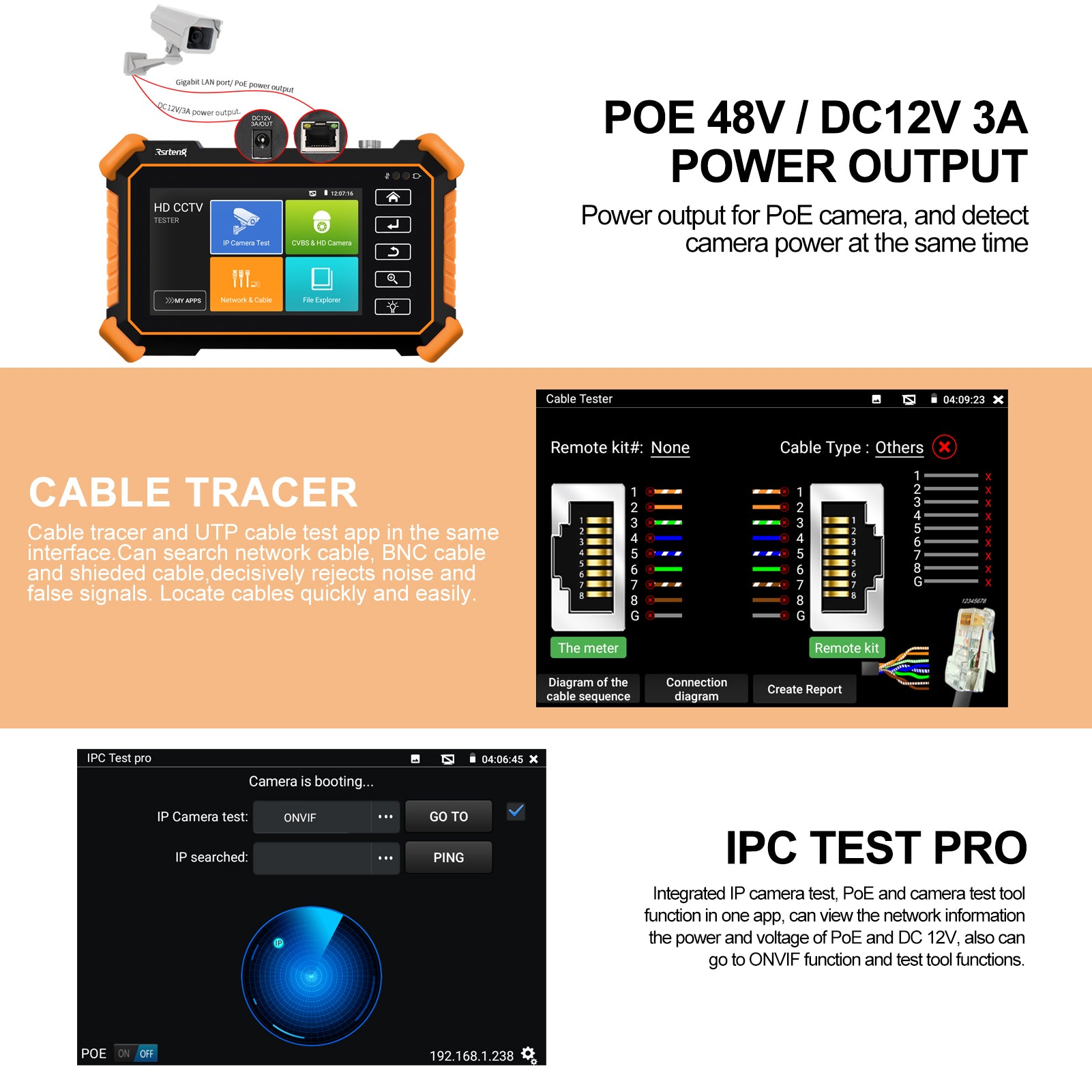

PoE power output |
48V PoE power output, max power 25.5W |
|
Cable test |
Digital Cable tracer: N/A |
|
UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. |
|
|
Tester Play |
Screen projection: Tester, mobile phone and PC display at the same time (Only for android version mobile phone) |
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
|
Wi-Fi |
Built in WIFI, speeds 150Mbps, display wireless camera image |
|
Audio test |
1 channel audio signal input, test whether sound normal. |
|
Power management |
Display DC 12V input & output voltage and power in real time |
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
Power supply |
DC 12V 1A |
|

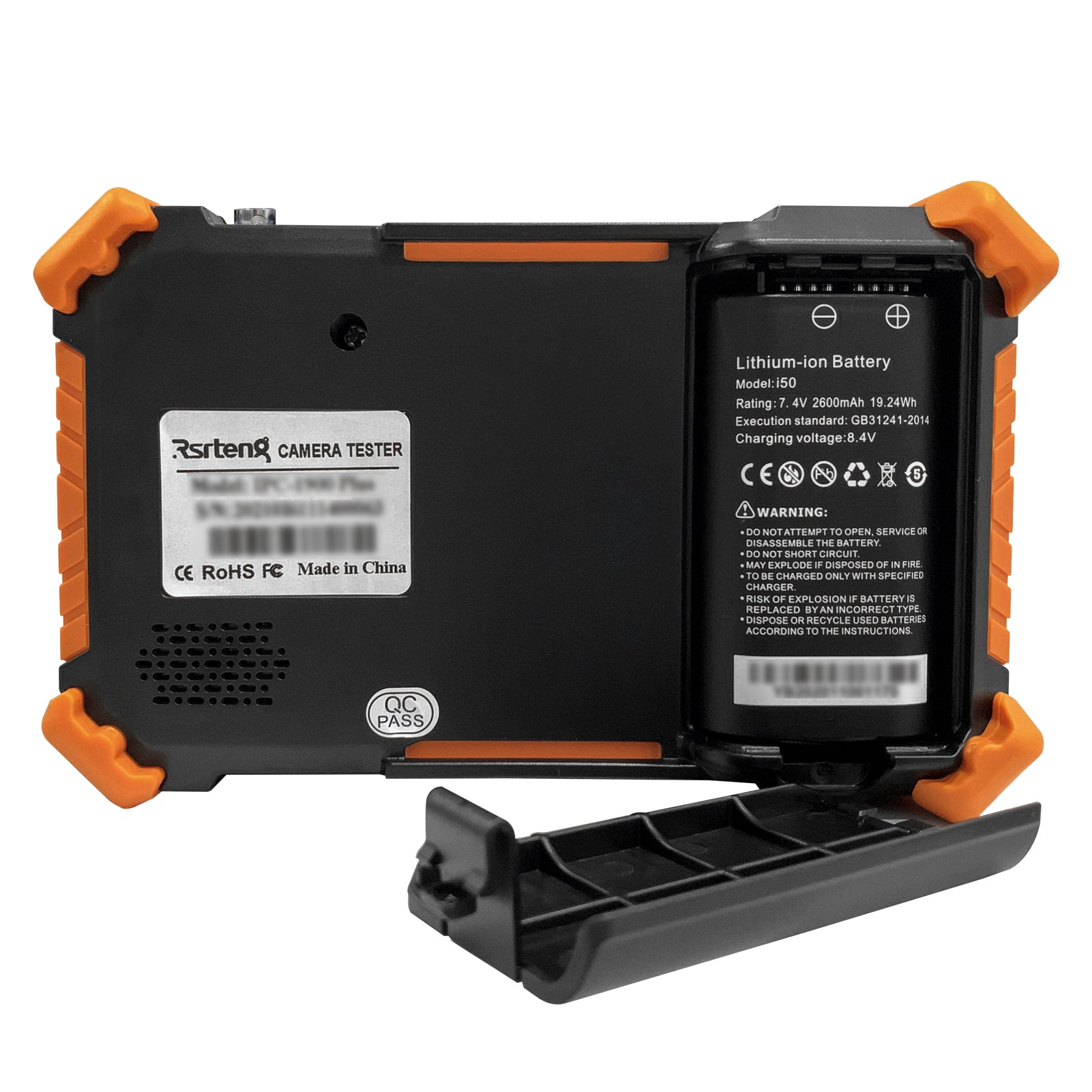

Battery |
Built-in Lithium ion battery 7.4 V / 2600mAh, 19.24Wh |
|
Rechargeable |
After charging 3-4 hours, normal working time 9 hours |
|
Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc |
|
Auto off |
1 to 30 (mins) |
|
Working Temperature |
-10℃ to +50℃(14 to 122℉) |
|
Working Humidity |
30% to 90% |
|

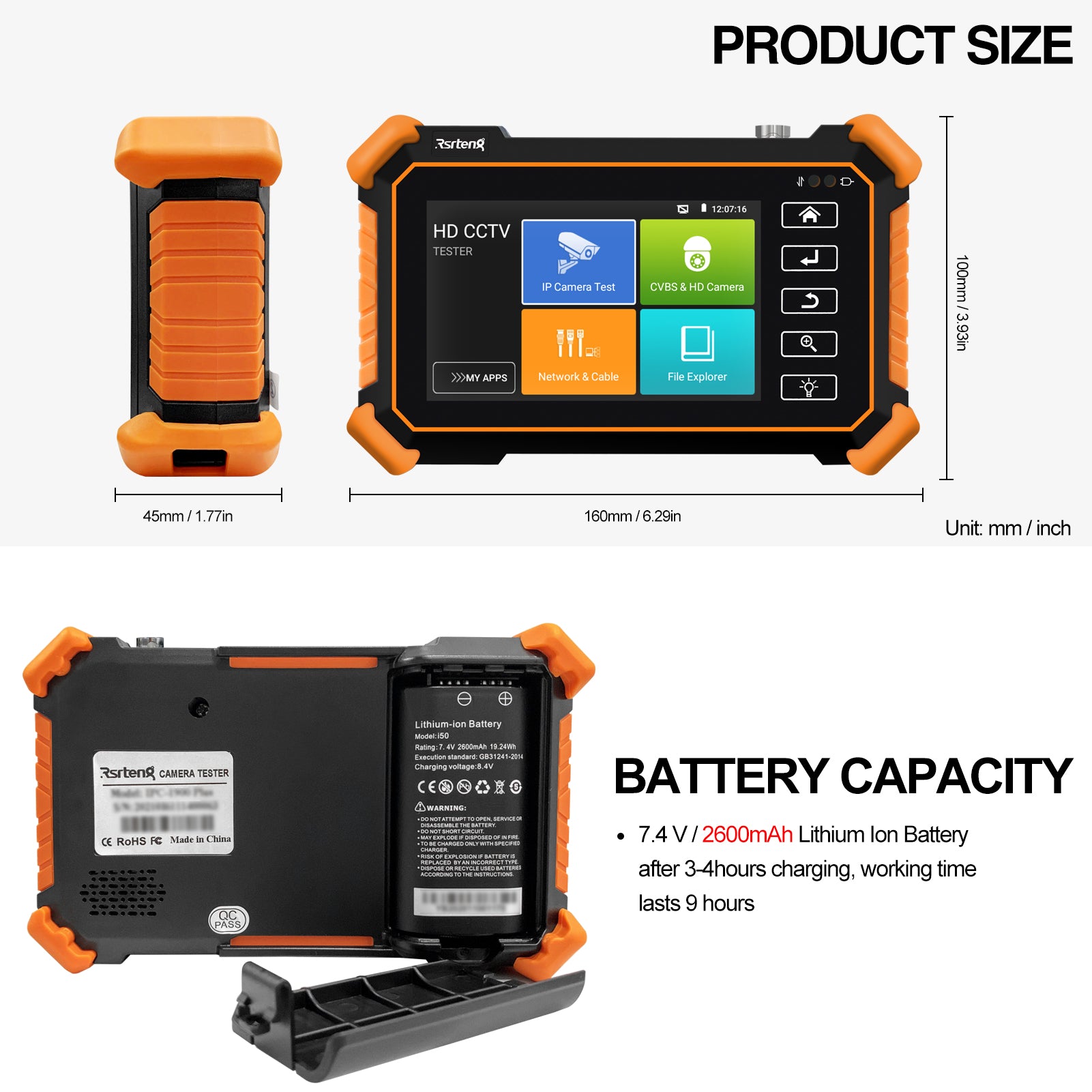

Dimension |
160x100x45mm(6.3x3.94x1.77inch) |
|
Weight |
0.36kg(0.79lb) |
