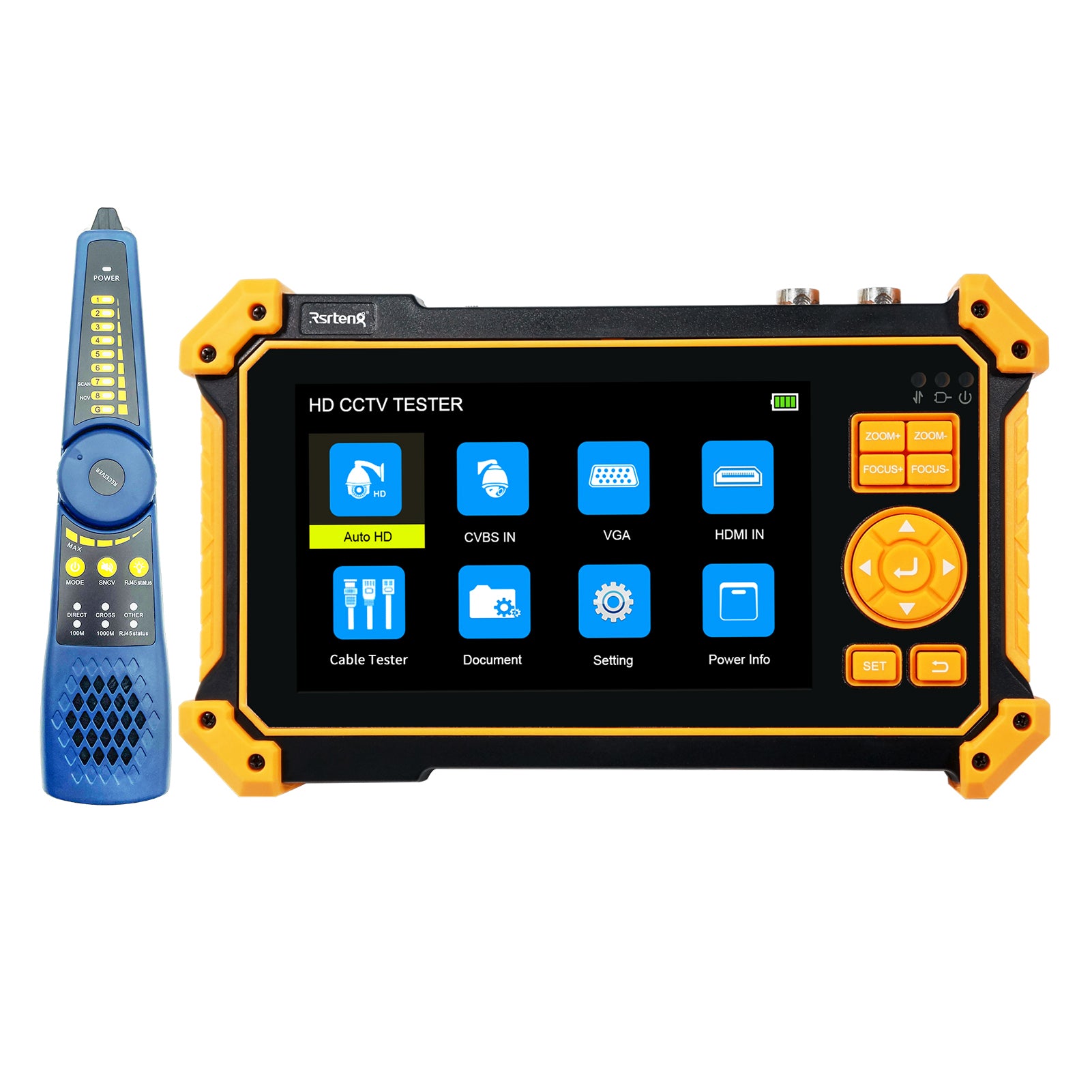

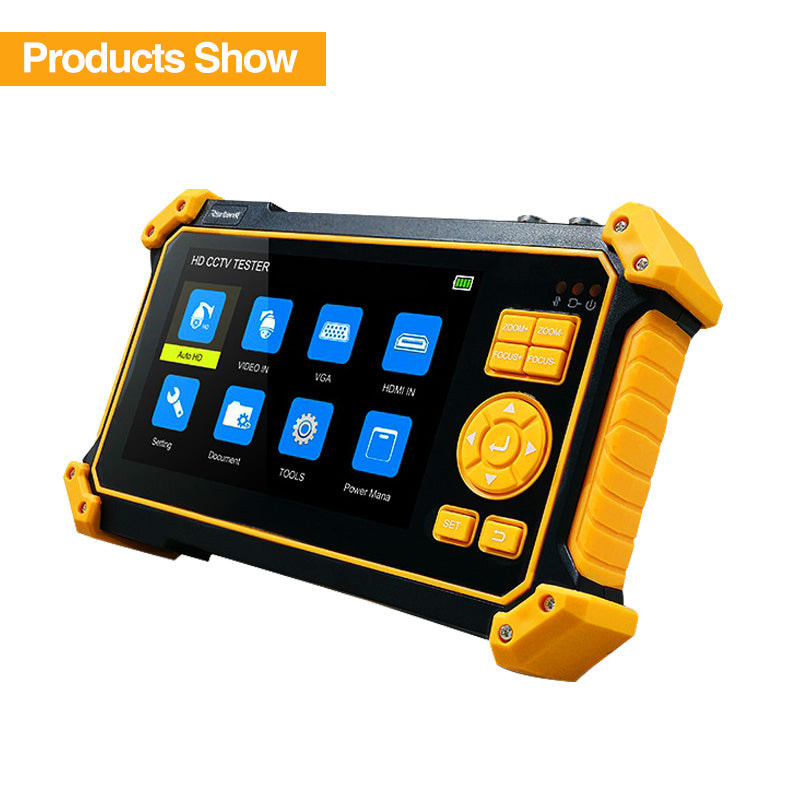

This is the HD-3200C HD camera tester in the Rsrteng HD-3000 series. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance HD coaxial cameras.
HD-3200C use 5inch TFT-LCD screen(Non-touch screen), can support the testing of up to 4K 8MP HD CVI TVI AHD SDI camera and CVBS cameras, but it does not support IP camera testing. Built-in professional test software, UTP cable test, PTZ controller, power output, HDMI&VGA input, audio input, RS485 are all available. Using self-developed operating system (based on Linux), work is stable and reliable. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
SUPPORT CAMERA TYPE
IP camera test: Don't support

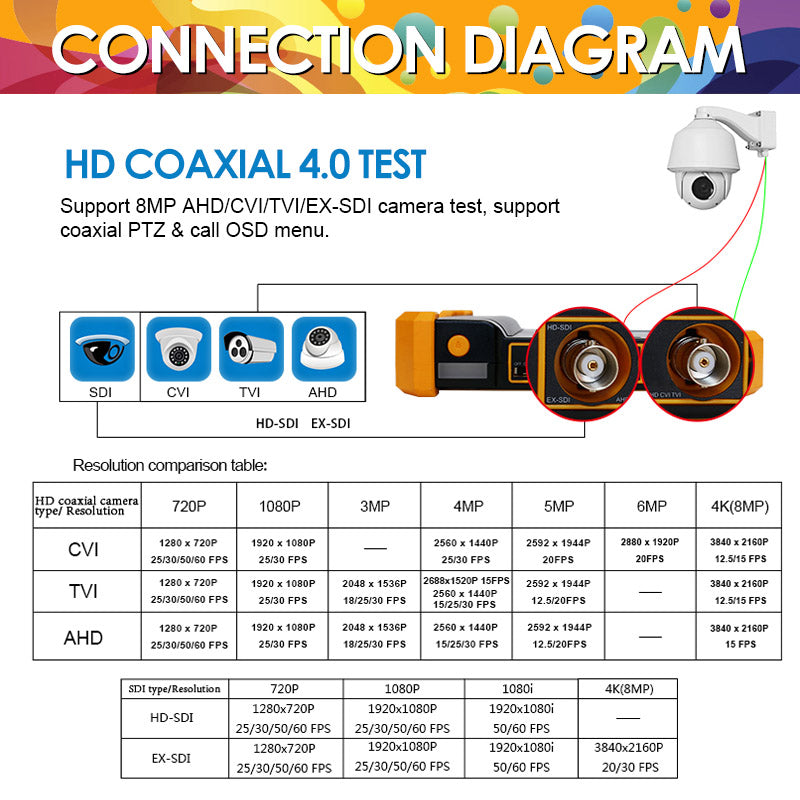

Coaxial HD camera test:
Max 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support UTC control and call OSD menu.
CVBS camera test:
1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.

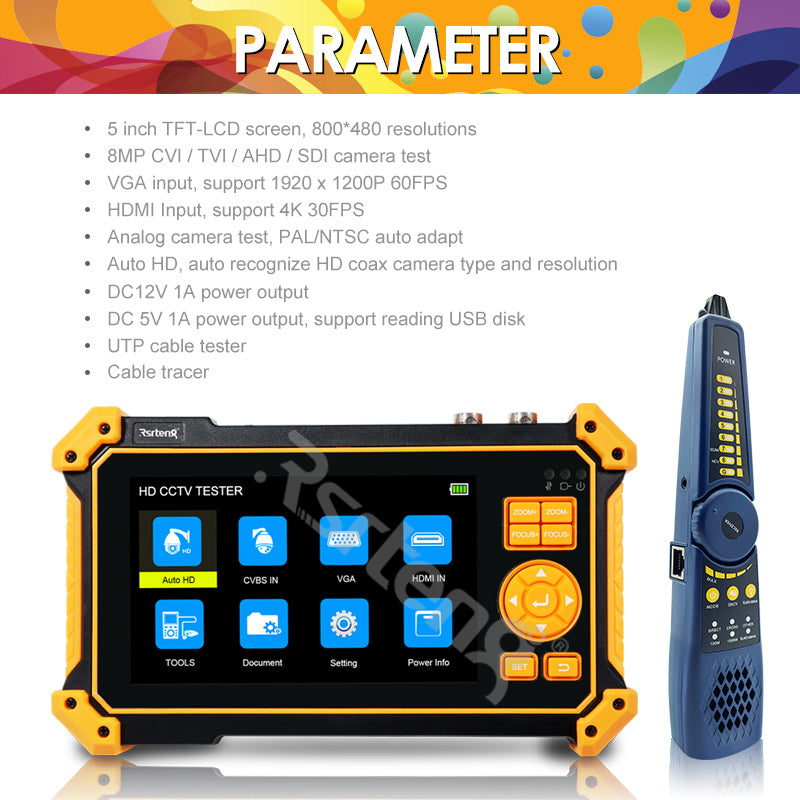

Parameters
|
Brand |
Rsrteng |
|
Model |
HD-3200C |
|

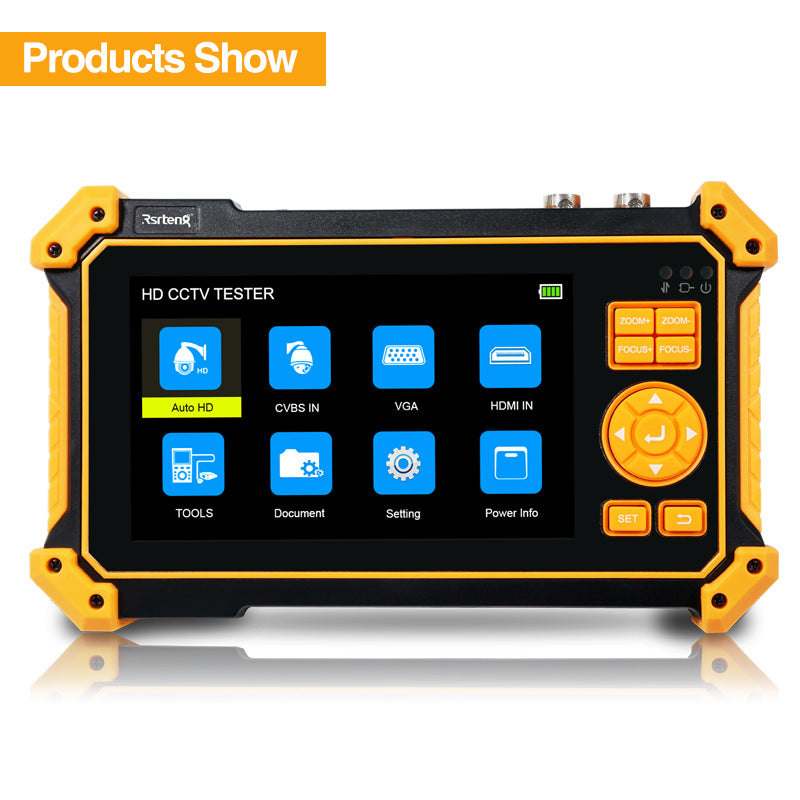

Display |

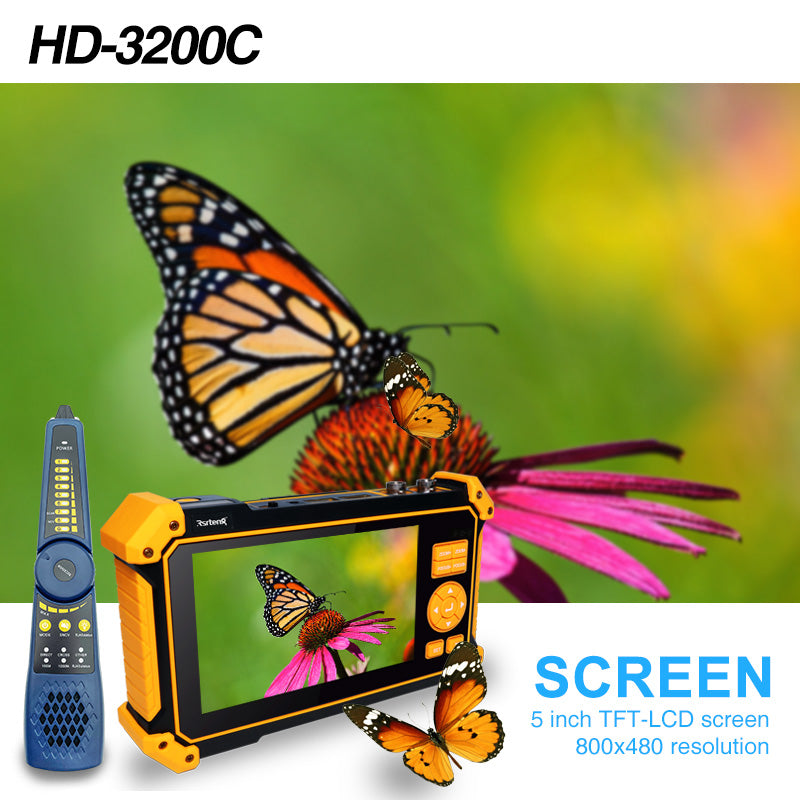

5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution |
|
12MP 4K IP camera test |
Doesn't support IP network camera test. |
|
HD Coaxial test |
8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu |
|
8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu |
|
|
8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu |
|
|
8MP EX-SDI, HD-SDI, 3G-SDI camera test: UTC control / call OSD menu |
|
|
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu |
|
|
CVBS camera test |
1 channel BNC input, NTSC/PAL (Auto adapt) |
|
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
|
HDMI |

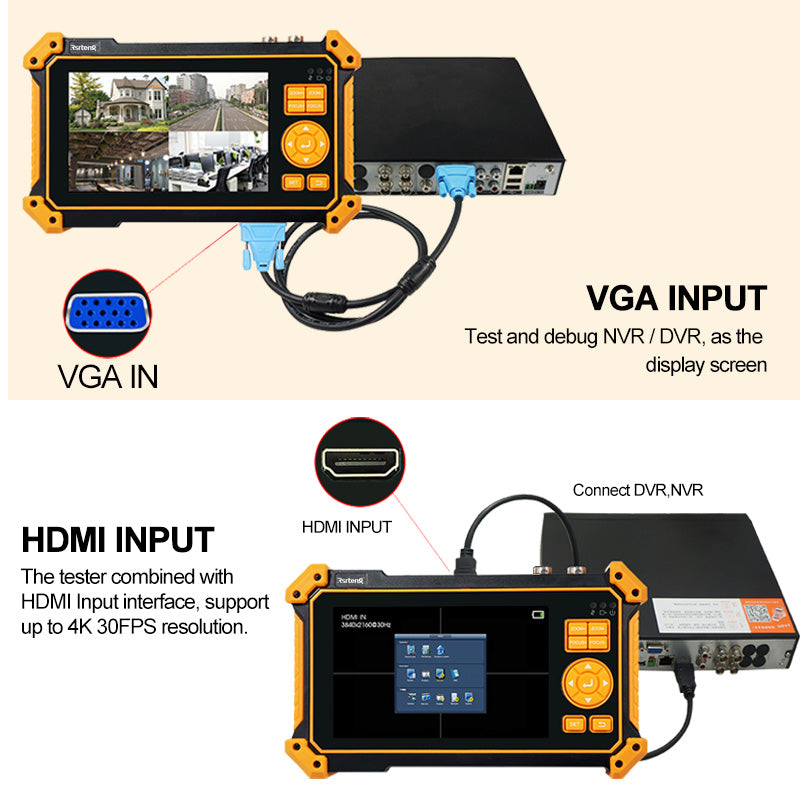

HDMI input: 1 ch HDMI input, support max 4K 30FPS. The resolution asfollow: 4K_3840x2160/2K_2560x1440P/1920×1080P/1920×1080i /720×480P/720×576P/1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
|
HDMI output: N/A |
|
|
VGA |
1 ch VGA input, support max 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS. |
|
Cable test |
Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time |
|
UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. |
|
|
Tester Play |
N/A |
|
Network test |
N/A |
|
Wi-Fi |
N/A |
|
Audio test |
1 channel audio signal input, test whether sound normal. |
|
Power |
Input: DC 5V/1A input, micro USB port |
|
DC output: DC12V/1A power output, supply temporarily power for the camera DC5V/1A power output, supply temporarily power for the home camera and phone. |
|
|

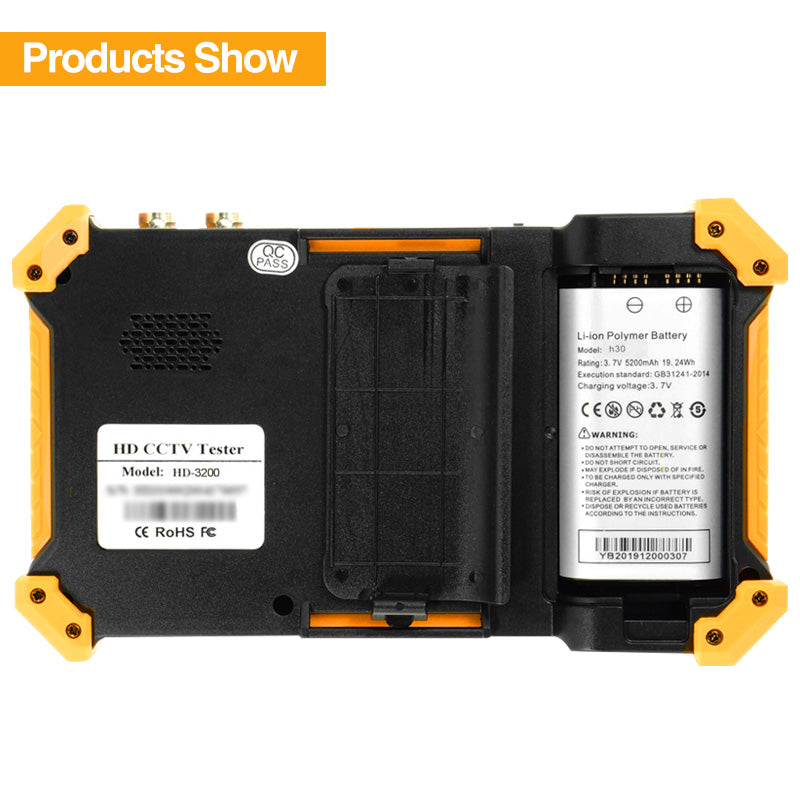

Battery |
Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h |
|
Rechargeable |
After charging 3-4 hours, normal working time 5-8 hours |
|
OS |
Self-developed operating system (based on Linux) |
|
USB port |
1ch, support reading USB disk and 5V power output |
|
TF card slot |
N/A |
|
Menu language |
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc |
|
Auto off |
1 to 30 (mins) |
|
Work Temperature |
-10℃ to +50℃ (+14℉ to +122℉) |
|
Work Humidity |
30% to 90% |
|

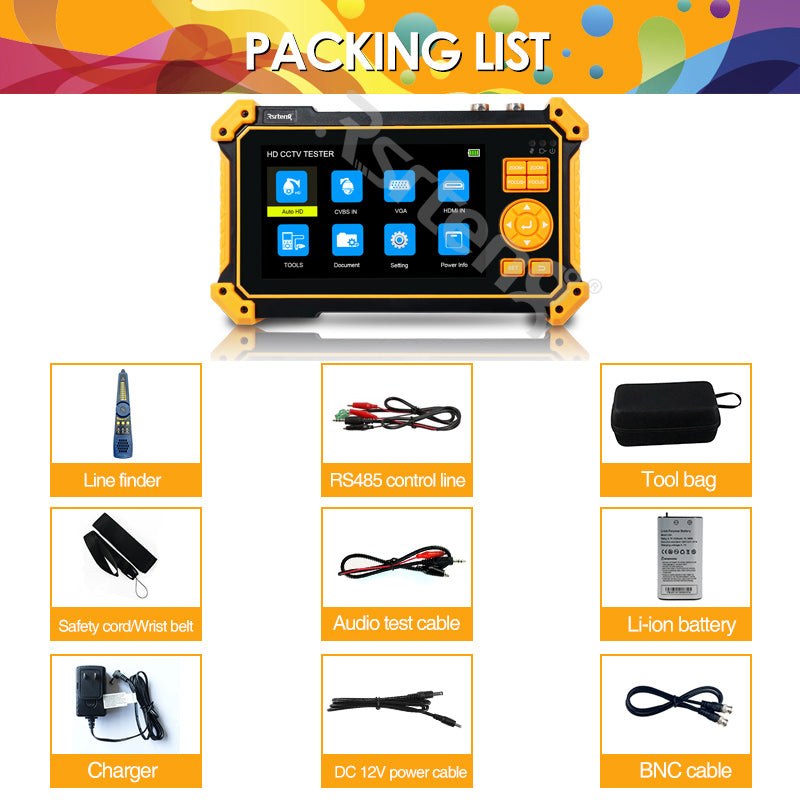

Package includes |
1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband; 1x User manual |
|
Dimension |
Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) Tester:183x110x36.5mm(7.2x4.33x1.44inch) |
|
Weight |
Package weight:1.05kg(2.31lbs) Tester net weight: 0.4kg(0.88lb) |
