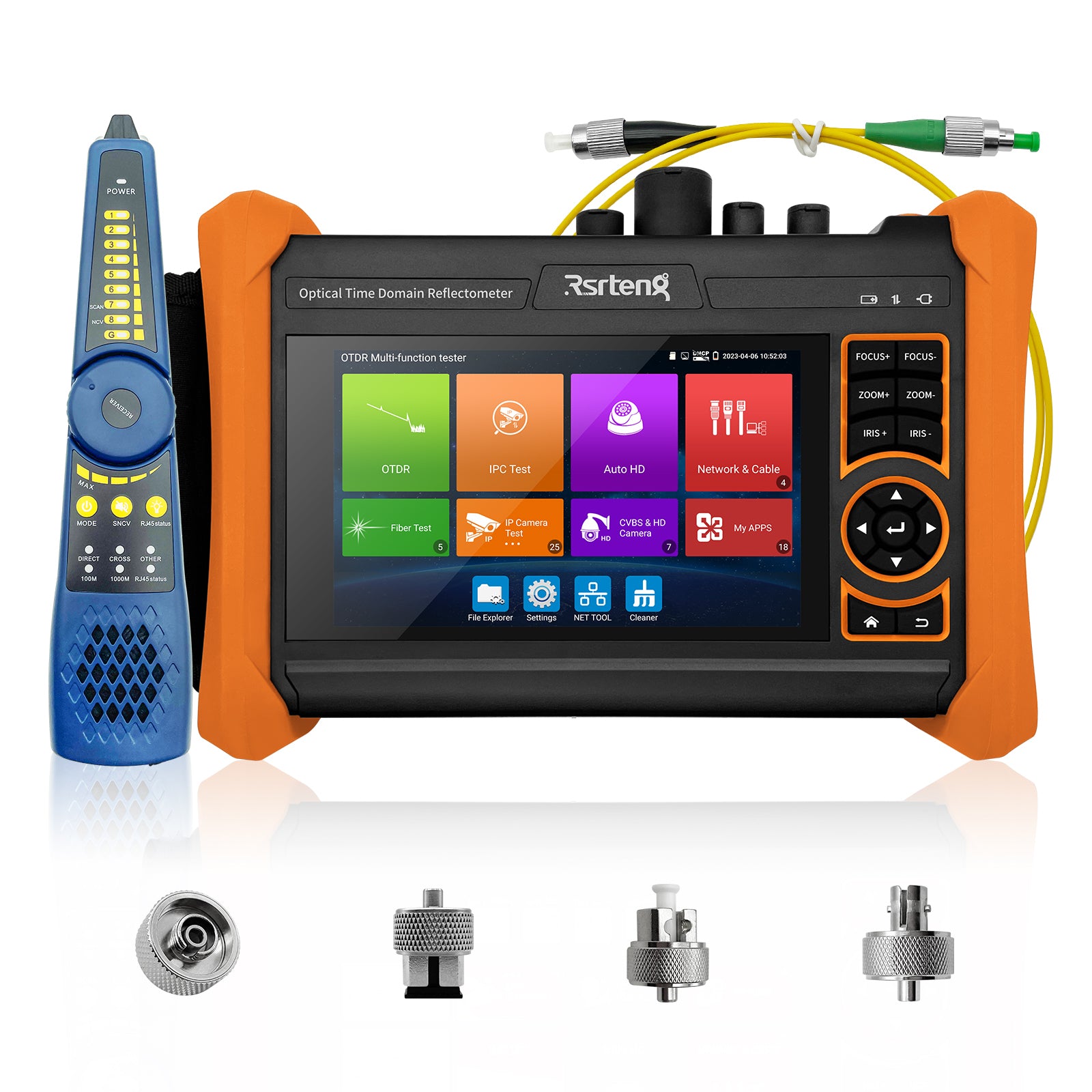

Rsrteng RSO-6510 Multi-function OTDR. It is an essential tool for fiber length, network and camera testing. Widely used in the maintenance, construction and monitoring of cable line. It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. As well, built in camera tester for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. If taking the all in one OTDR, it will make working conditions safer and increasing productivity.

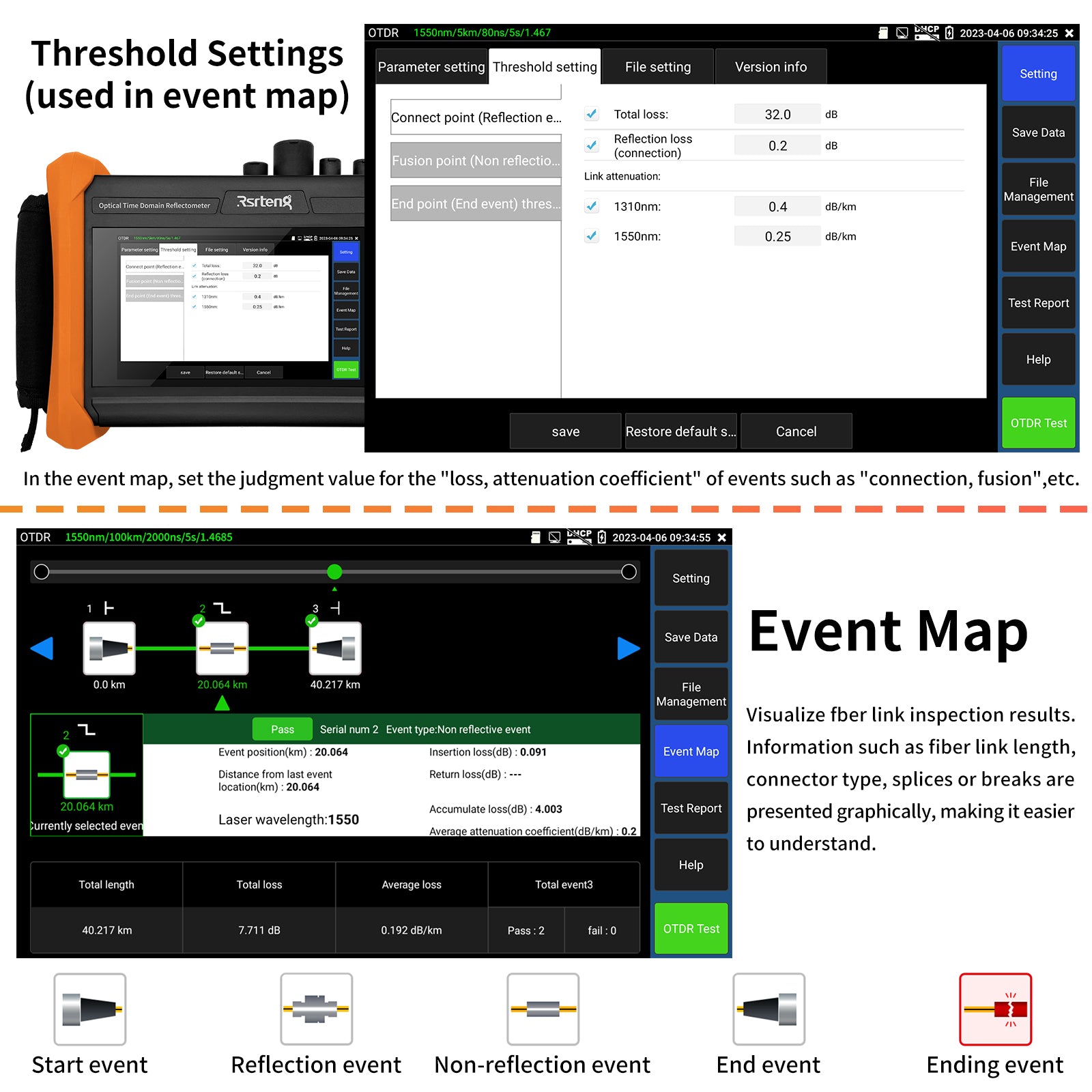

RSO-6510 OTDR adopt 5.4 inch IPS touch screen, it provides wavelength of 1310/1550nm and dynamic range of 28/26dB,the max test distance 150km. It can analyzes the curve automatially,touch screen zoom or move curves operation. So it makes the operation of measuring various parameters of the optical fiber becomes simple and fast. Support Event Map, LS OPM VFL OLS, 4K coaxial/CVBS camera test, cable test, network test and other camera test tools,dual Gigabit Ethernet 10/100/1000M Ports,2.4Ghz WiFi(Not 5G),8GB TF card,POE,RS485,HDMI input,VGA input,audio I/O functions to meet various test needs in different occasions. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM.
Note: This model doesn't support live test.
Parameters
|
Brand |
Rsrteng |
|
Model |
RSO-6510 1310/1550nm 28/26dB |
|
Display |

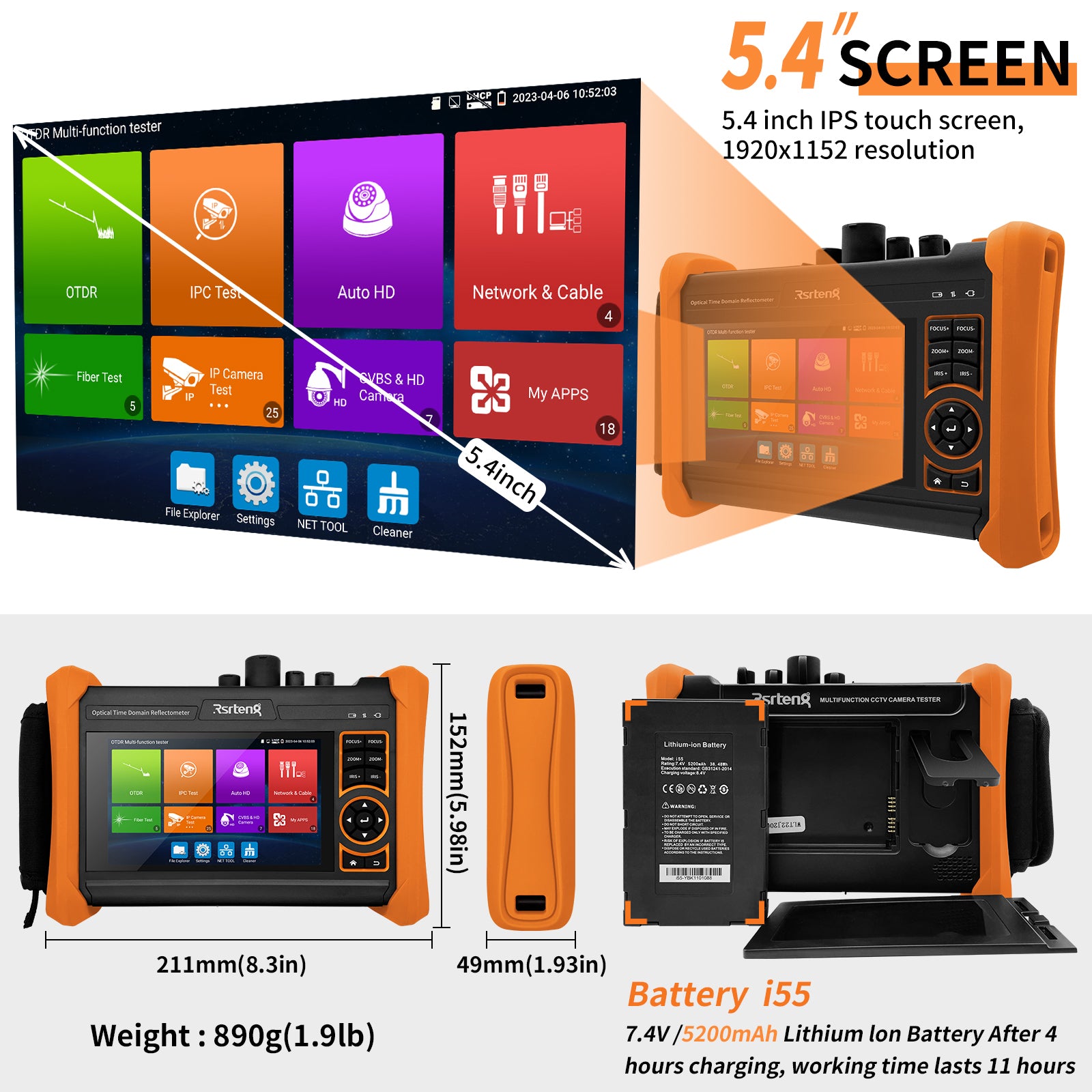

5.4 inch IPS touch screen,1920x1152 resolution |
|
Operating system |
Android 10.0 |
|
CPU/RAM/FLASH |
CPU 1.2GHz 4-core, RAM(DDR) 1GB, FLASH(eMMC) 8GB |
|
Network Port |
Dual Gigabit Ethernet ports, 10/100/1000Mbps auto adapt |
|
WIFI |
Built in 2.4G WIFI, speed 150Mbps |
|
IP camera test |

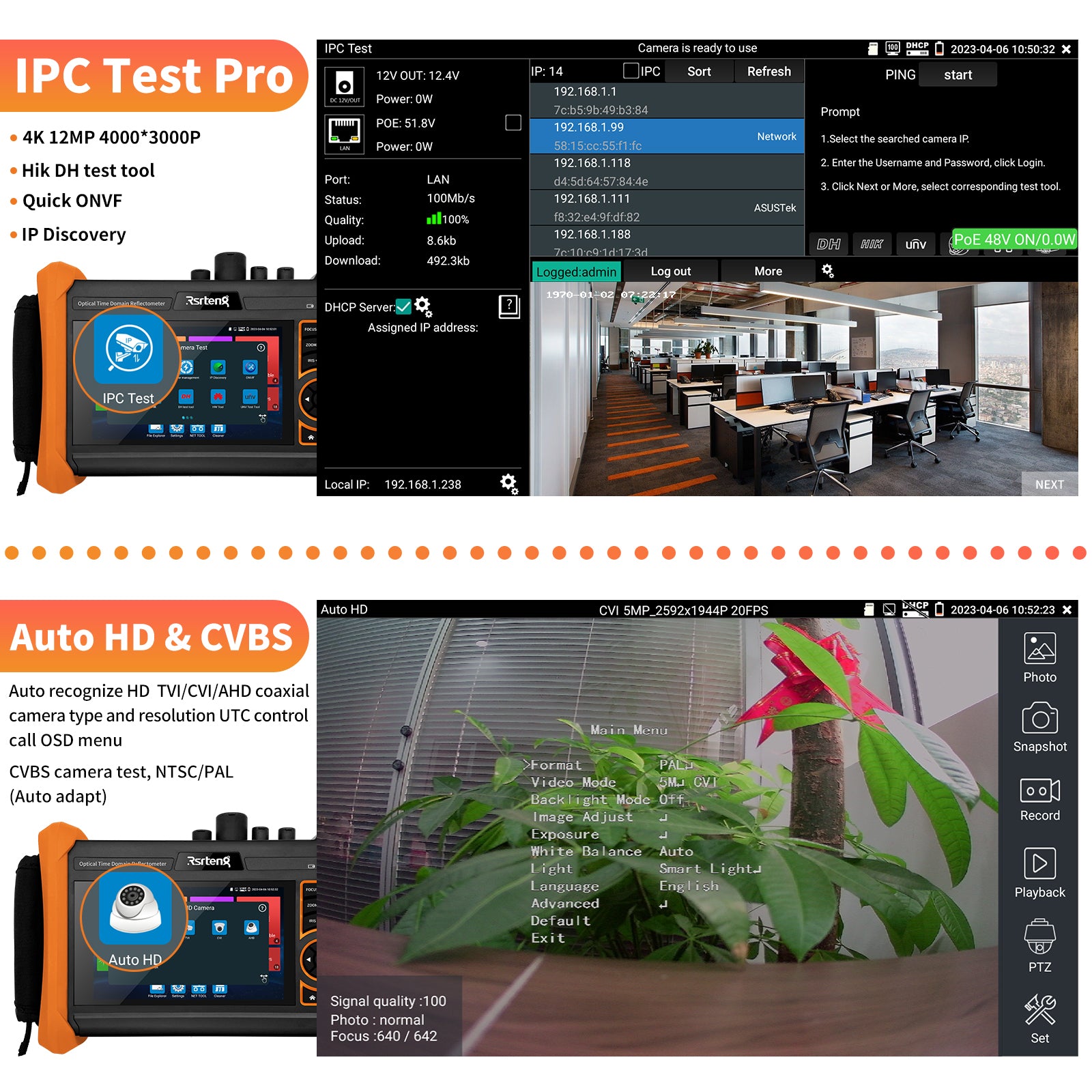

4K 12MP 4000x3000P video display via mainstream. For Onvif camera, view video, modify IP, modify channel names, support create test reports. |
|
IP discovery |
Auto-scan the whole network segment IP address |
|
HD coaxial camera test |
TVI 5.0 camera test, max 4K 8MP 3840x2160P 12.5/15FPS, UTC control/call OSD menu, support coaxial audio |
|
CVBS camera test |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
|
Zoom Image |
4x zoom, enlarge image, screen snapshot, save, view and record and playback |
|
RJ45 cable TDR test |

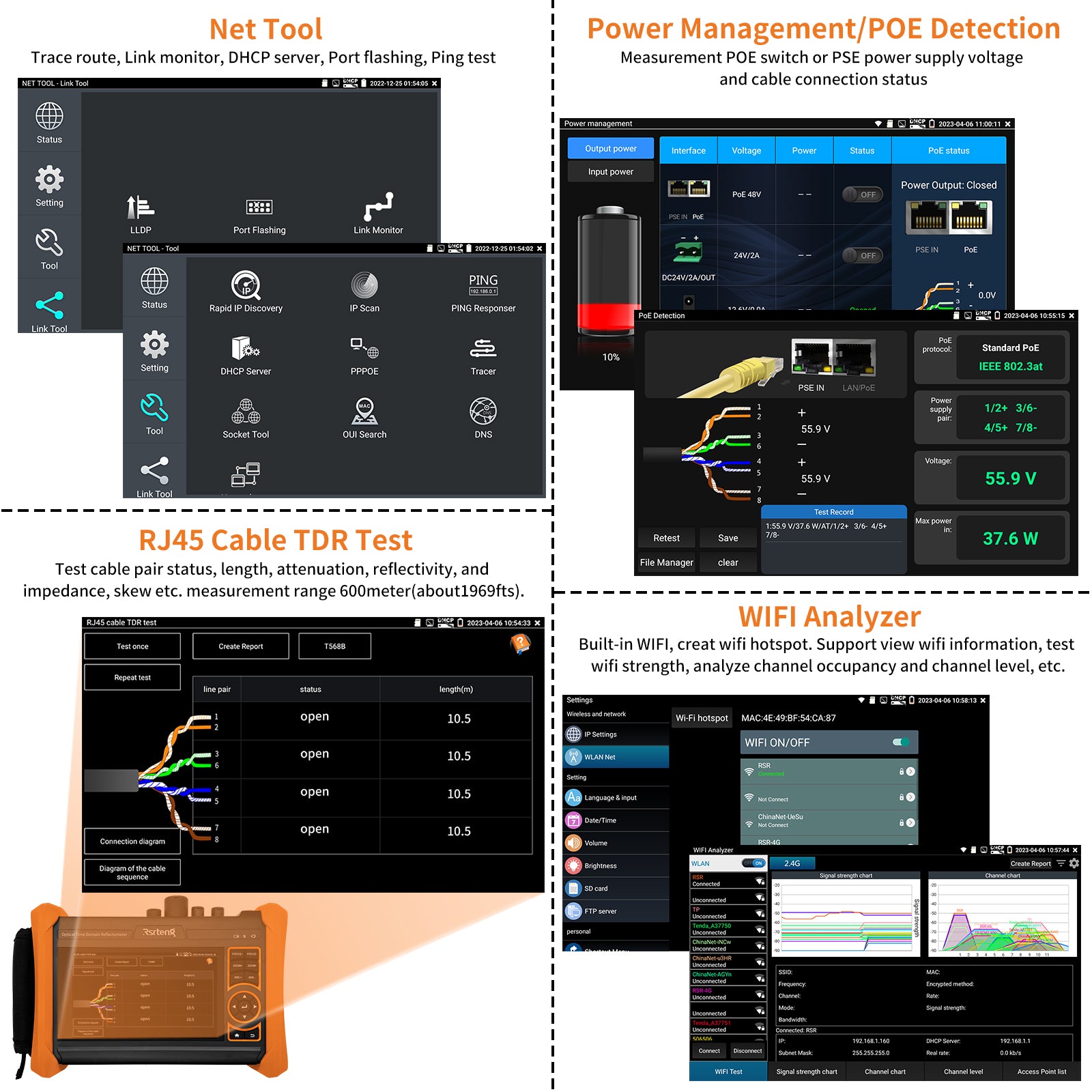

Test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 600meter(about1969fts). |
|
HDMI input |

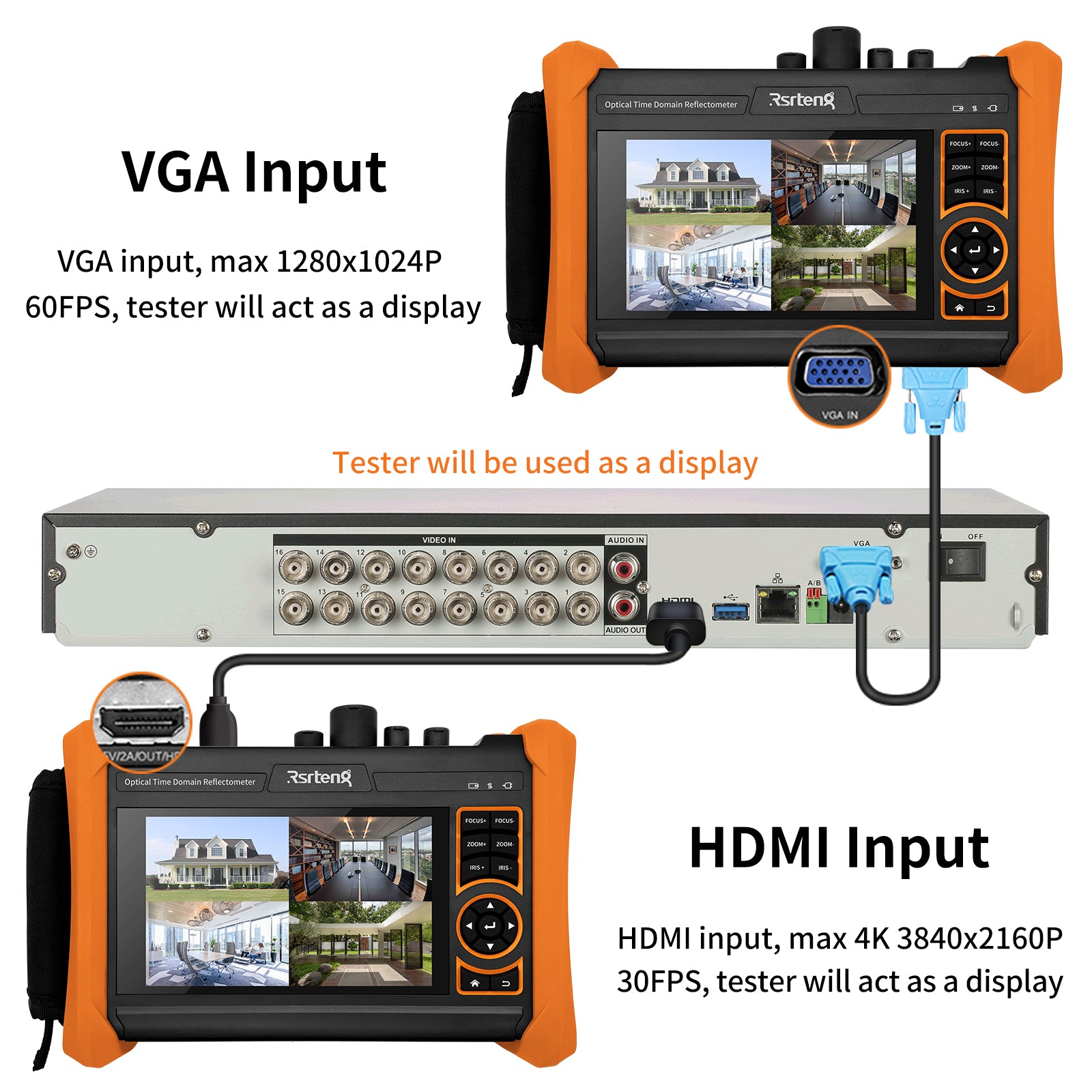

1 channel HDMI input, support max 4K 3840x2160P 30FPS |
|
VGA input |
1 channel VGA input, support max 1280x1024P 60FPS |
|
Power output |
48V PoE(IEEE802.3af/at), DC24V/2A, DC12V/3A, 5V/2A power output |
|
UTP cable test |
Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable |
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
|
Digital Cable tracer |
Cable tracer: |
|
PoE Voltage test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|

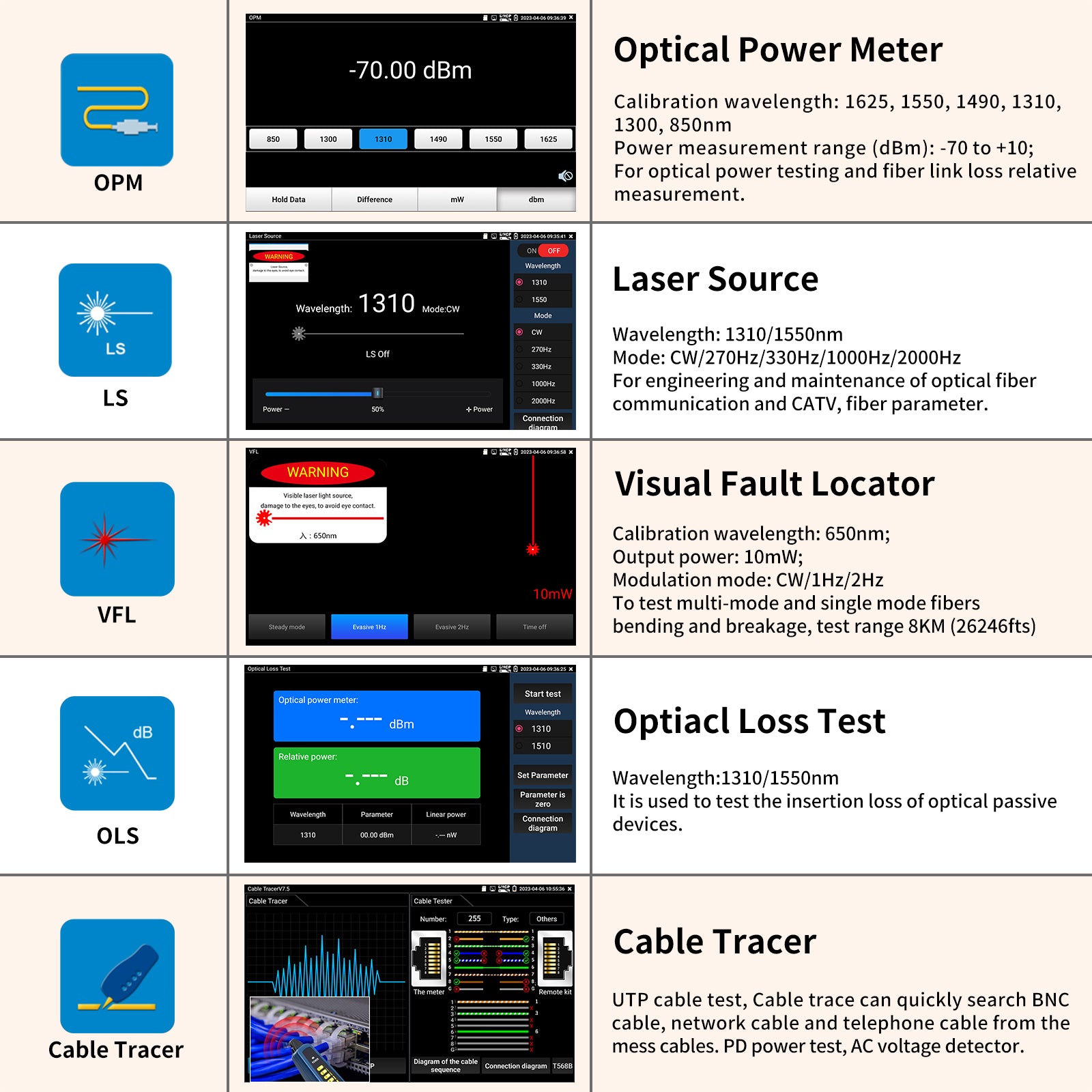

Visual fault locator |
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM (26246fts) |
|
Optical power meter |
Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm, measurement range: -70 to +10 dBm, for optical power testing and Fiber link loss relative measurement |
|
External power supply |
DC12V/2A |
|
Battery |
Built-in 7.4V Lithium polymer battery, 5200mAh |
|
Rechargeable |
After charging 2.5 hours, normal working time 11 hours |
|
Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc |
|
Auto off |
5 to 30 (mins) |
|
Working Temperature |
-10℃ to +50℃ (14℉ to 122℉) |
|
Working Humidity |
30% to 90% |
|
Tester Dimension/Weight |
211x152x49mm / 860g (8.3x5.98x1.93inch / 1.9lbs) |
|

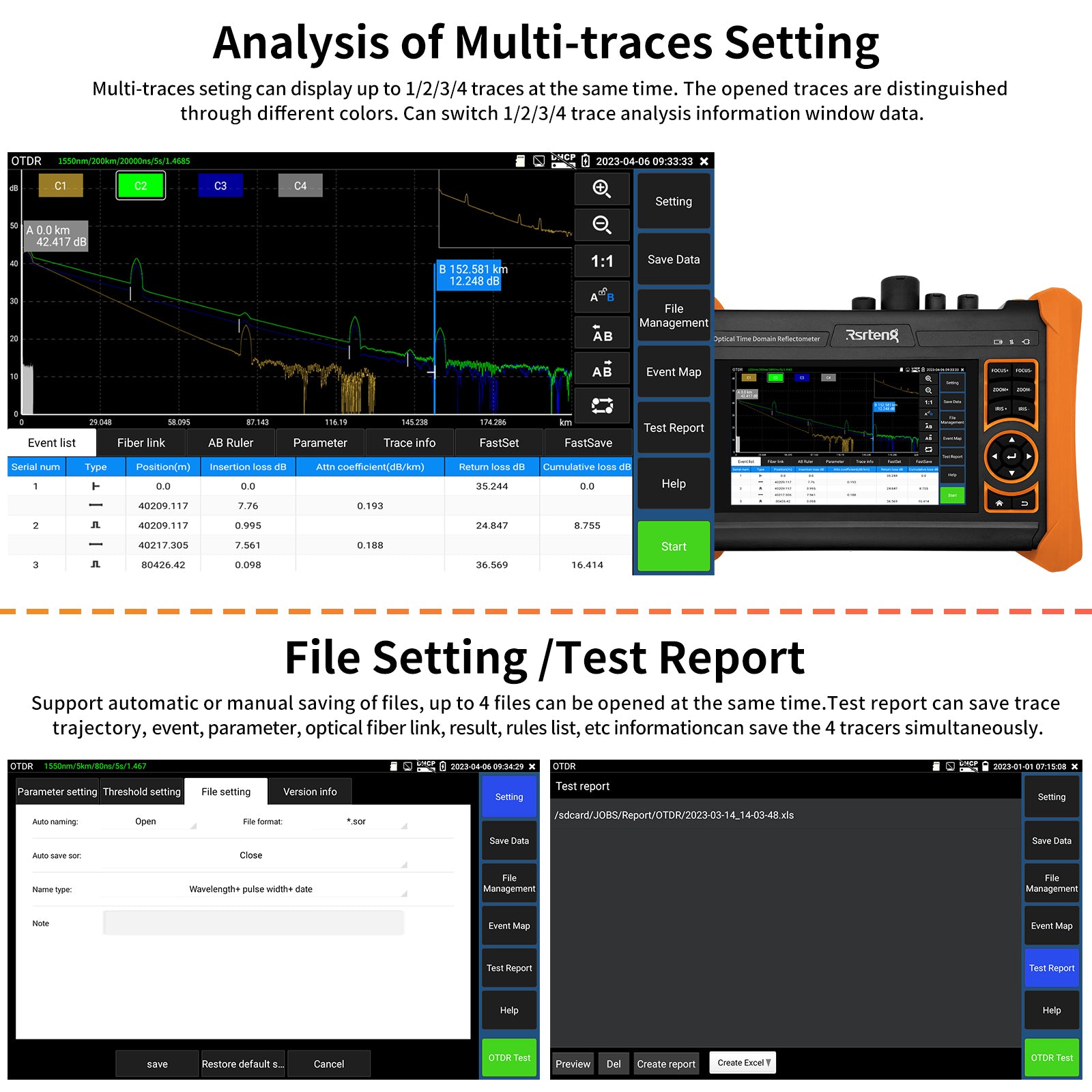

OTDR Technical Specifications |
|
|
Wavelength (nm) |
1310/1550nm |
|
Dynamic range (dB)(1) |
28/26dB |
|
Support detect optical signal |
Support (When an optical signal is detected in the fiber, a prompt will pop up and the test will be disabled to protect the device) |
|
Support detect optical signal and testing (Live Test) |
N/A |
|
Pulse width (ns) |

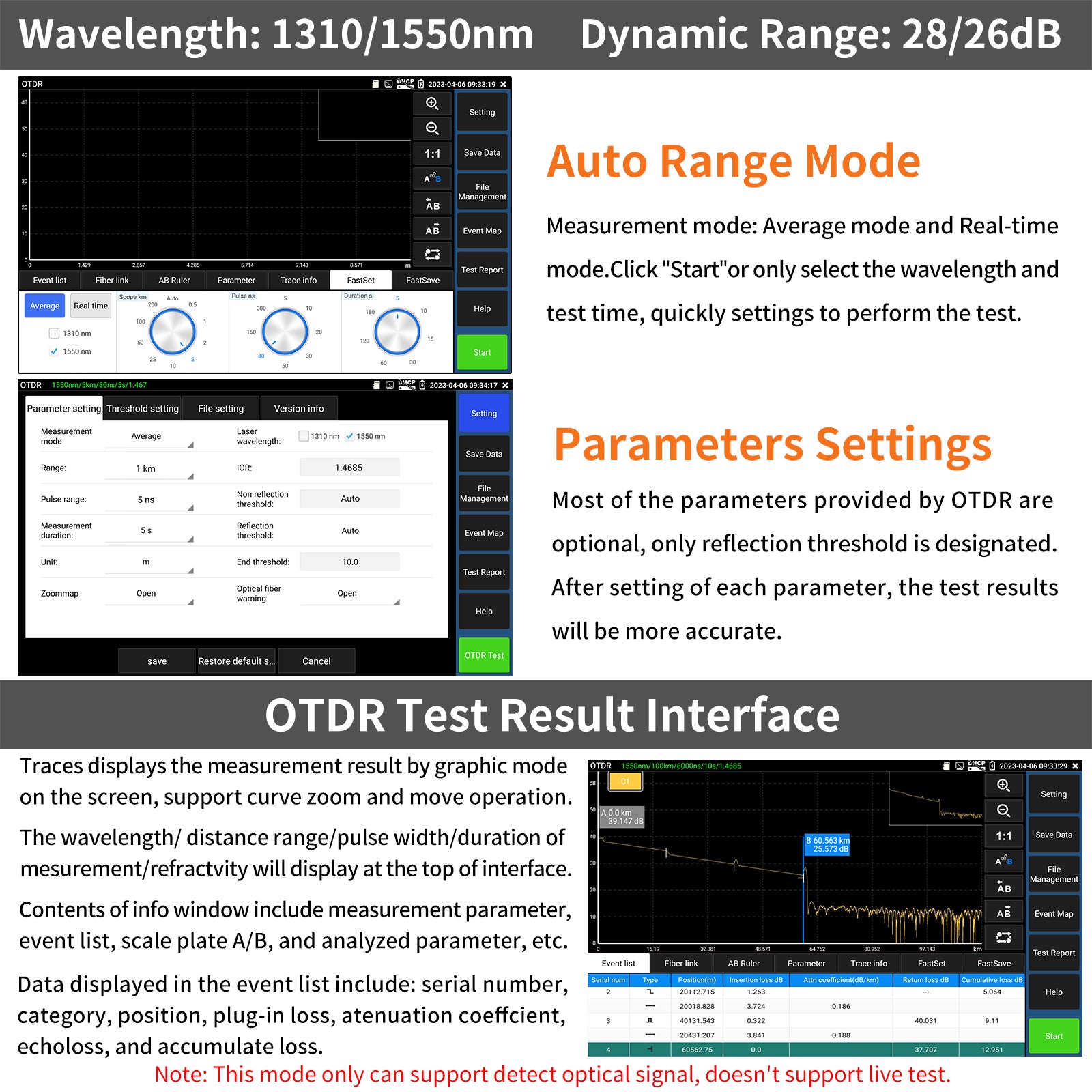

5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000, 10000, 20000 |
|
Measurement range |
≤150 Km |
|
Event blind zone (m)(2) |
≤2m |
|
Attenuation blind zone (m)(3) |
≤10m |
|
Linearity dB/dB) |
±0.05 dB/dB |
|
Loss threshold (dB) |
0.05 |
|
Loss resolution ratio (dB) |
0.01 |
|
Minimum distance resolution |
0.05 |
|
Sampling point |
32-128K |
|
Distance uncertainty (m) |
±(1 m + 5×10-5× distance + sampling interval) |
|
Distance scope (km) |
0.5、1、2、5、10、25、50、100、200 |
|
Typical real-time refreshing duration |
1s |
|
File format |
SOR standard format/PDF/EXCEL |
|
Measurement duration |
5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
|
Storage |
FLASH (EMMC)8G + TF card |
|

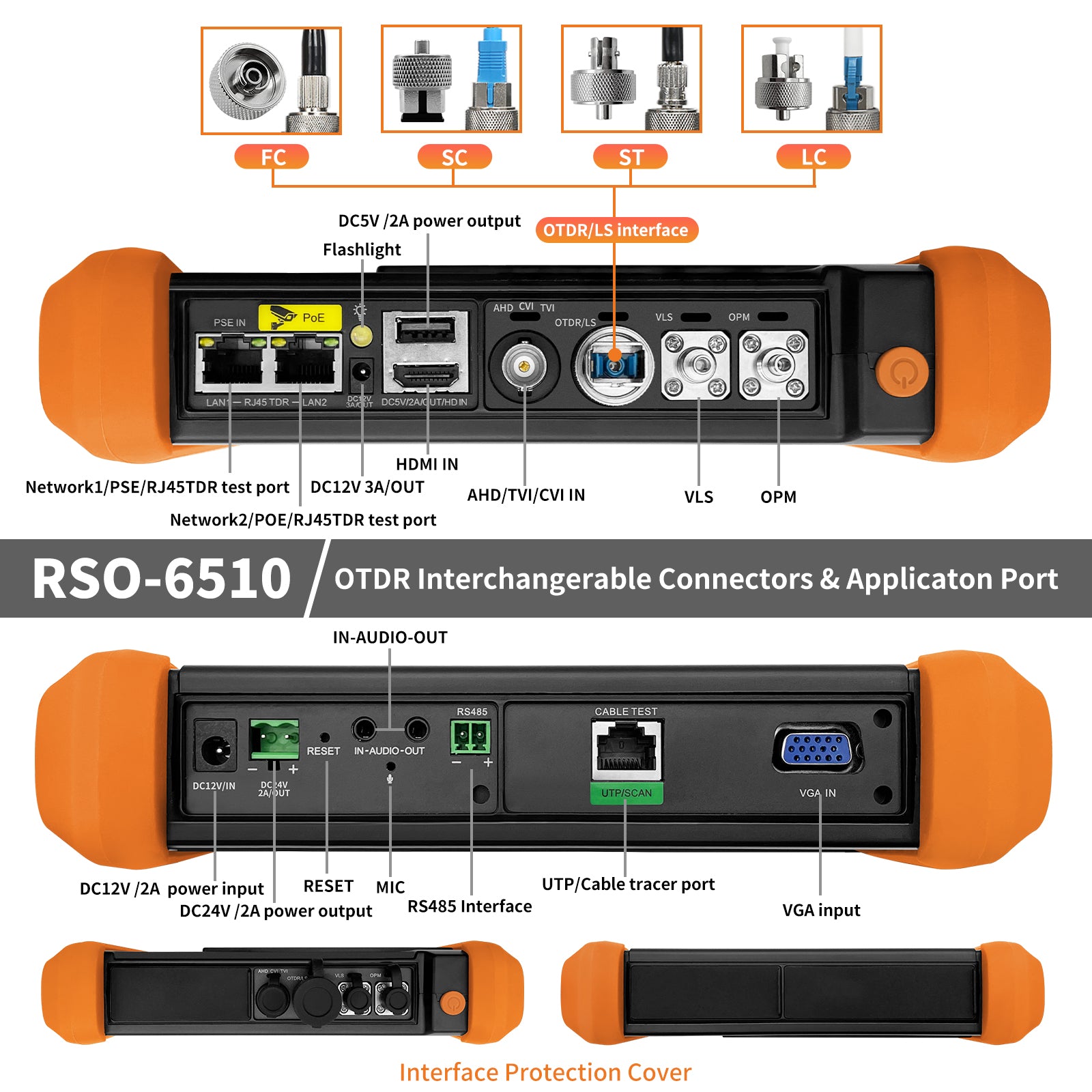

Interface type |
SC/FC-UPC |
|
